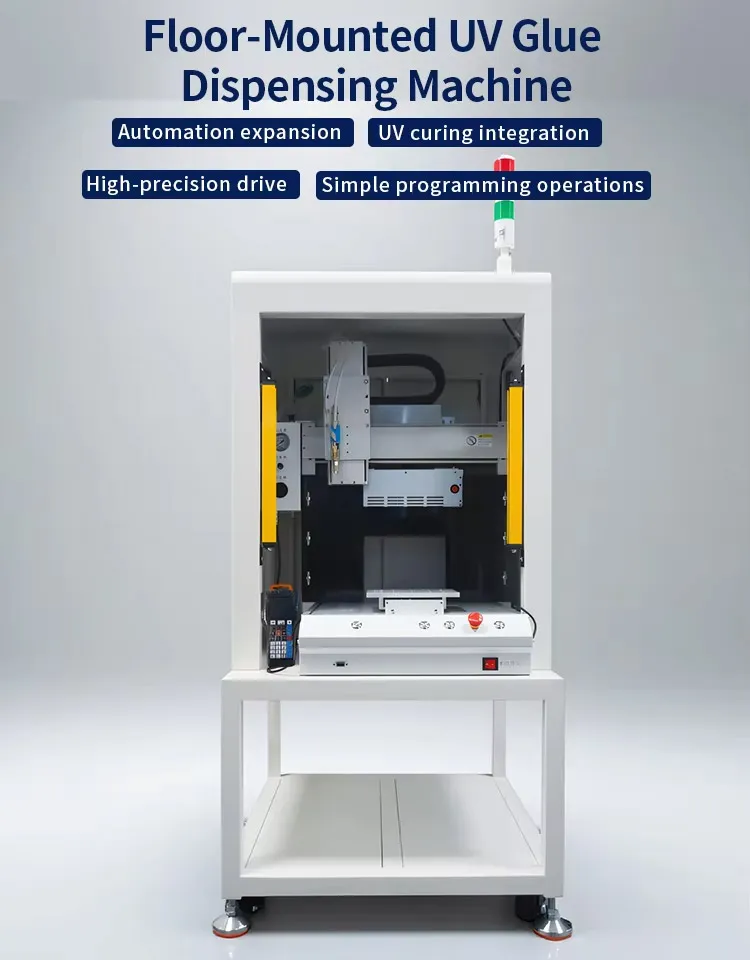

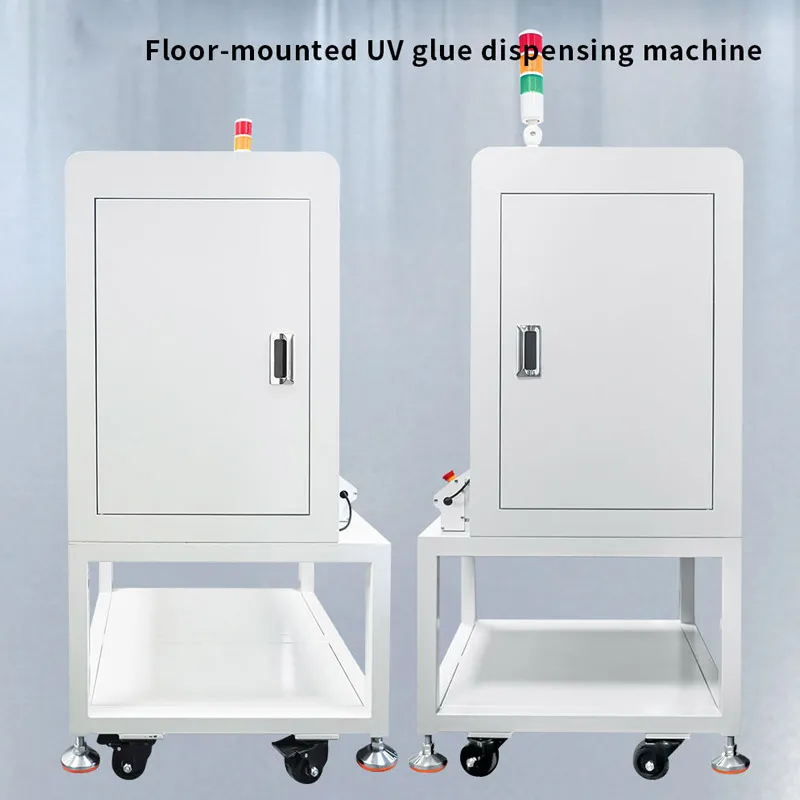

3-Axis UV Glue Dispensing Machine

Home / Automatic Glue Dispenser Machine / 3-Axis UV Glue Dispensing Machine
  • uv glue dispensing machine
  • uv glue dispenser
  • 3 axis uv glue dispensing machine
  • uv glue dispensing machine
  • uv glue dispenser
  • 3 axis uv glue dispensing machine
    1.The glue dispensing machine is designed for precise and efficient dispensing of UV glue;
    2.Can set glue size, glue speed, dispensing time, stopping glue time. Stable glue exudation without glue leaking and dripping;
    3.Drawing point, line, surface, arc, circle, irregular curve continuous complement and triaxial linkage;
    4.The UV glue dispenser suitable for different occations ,A variety of dispensing needles,syringes, dispensing ,valves and controllers,Meet different requirement;
    5.Simply replace the template and accessories to be compatible with other products;
    6.Dual guide rail structure, wear-resistant and long life;
    7.Operation with handheld LCD panel teach box, which is easy to program and learn;
    8.English panel, easy operation.

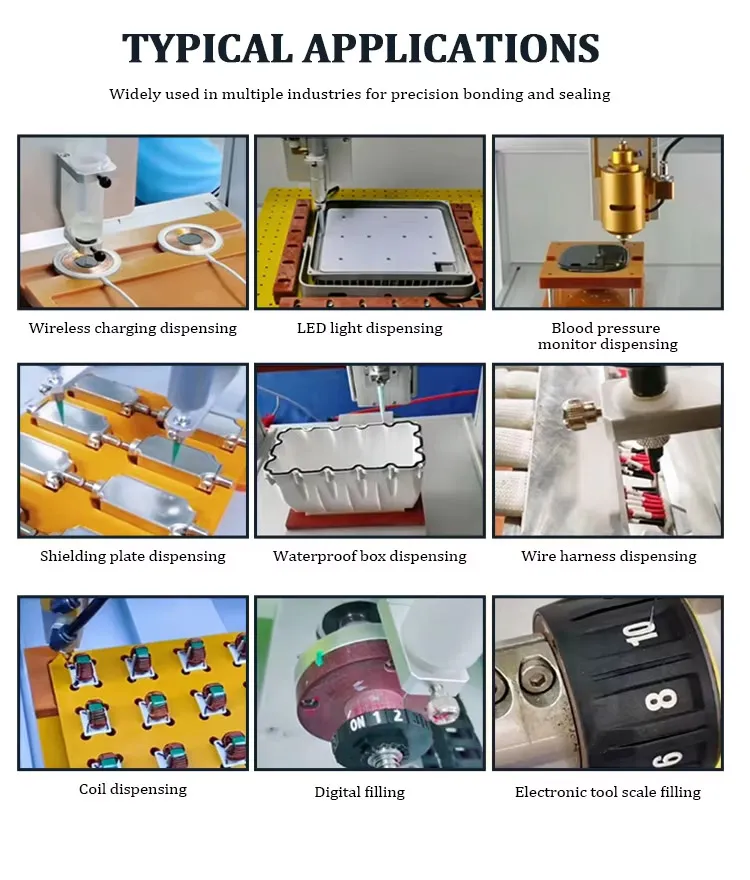

    This glue dispenser is suitable for high-efficiency, precise dispensing across a wide range of applications. It can handle electronics and components such as sensors, relays, power adapters, circuit boards, mobile phone and laptop batteries, speakers, ICs, and optical devices. It is also suitable for household appliances, automotive parts, mechanical seals, and other products requiring glue bonding, coating, sealing, or quantitative liquid filling.

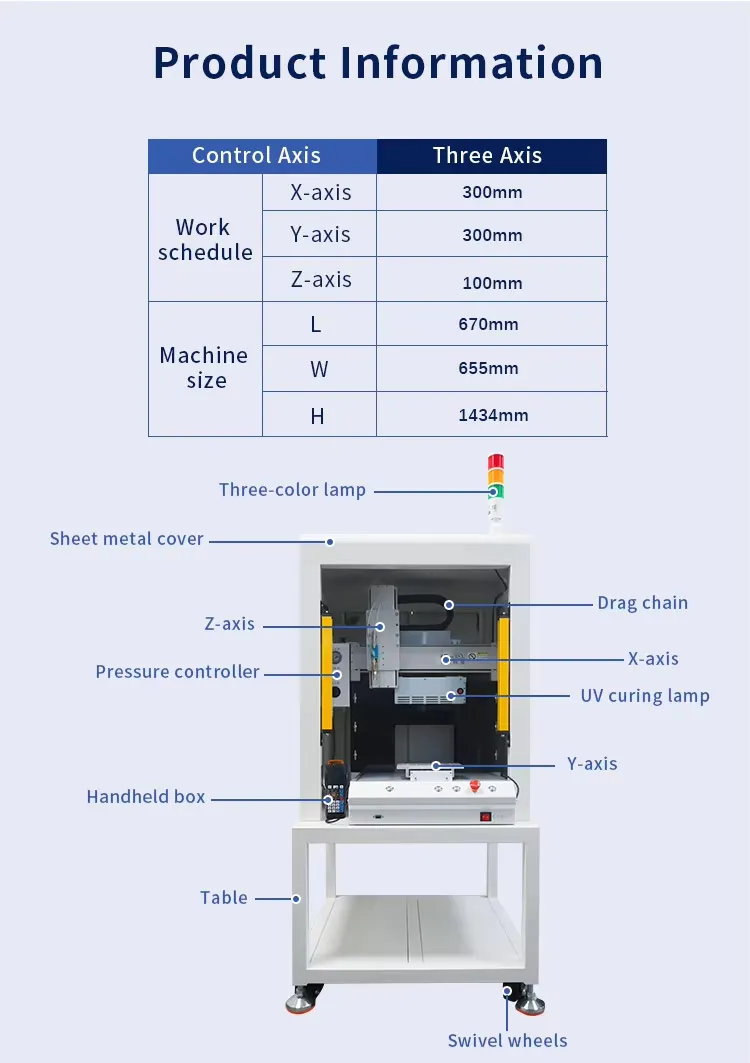

Parameters

Model number XHD-FUV331

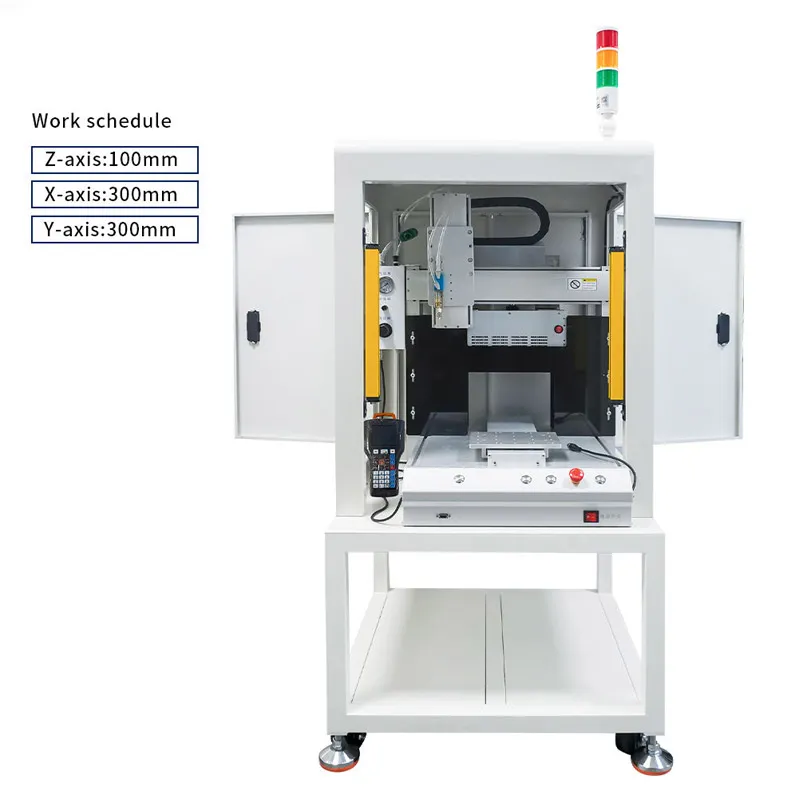

Dispensing Range X/Y/Z (mm) 300/300/100 (Customizable)
Programming Mode Teaching programming or graphic import

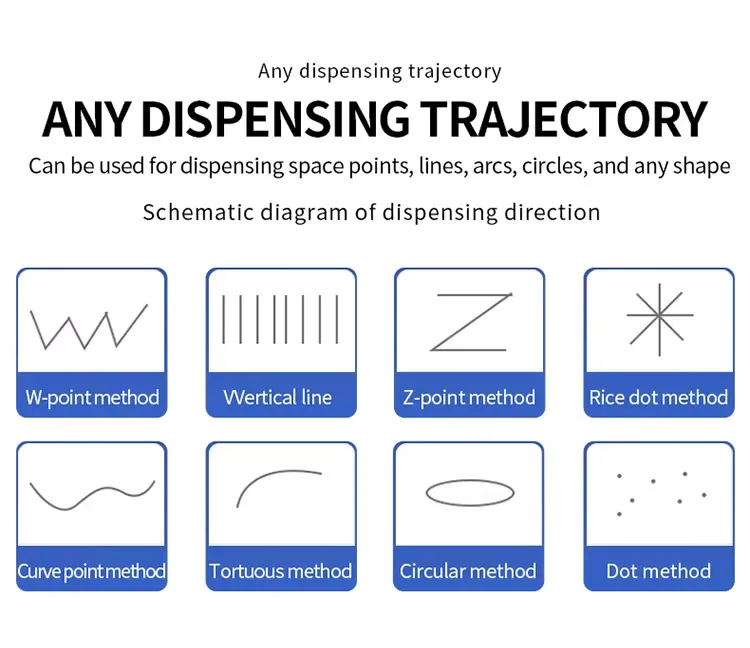

Movable Graphic Trajectory Points, lines, arcs, full circles, curves, polylines, helices, ellipses

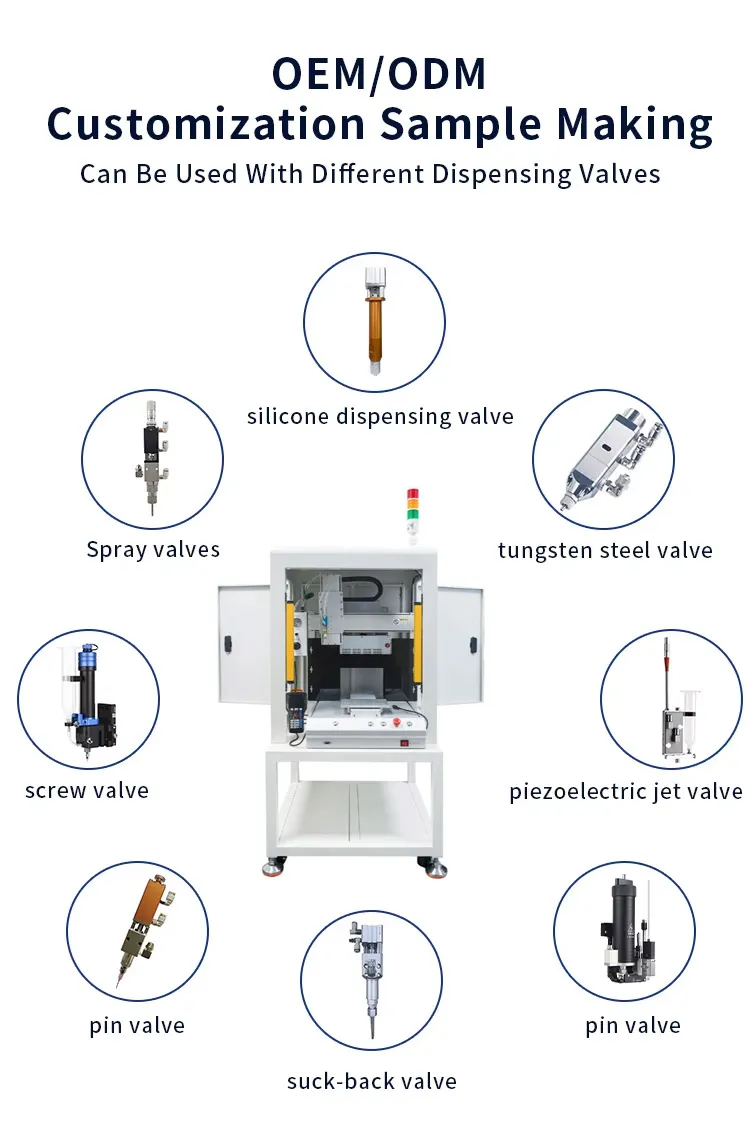

Dispensing Valve Can be compatible with different types of dispensing valves
Dispensing Barrel 30ml / 50ml / 300ml / 960ml
Equipment Repeatability Accuracy ±0.02mm
Minimum Dispensing Volume 0.01ml
Dispensing Frequency 5 times/S
Dispensing Accuracy Error 2%
Maximum load 10KG
Moving Speed (mm/sec) 0-500
Power 800W
Number of Program Records Group 999
Display Mode LCD Instruction box
Motor System Leadshine
Actuator Leadshine
Guide Rail Three-Circle
Photoelectric Switch Omron
Transmission Mode Elatech Synchronous belt
Input Power Supply Voltage AC110V~220V
External Control Interface RS232
Weight 85KG

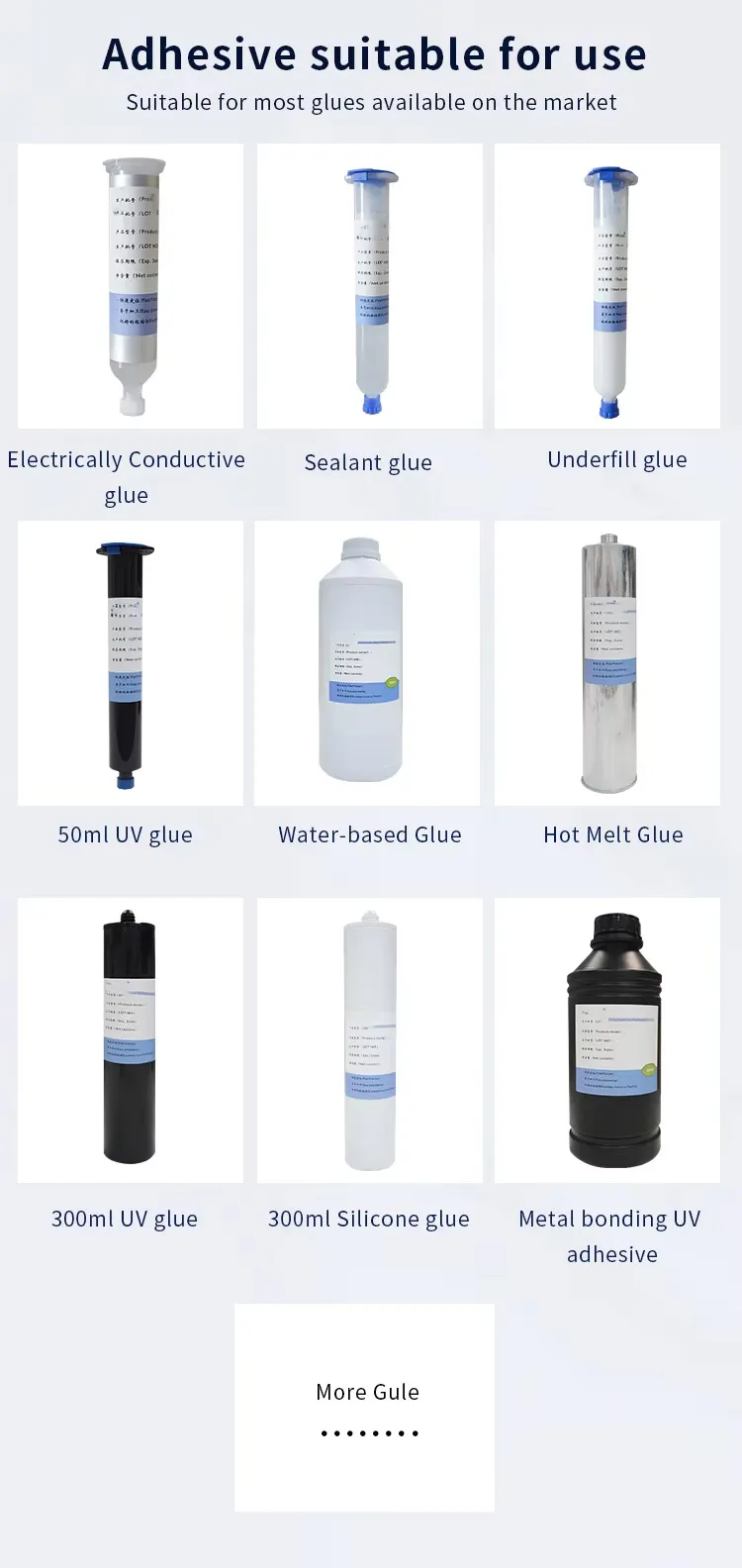

uv glue dispenseruv glue dispensing machineUV Adhesive Dispensing EquipmentAny dispensing trajectoryCustomizationAdhesive suitable for useApplications
