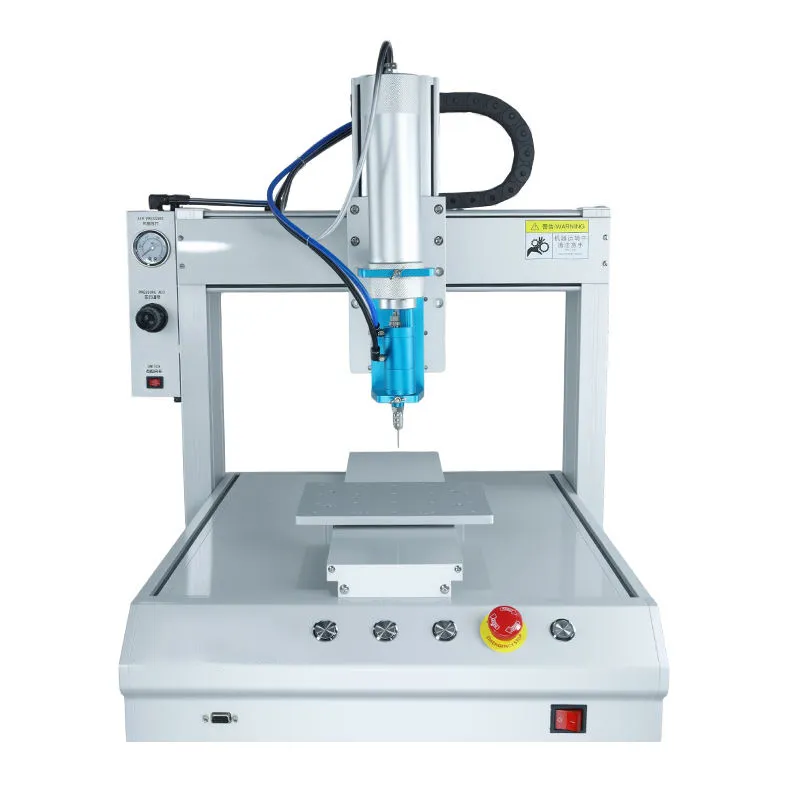

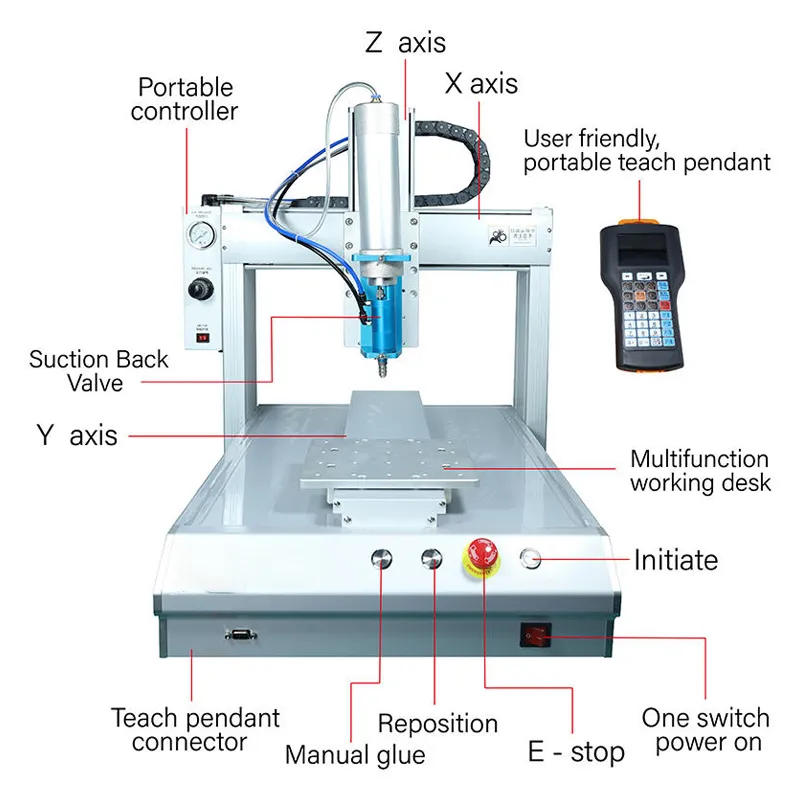

Desktop Automatic 3-Axis Hot Melt Glue Dispensing Machine with Single-Station

Home / Automatic Glue Dispenser Machine / Desktop Automatic 3-Axis Hot Melt Glue Dispensing Machine with Single-Station
  • hot melt glue dispenser machine
  • hot melt glue dispensing machine
  • hot glue dispensing machine
  • hot melt glue dispenser machine
  • hot melt glue dispensing machine
  • hot glue dispensing machine

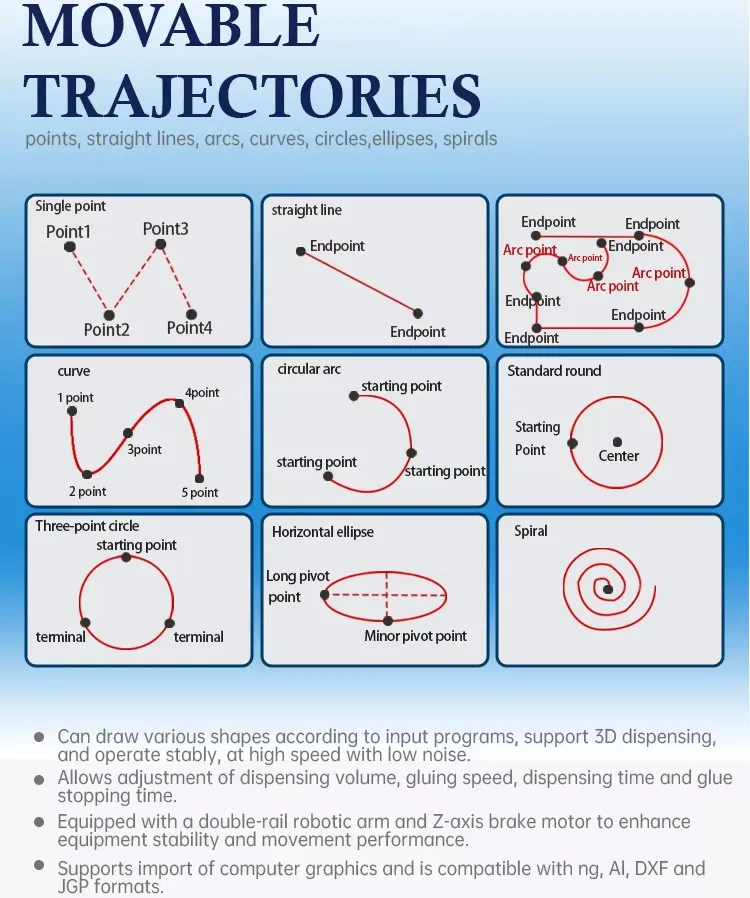

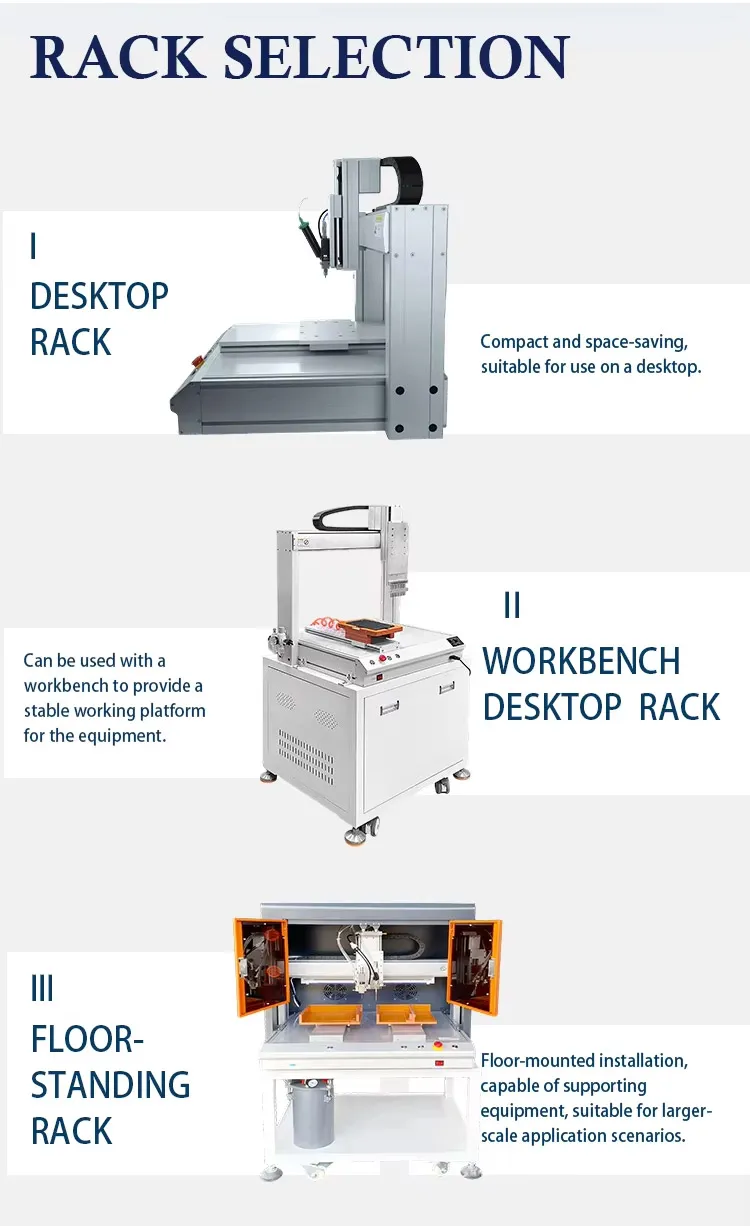

    This desktop automatic 3-axis glue dispensing machine, equipped with a single-station working platform(Customizable multi-station platform), offers rapid response, stable dispensing, high precision, and no stringing. Its dispensing path supports dotting, line drawing, surface coating, arcs, circles, and irregular continuous interpolation curves. It also includes advanced features such as array expansion, graphical preview, rotation, 3D ellipses, insertion of common circular libraries, and group editing. With fully automated dispensing operations, it is widely applicable, has a long service life, and helps save costs while improving production efficiency.

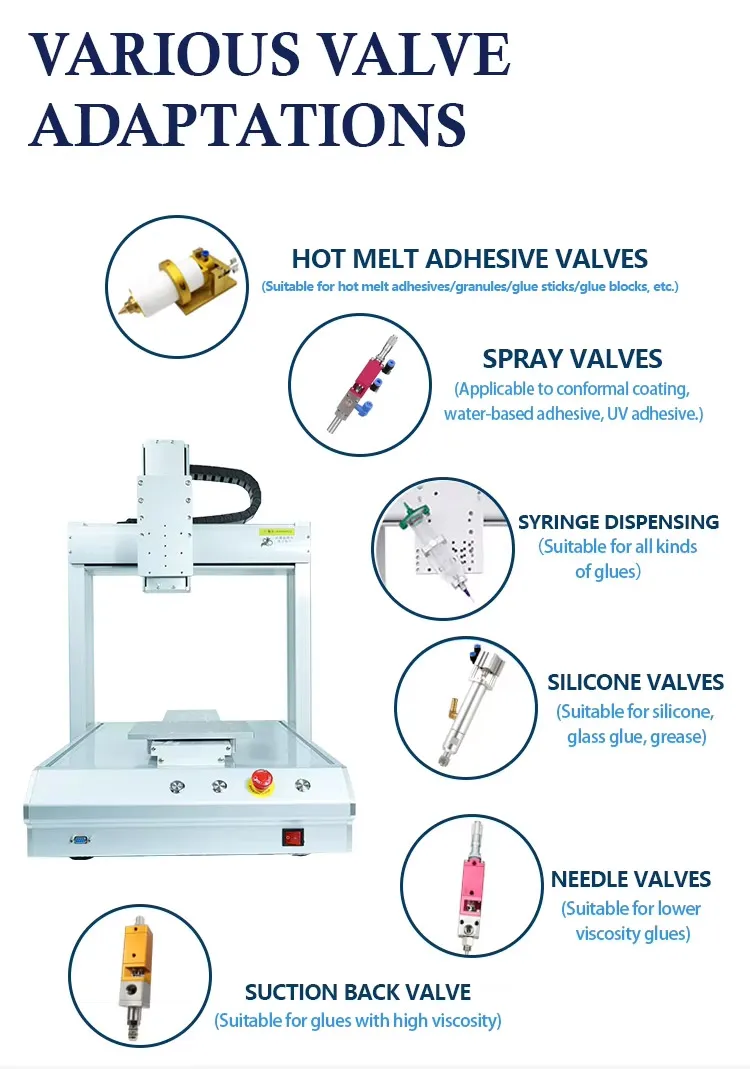

    The glue dispenser machine are compatible with a wide range of adhesives, such as hot glue, instant adhesives, epoxy resins, glass glue, yellow glue, AB glue,etc.‌ The selection of dispensing valves and the optimization of dispensing time programs must be tailored to the specific properties of each adhesive to achieve optimal performance. Customized solutions based on your requirements will yield the best results.(For any other questions, please feel free to contact us.)

Product Parameters

Model XHD-331

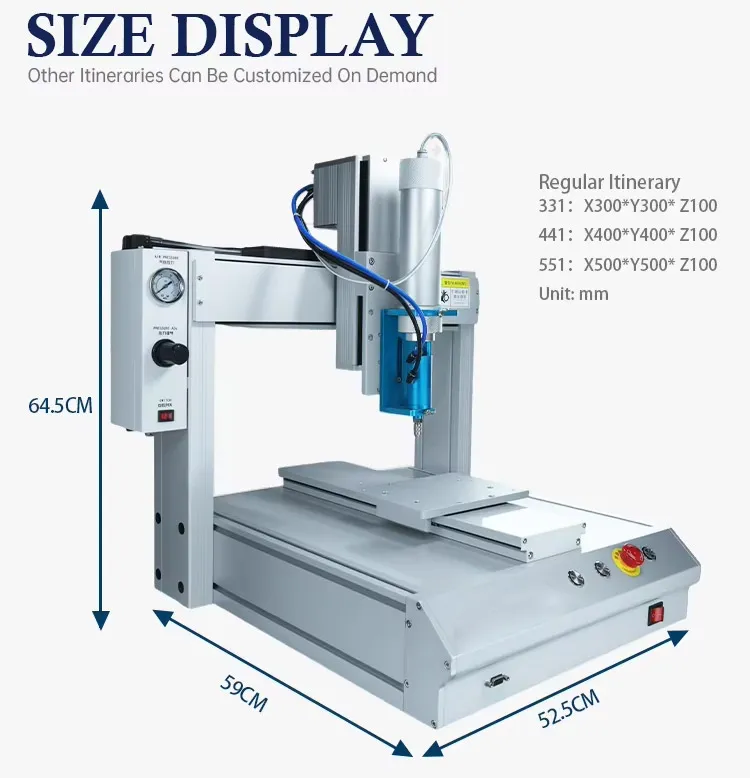

Dimensions 520*580*650mm
Weight 66Kg
Working Range 300 × 300 × 100 mm (Customizable)

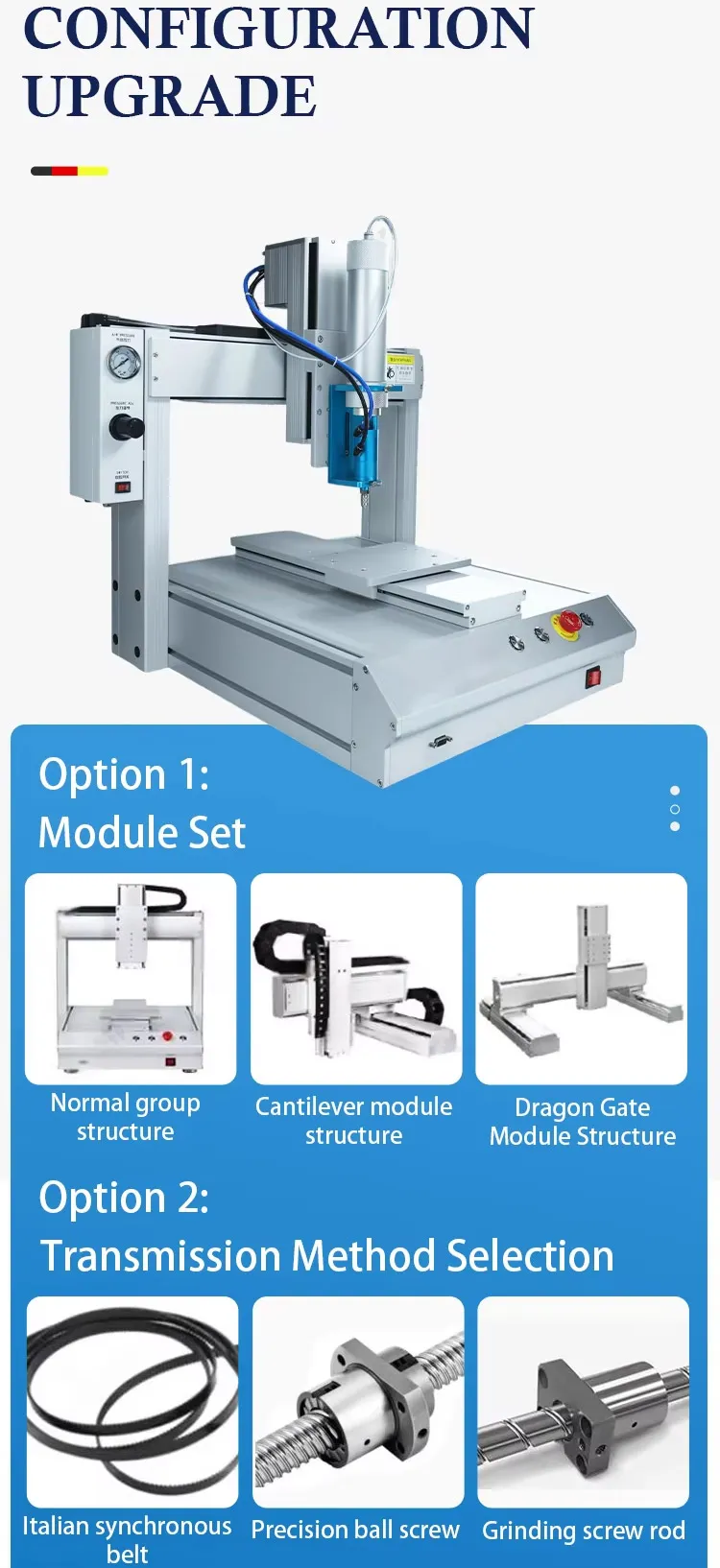

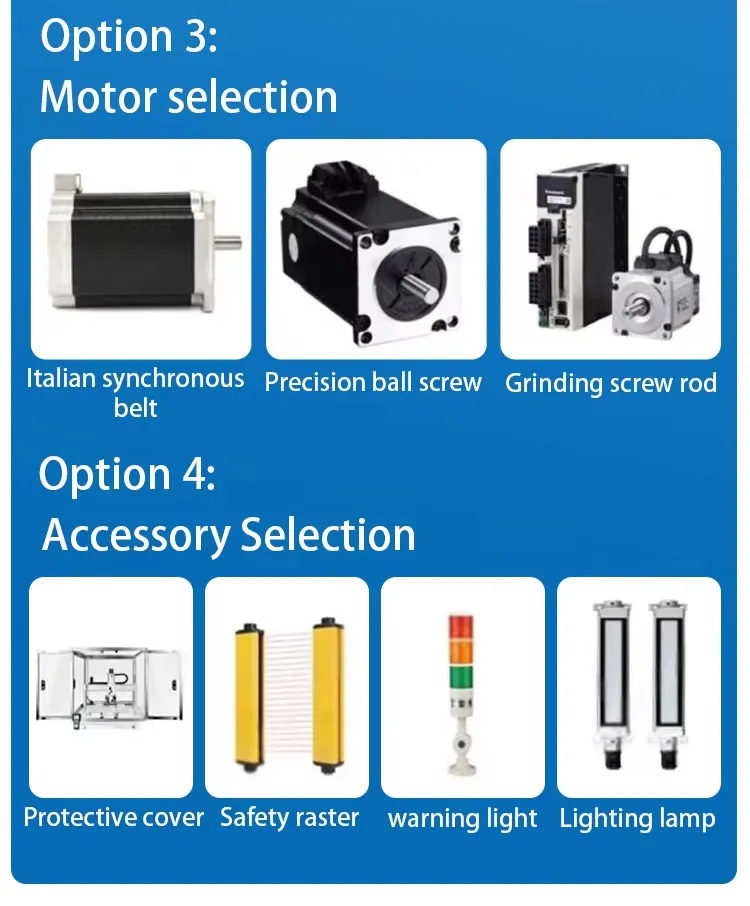

Driving Mode Stepper motor + synchronous belt (optional: servo motor + ball screw)
Valve Quantity 1
Valve Type Optional
Repeat Positioning Accuracy ±0.02 mm
Running Speed 0–600 mm/s
Number of Control Axes 3 Axis
Programming Mode Online programming & offline import
Input Voltage 220V, 50/60Hz
Total Power 2 kW
