Features:

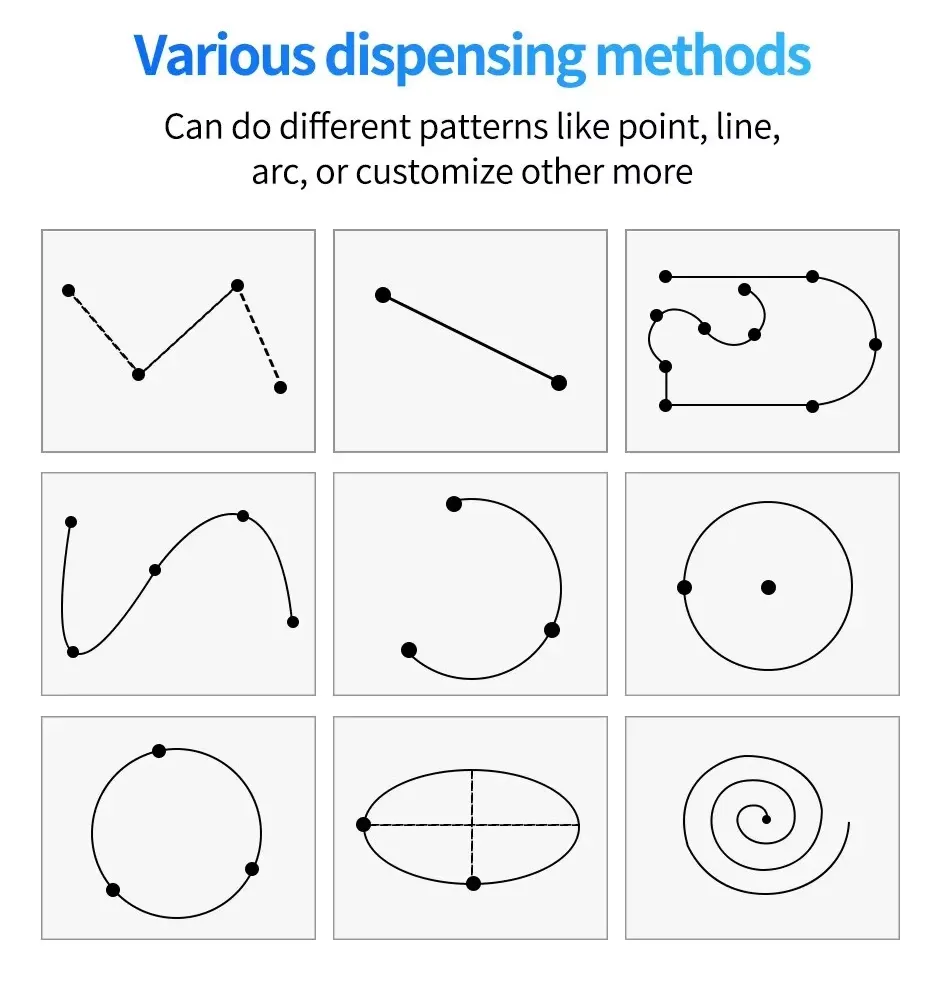

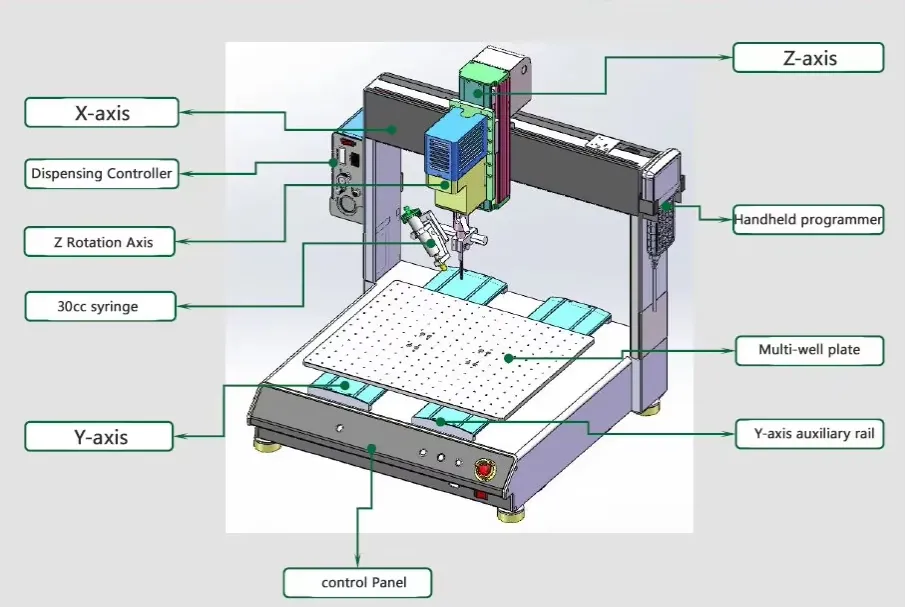

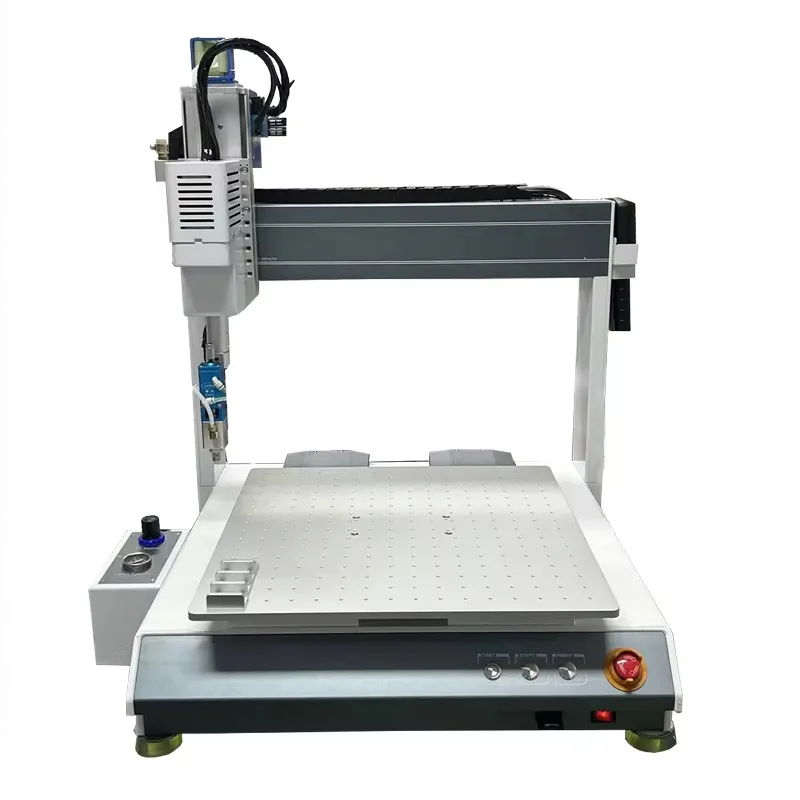

This 4 axis dispensing robot using a Double Y-axis with the function of drawing points, lines, surfaces, arcs, circles, irregular curves and continuous compensation, it can realize any 3D non planar path
•The adhesive dispensing robot adopting high-precision stepping motor + precision imported synchronous belt drive, which ensures the precision and at the same time can have a higher cost performance.
• The size remains the same, but the stroke increases by 20–25%, making it more compatible.
• Single-platform and dual-platform optional, to meet the application of different scenarios.
• Glue quantity, thickness, gluing speed, dispensing time and stopping time can be set by parameters.

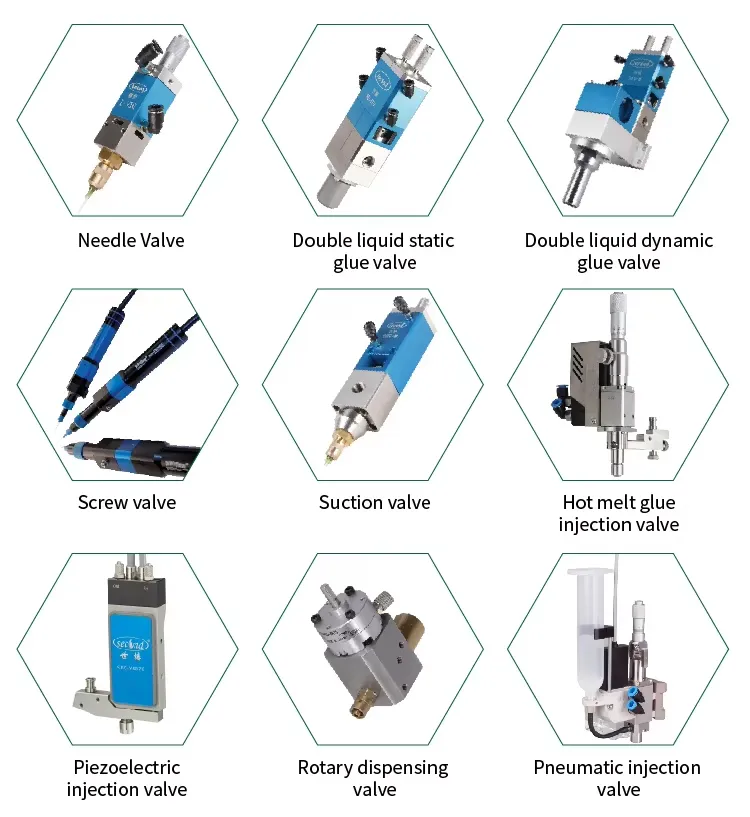

• Cooperate with special dispensing controller to ensure stable dispensing, clean glue breaking and no glue leakage.
• The glue dispensing robot with automatic anti curing function, it can effectively prevent the needle from being blocked by glue curing, and it has anti wire drawing function.
• With glue preheating function, it can greatly shorten the time for changing glue.
• Hand-held LCD screen operation, convenient programming, easy to learn and understand;
Specification
|
Model
|
XHD-E380
|
XHD-E480
|
XHD-E580Y
|
|
Working Range
|
380 (X) × 380 (Y) × 100 (Z) mm
|
480 (X) × 480 (Y) × 100 (Z) mm
|
580 (X) × 480 (Y) × 100 (Z) mm
|
|
Max Payload
|
7 kg (Y) / 5 kg (Z)
|
|
Max Travel Speed
|
300 mm/s (XY) / 200 mm/s (Z)
|
|
Drive Mode
|
Stepper motor + belt + lead screw
|
|
XYZ Position Accuracy
|
±0.02 mm
|
|
Resolution
|
0.01 mm
|
|
Memory Capacity
|
999 programs (up to 65,535 points per program)
|
|
Operating Method
|
LCD user-friendly teach pendant
|
|
Motor
|
Precision stepper motor
|
|
Movement Patterns
|
3-axis point-to-point, continuous line, arc
|
|
I/O
|
1 input / 4 outputs (supports expansion)
|
|
Power Supply
|
AC 220 V, 50/60 Hz, 0.5 kW
|
|
Working Environment
|
Temperature 0–40 °C, Humidity 20–90%
|
|
Weight
|
Approx. 48 kg
|
Approx. 60 kg
|
Approx. 75 kg
|
|
Machine Dimensions
|
520 × 583 × 645 mm
|
620 × 683 × 645 mm
|
720 × 783 × 645 mm
|
