Desktop 3 Axis Automatic Epoxy Resin Dispensing Machines

Home / Automatic Glue Dispenser Machine / Desktop 3 Axis Automatic Epoxy Resin Dispensing Machines
  • epoxy resin dispensing machines
  • automatic epoxy resin dispensing machines
  • epoxy resin dispensing machines
  • automatic epoxy resin dispensing machines
    1.The automatic glue dispensing machines employ a 3-axis control system for precise adhesive placement, enabling accurate bead application, repetitive timed application, or component potting. Programming is easy via the touchscreen display, allowing for the rapid creation of even complex patterns.

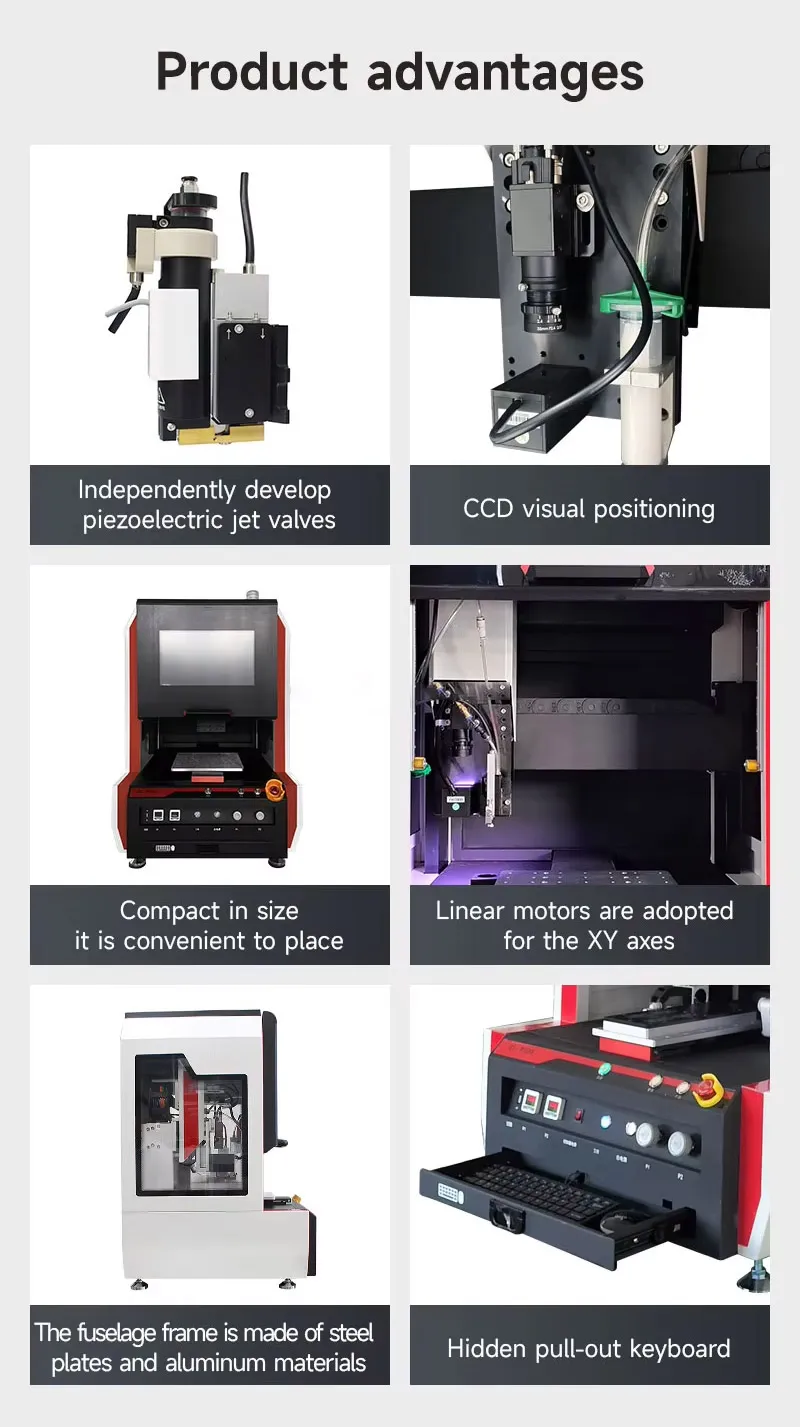

    2.The epoxy resin dispensing machines equipped with CCD vision positioning to support automatic alignment and improve dispensing accuracy, especially for small components or products requiring precise glue placement.

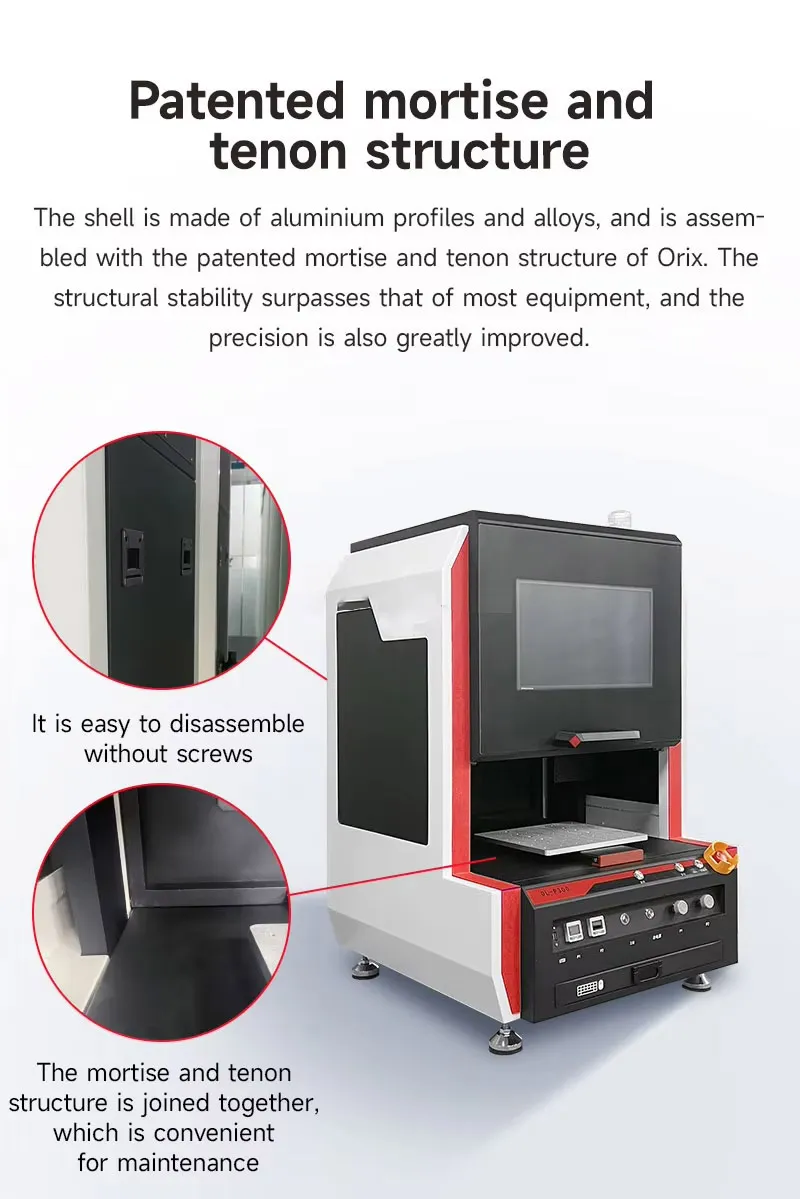

    3.The shell is made of aluminium profiles and alloys,and is assem-bled with the patented mortise and tenons tructure of Orix.The structural stability surpasses that of most equipment,and the precision is also greatly improved.
    4.It can draw points, lines, arc, and circle and, even irregular curve by consecutive interpolation and realize any 3D non planar trajectory path.
    5.Simple and convenient operation, high speed and precise control.
    6.High performance Linear structure platform with nice apprearance.

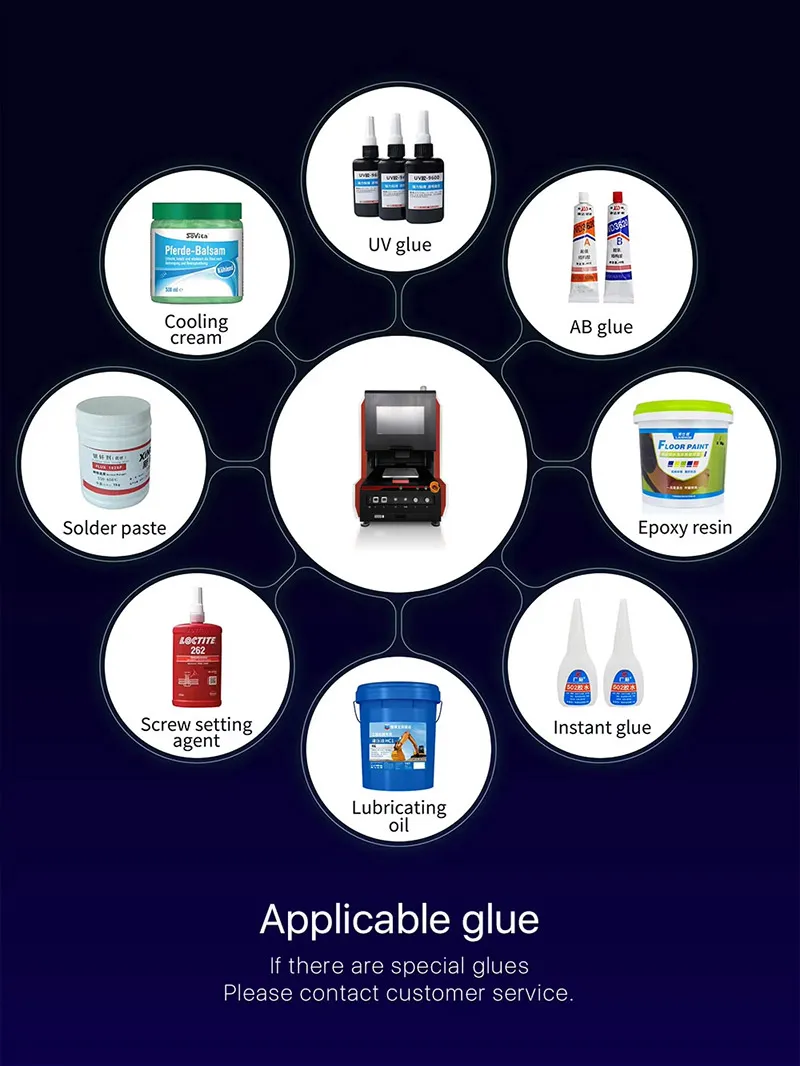

    7.The glue dispensing machines will dispense most materials including adhesives, pastes, epoxy resin, gels, silicones, sealants, oils, grease, UV, AB glue, EMI conductive glue, silver glue, red glue, etc.

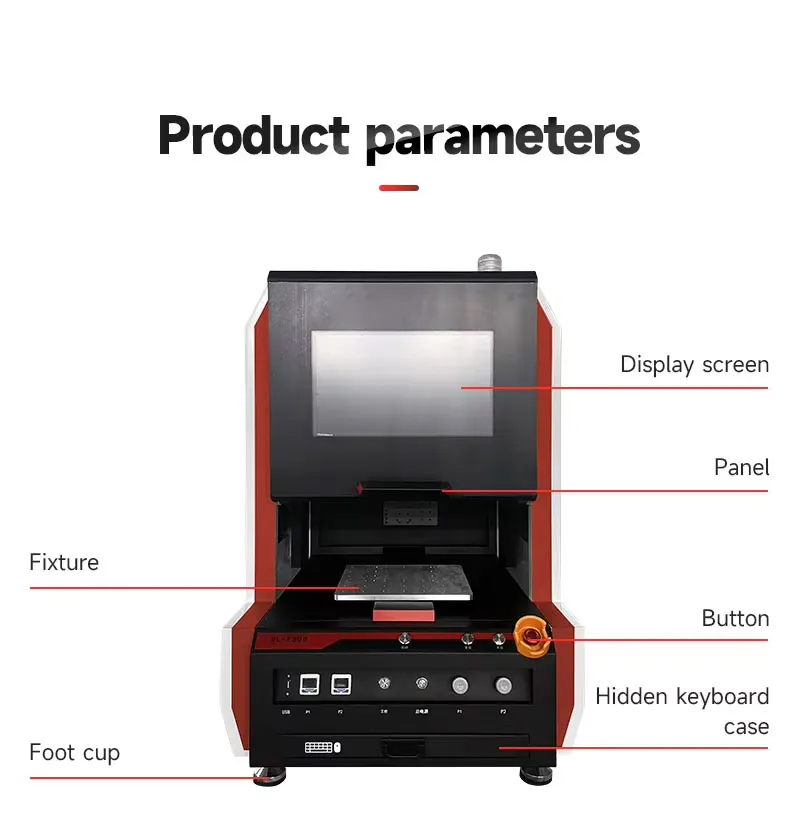

Paramenters:

Operating range X-axis 300mm
Y-axis 300mm
Z-axis 60mm

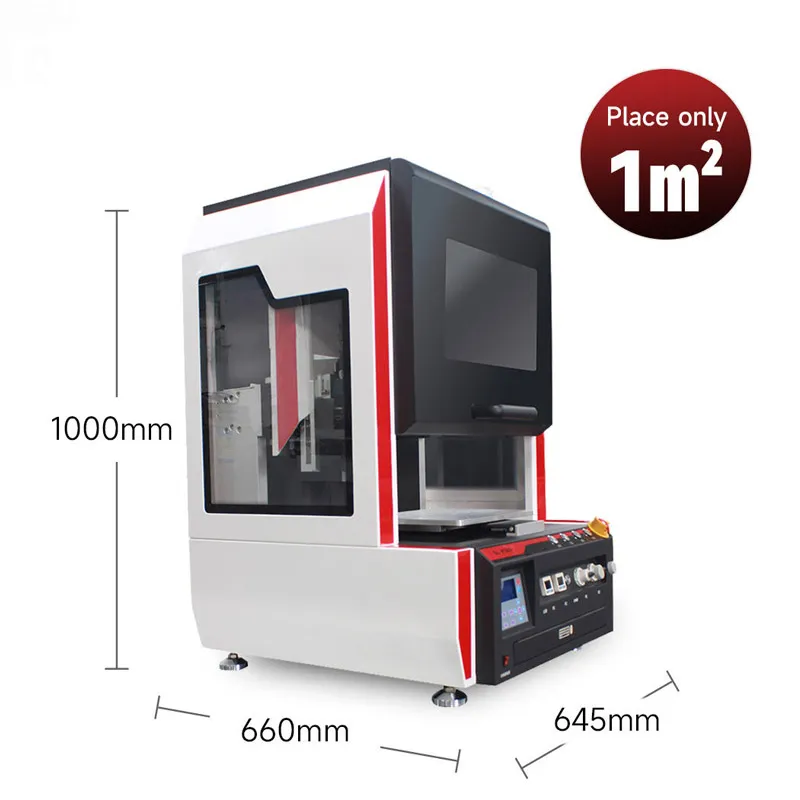

Machine size L 645mm
W 660mm
H 1050mm
Machine weight ≈145KG
Maximum load 10KG
Maximum speed 1000mm/s
Maximum acceleration 1-1.5G
Dispensing area 300×300mm
Maximum working thickness 50mm

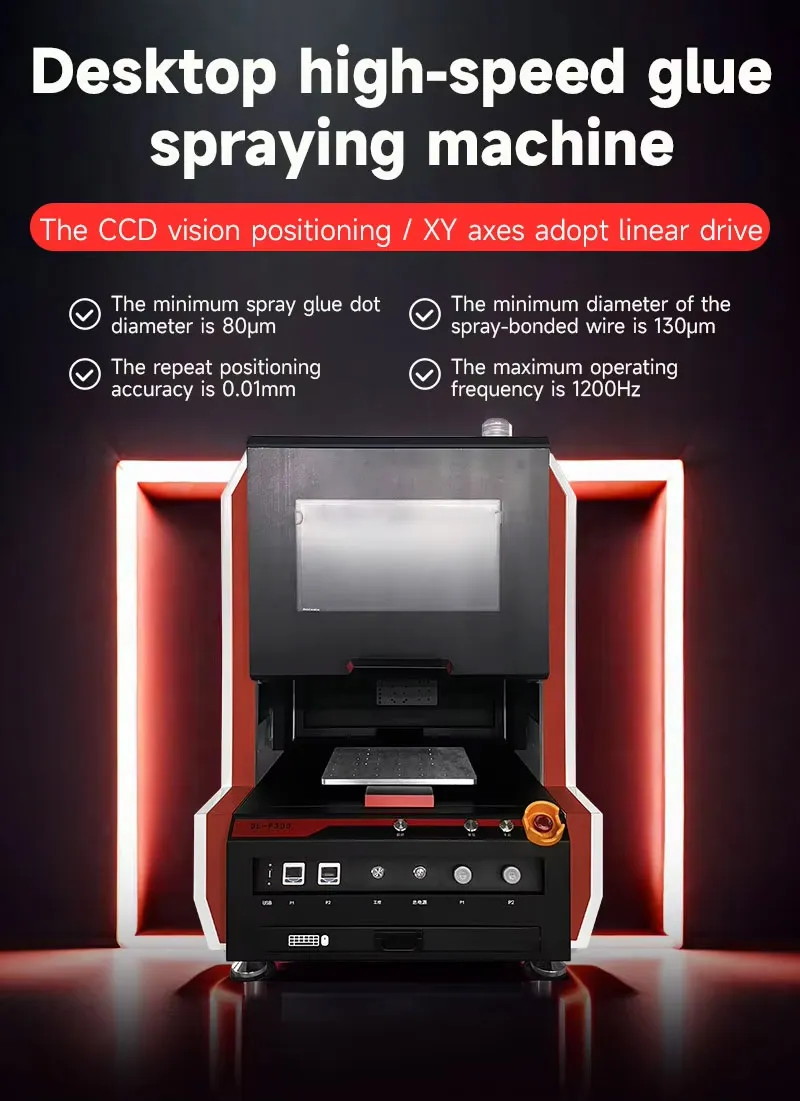

Repetition accuracy ±0.01mm (XY)   ±0.02mm (Z)
Minimum diameter of spray adhesive 0.25mm (According to the performance of the glue)
Minimum wire diameter 0.3mm (According to the performance of the glue)
Pixel 1.3 million pixels
Drive mode Linear motor (XY) + servo lead screw (Z)
Lens 35mm
Control system OLKS independently develops the control system
Light source Three-color light source
Feeding device Syringe type: 5CC, 10CC, 30CC, 55CC, 75CC
Program storage capacity It can store 99 sets of processing data, and a single processing file can occupy up to 3M of storage space (5,000 processing points).
File storage space Handheld box 256M, offline card 32M, the maximum storage space occupied by a single processed file is 3M (100,000 processing points)
Main use Bonding, focusing, coating, sealing, filling, droplet, linear/arc-shaped/circular and other gluing processes
Power supply AC220V/50Hz

Desktop 3 Axis 30ml Automatic Epoxy Resin Dispensing Machines3 Axis 30ml Automatic Epoxy Resin Dispensing MachinesDesktop 3 Axis Automatic Epoxy Resin Dispensing Machines3 Axis Automatic Epoxy Resin Dispensing MachinesAutomatic Epoxy Resin Dispensing MachinesAutomatic Epoxy Resin Dispensing MachinesEpoxy Resin Dispensing Machines3 Axis Epoxy Resin Dispensing Machines
