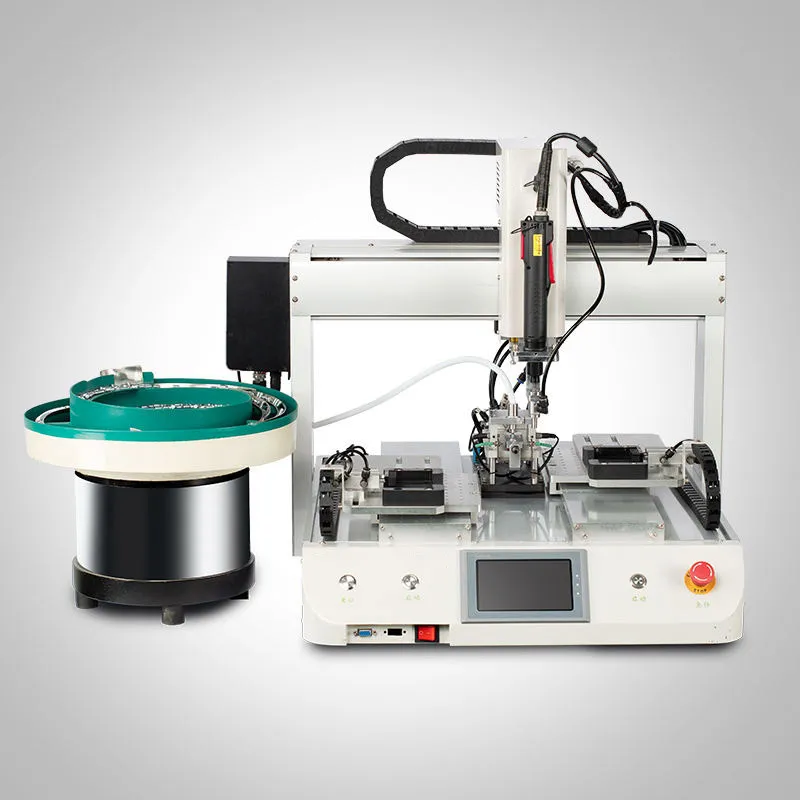

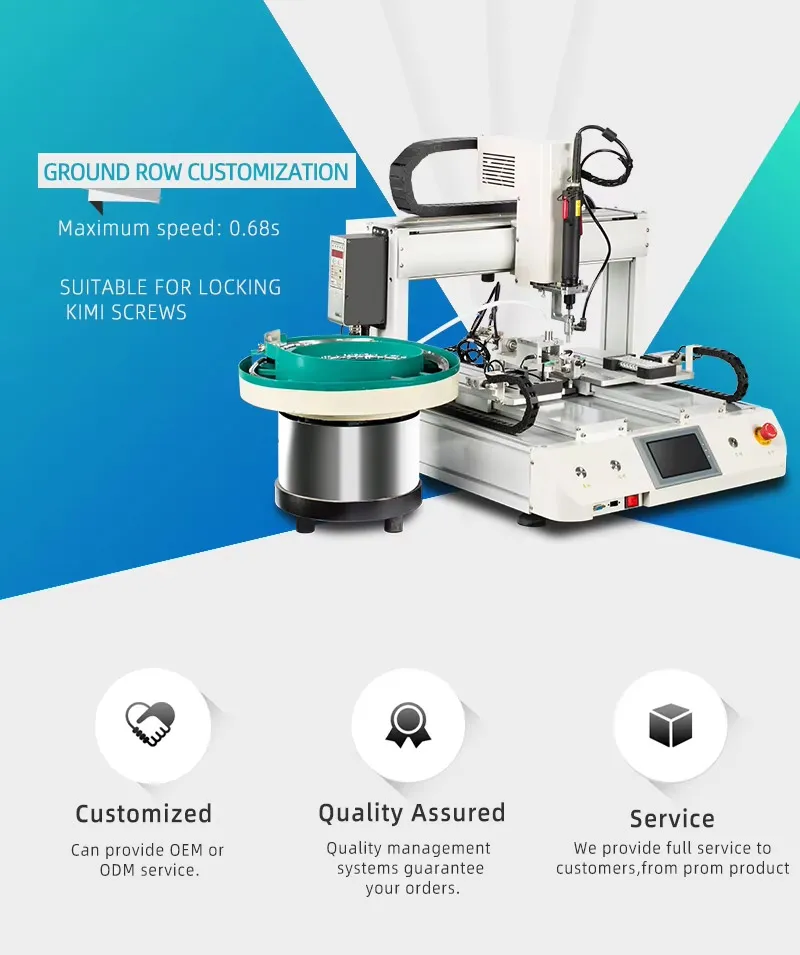

Features:

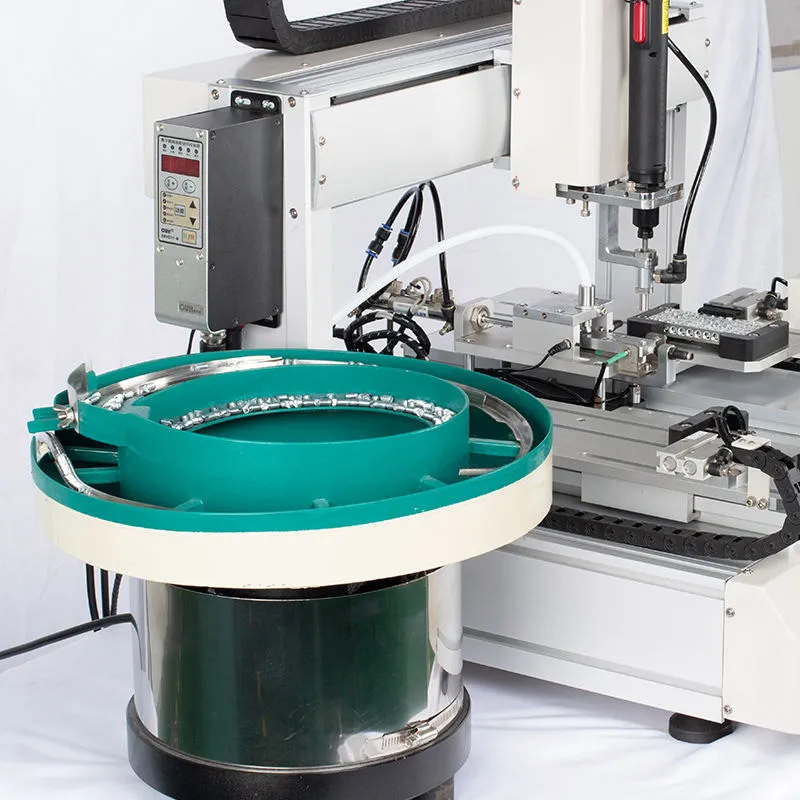

1.Multi-functional in one machine, supporting arbitrary switching between vacuum-suction and magnetic-adsorption feeding methods.
2.The intelligent servo electric screwdriver features high rotation speed, high precision, low noise, long service life, and is maintenance-free.
3.The auto screw tightening machine equipped with a 7-inch human-machine interface touch screen, it dynamically displays the fastening status and can monitor the torque and rotation speed of the electric screwdriver in real-time.
4.Equipped with a servo motor, it can perform position compensation, automatic correction, and there is no step-loss.
5.The thickened sheet-metal integrated frame has high rigidity, making the equipment more stable.

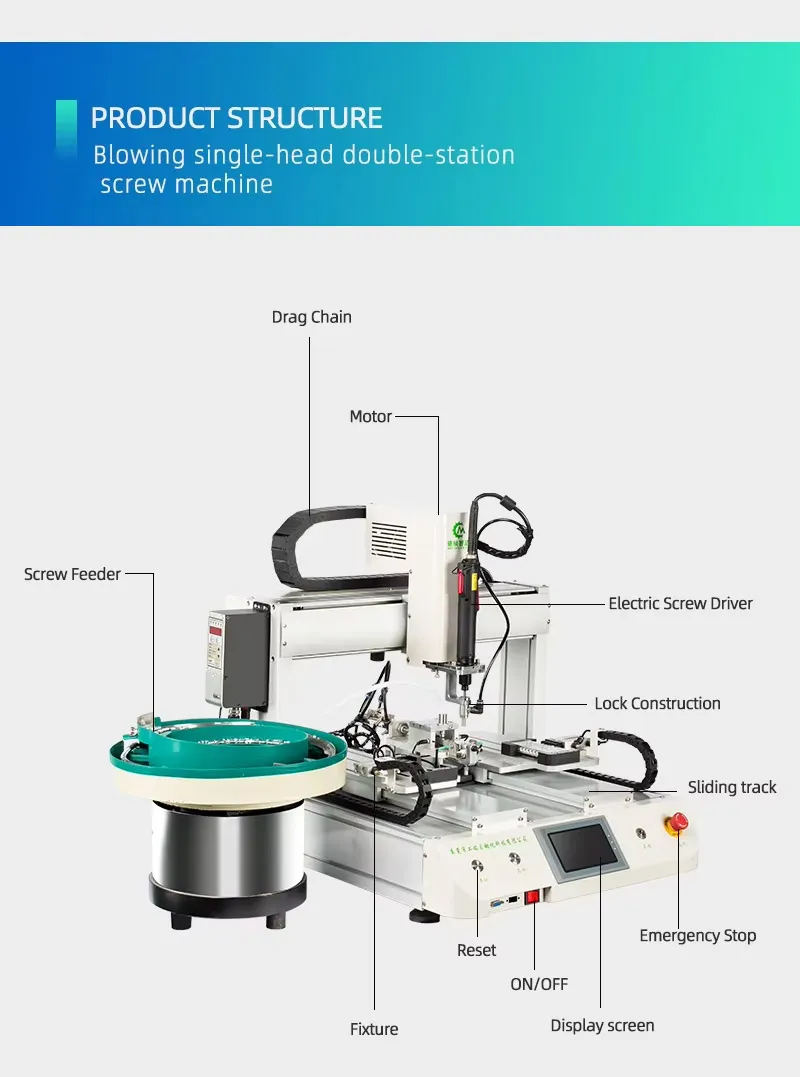

6.Single-head dual-station, with a large fastening range, can perform alternate operations, doubling the efficiency.
7.The intelligent electric screwdriver supports fastening a product with two different torques.
Paramenters
|
Model
|
XHD-DS5441
|
|
Feeder Mode
|
Adsorption Type
|
|

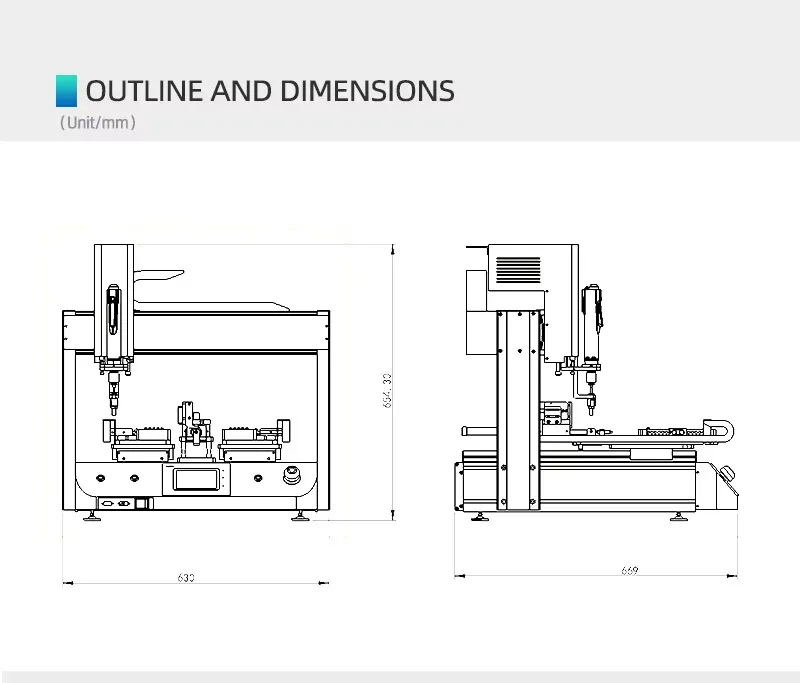

Dimension (L × W × H)
|
630 × 670 × 660 mm
|
|
Weight
|
45 kg
|
|
Operation Range (X × Y × Z)
|
380 × 365 × 65 mm
|
|

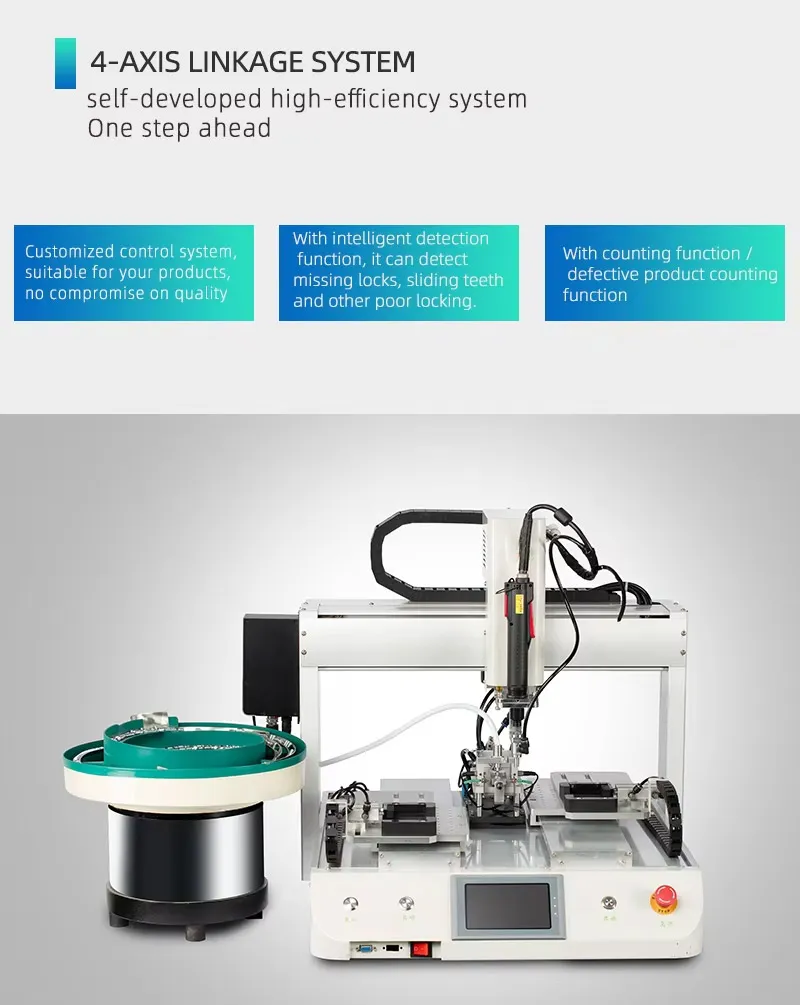

Axis
|
4 Axis (X, Y1, Y2, Z)
|
|
Driving Mode
|
Precision Stepping Motor + Timing Belt
|
|
Maximum Speed
|
X, Y: 600 mm/s; Z: 500 mm/s
|
|
Repeated Precision
|
X, Y, Z: ±0.02 mm
|
|
Teaching Method
|
Remote Teaching / Manual Data Input / Optional LCD Touch Screen
|
|
Motor System
|
Precision Stepper Motor
|
|
Transmission Mode
|
Timing Belt + Screw Rod + Guide Rail
|
|
Control Panel
|
Teach Pendant (Optional: PC or Touch Screen)
|
|

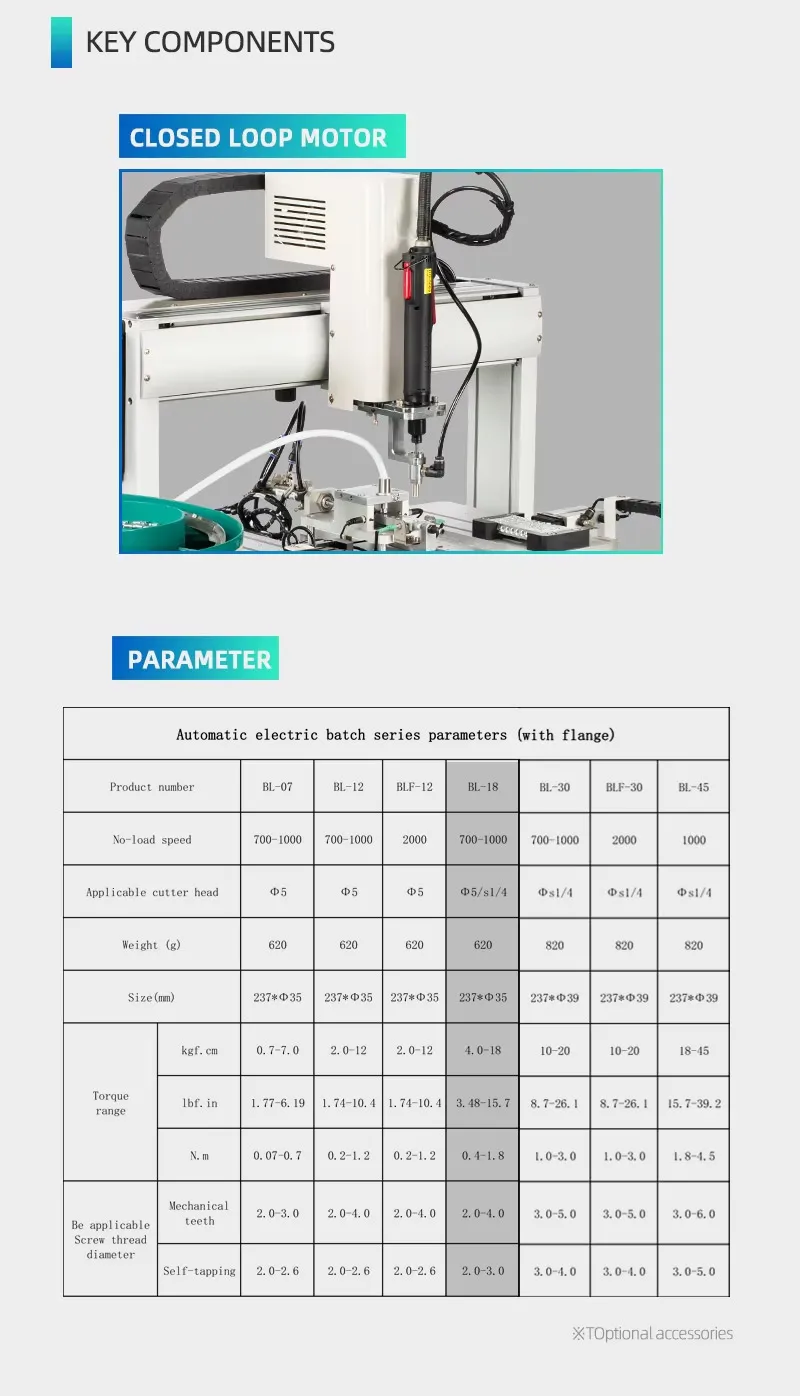

Torque Range
|
0.5 ~ 15 kgf·cm (Adjustable)
|
|
Tighten Efficiency
|
About 60 pcs/min (Depends on screw type)
|
|
Voltage
|
AC 110V / 220V, 50 / 60 Hz
|
|
External Interface
|
USB + RS232
|
|
Power Source
|
Electricity + Pneumatic
|
|
Air Pressure Requirement
|
0.4 – 0.6 MPa (Dry Air)
|
|
Working Temperature
|
5 – 40 ℃
|
|
Working Humidity
|
20 – 90% RH
|
