Features：

1. According to the distribution of different screws, the corresponding stroke trajectory can be set, and the locking of different products can be implemented;
2. The torque is accurate: easy to adjust and ensure the locking quality. Customers can adjust the torque of the electric screwdriver according to their actual requirements.
3. Intelligent detection, floating lock in the locking process, sliding teeth do not miss to reduce inspection tools;
4. The screw feeder adopts the latest turntable structure, with low noise, high reliability of locking screws, no clamping screws and maintenance-free;
5. Advanced feeding system reduces the probability of material stuck failure and greatly improves the comprehensive benefits.
6. Customized universal clamps can be made according to customer needs, suitable for tightening various models of screws This device is compact in appearance and can be conveniently placed on the production line.
7. Excellent controllability and humanized design enable operators to take up their posts without training, and design the operation scope of personnel with different permissions to avoid unnecessary misoperation.
8. The automatic screw tightening machine is adopted vacuum screw suction method, which has good versatility and overcomes the characteristic that the wind-blown screw cannot deliver the 1.2 aspect ratio, and also overcomes the characteristic that the magnetic screw suction method stainless steel screw cannot suck.

Paramenters:

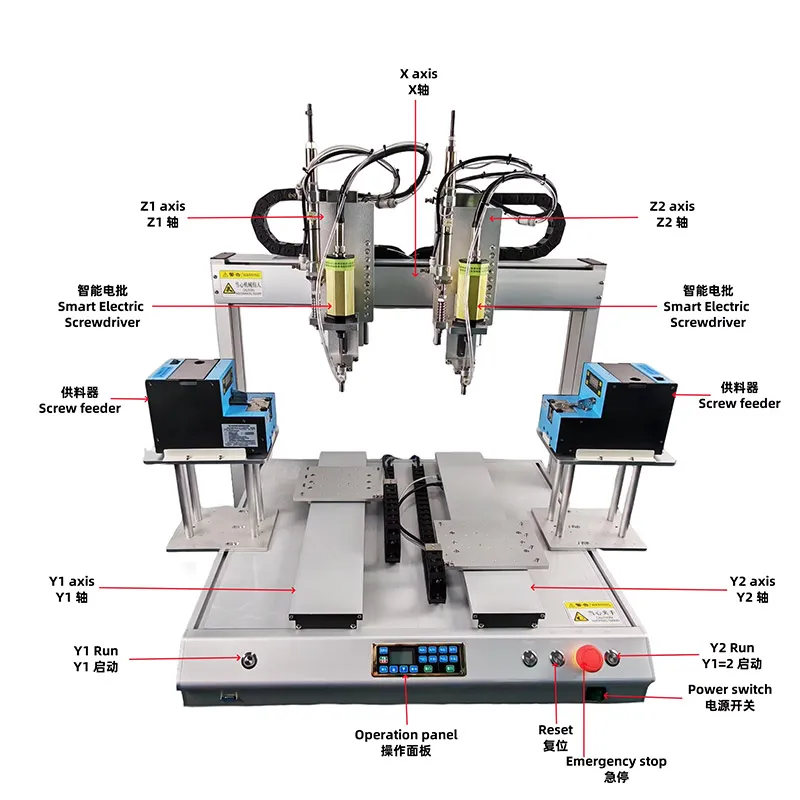

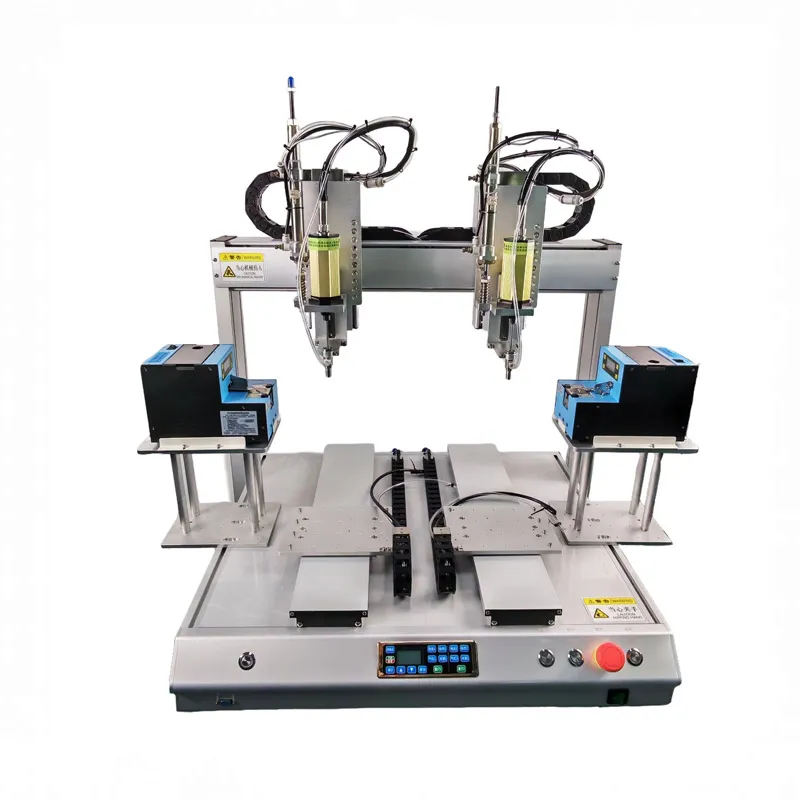

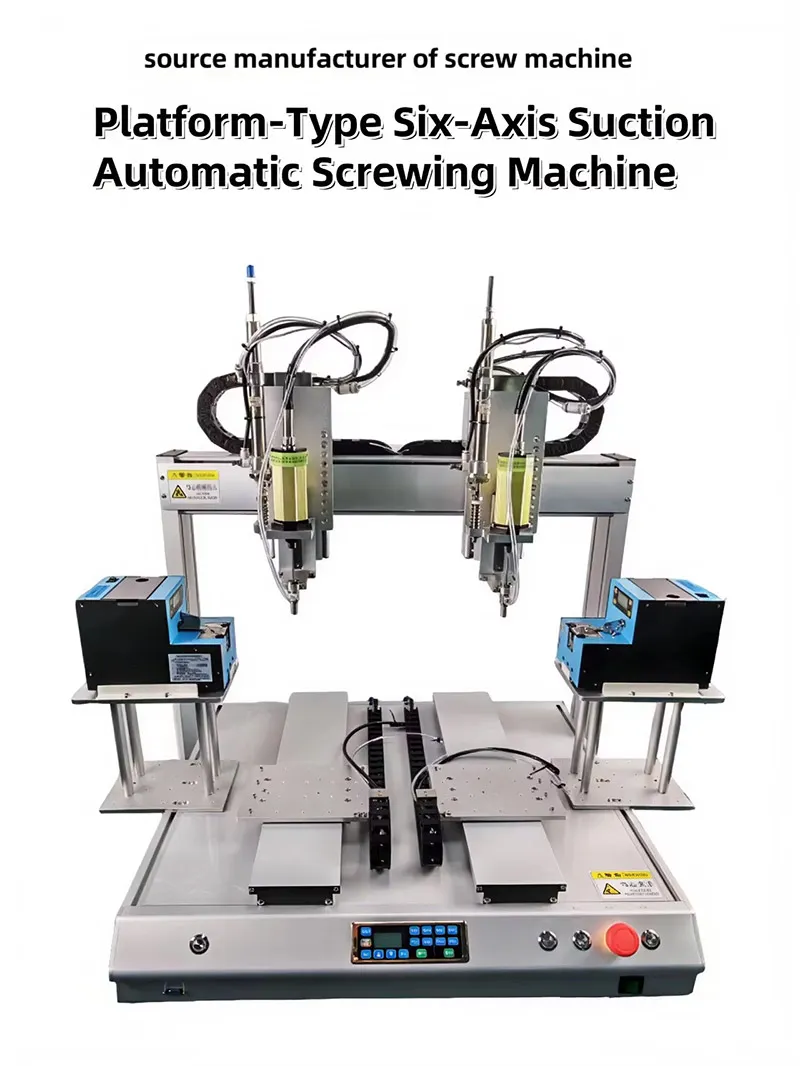

Name / Model	Six-axis Suction Screw Machine / ZJ-54411XF
Action Range - X Axis	2-X Axis: 500 × 500 mm
Action Range - Y Axis	2-Y Axis: 400 × 400 mm
Action Range - Z Axis	2-Z Axis: 100 × 100 mm
Operating Speed (PTP)	2-X / 2-Y Axis: 0.1 – 800 mm/s
Pallet Load	10 kg
Z-Axis Load	5 kg
Repeated Positioning Accuracy	±0.02 mm
Feeding Mode	Suction Automatic Feeder
Electric Screwdriver	Intelligent Electric Screwdriver
Screw Tightening Time	0.6 – 1.5 s
Alarm Functions	Floating Teeth, Sliding Teeth, Missing Lock Detection

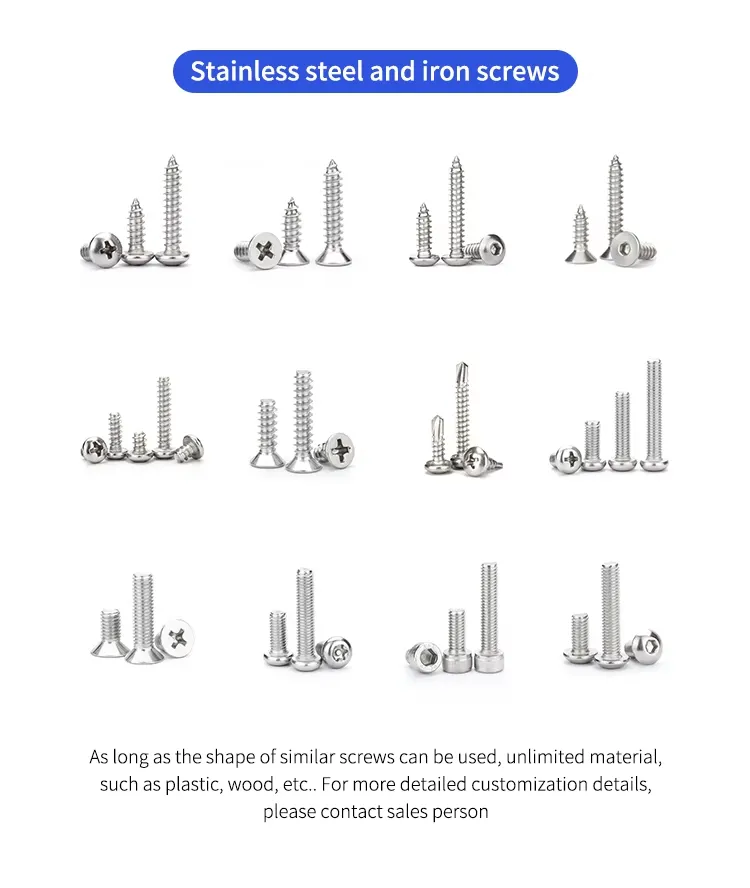

Applicable Screws	M0.9 – M6.0 (Customizable)
Drive Mode	Monolithic Control Card

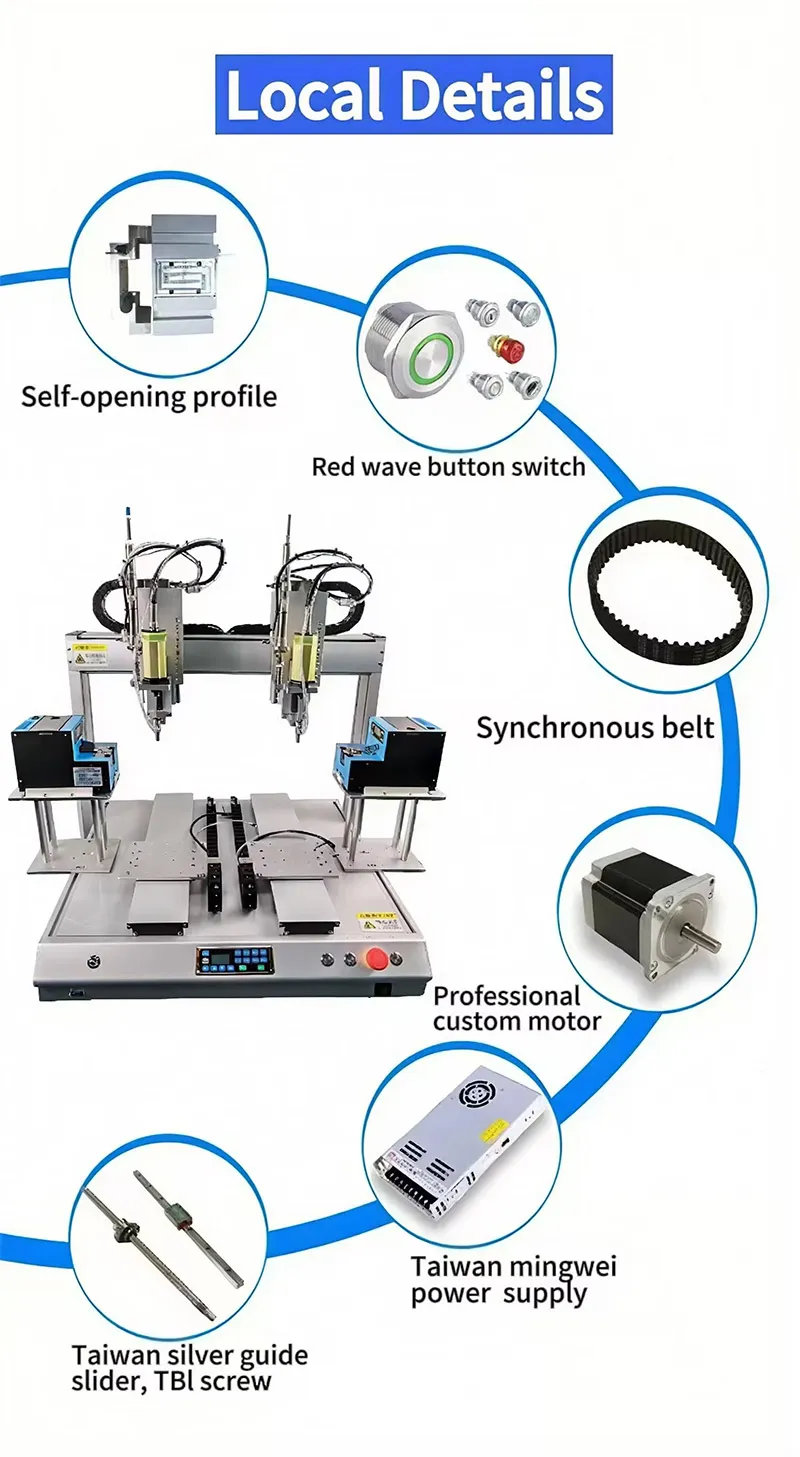

Transmission Mode	Motor + Ball Screw + Belt + Linear Slide
Motion Control	6-Axis (3D Spatial Path Motion)
Number of Control Axes	6 Axis
External Control Interface	RS232
Storage Capacity	≥100 Programs, Each Program 4000 Points
Power Supply	AC 220V, 50 Hz
Equipment Power	< 0.4 kW
Working Temperature	0 – 40 ℃
Relative Humidity	20 – 90% (Non-condensing)
Overall Dimensions	850 × 700 × 1350 mm (L × W × H)
Machine Weight	90 kg
