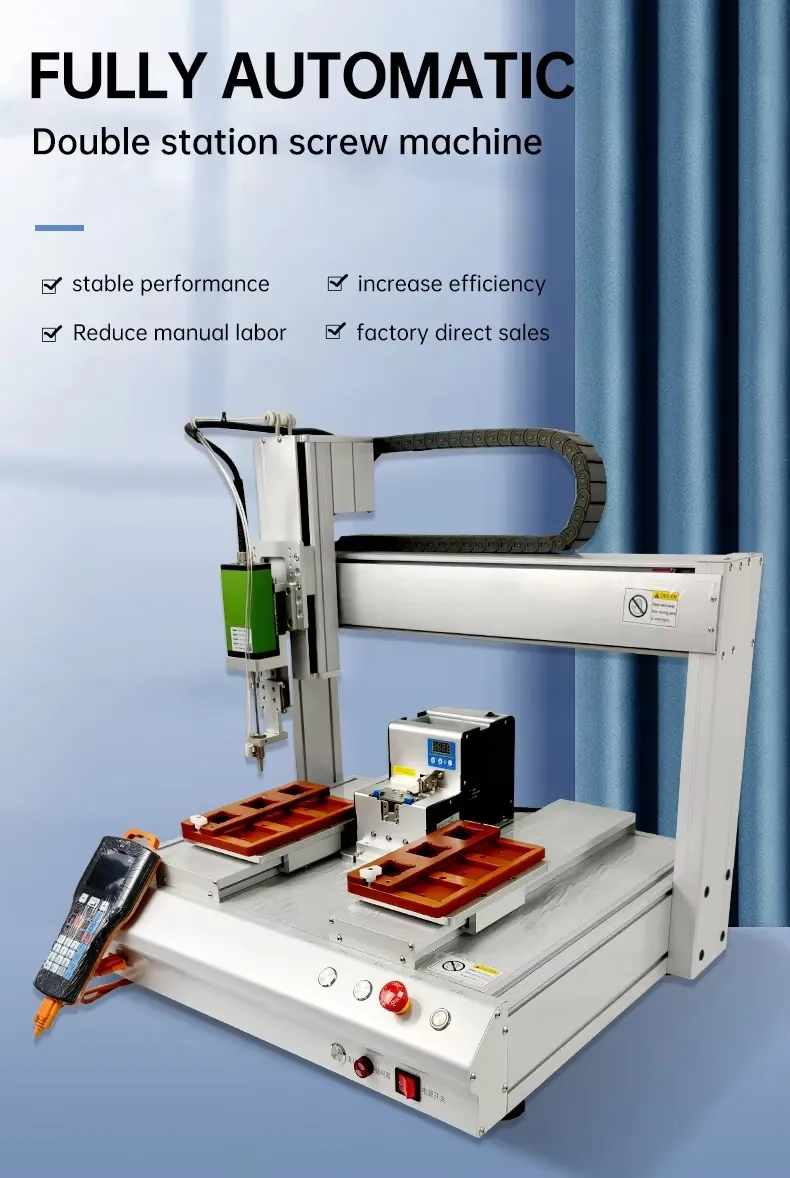

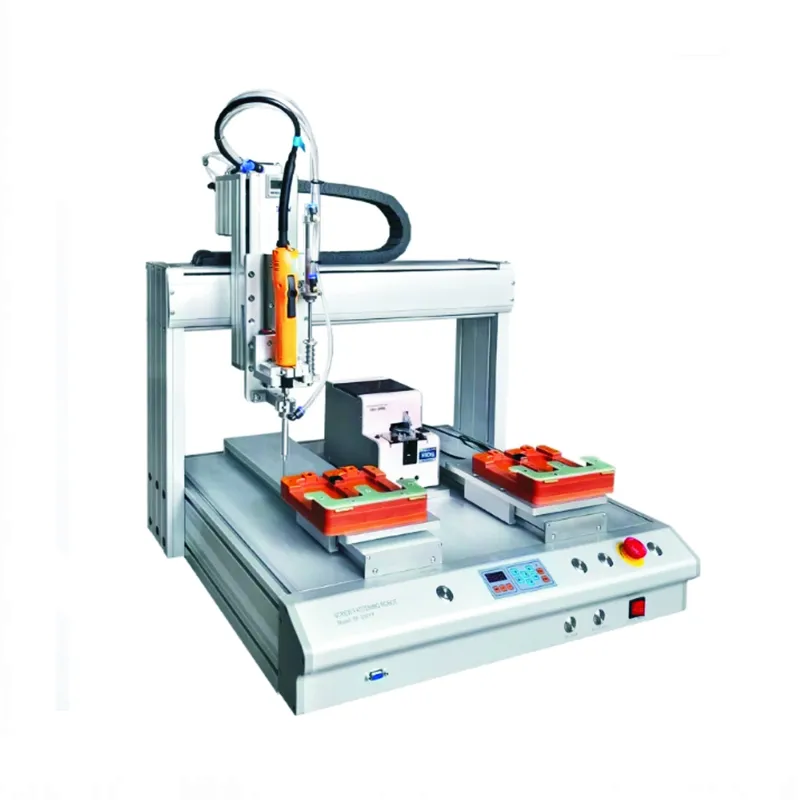

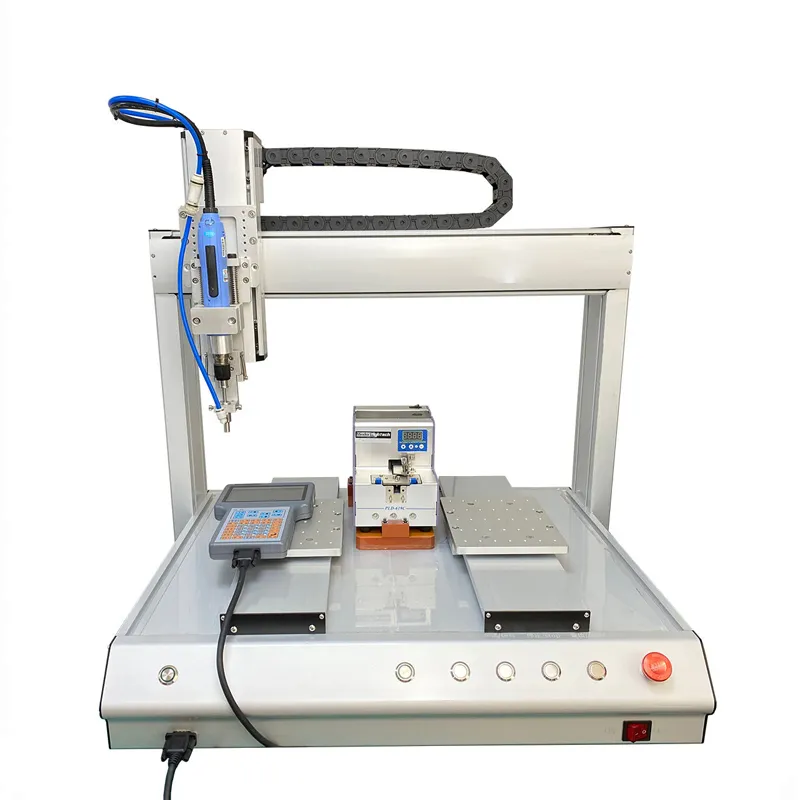

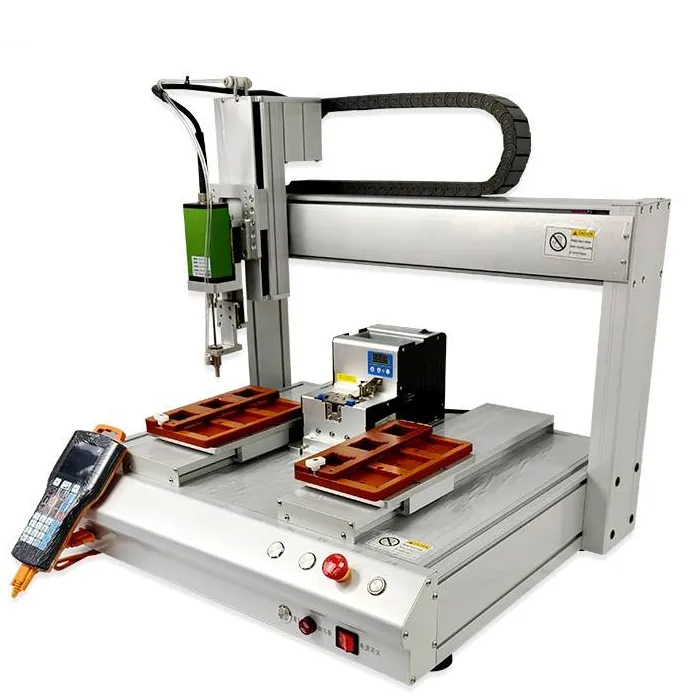

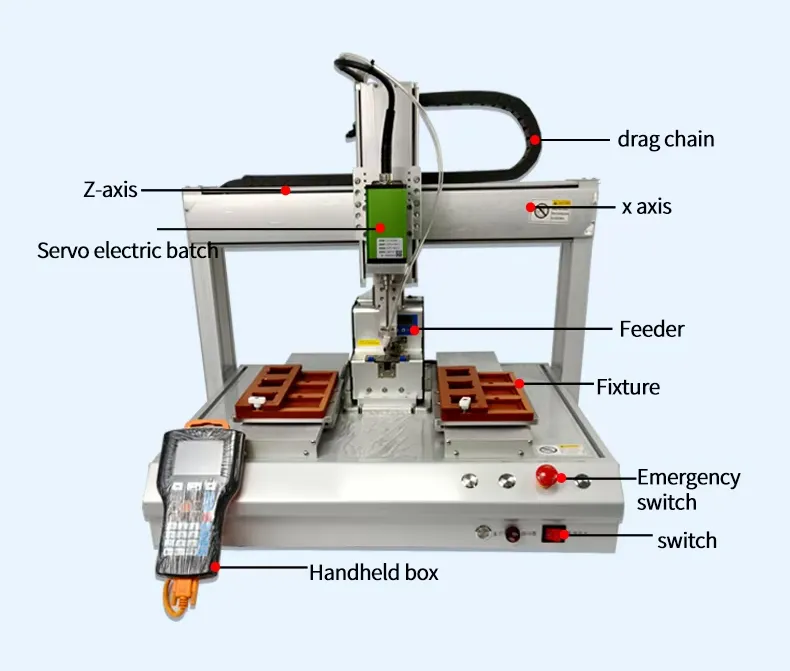

Home / Automatic Screw Fastening Machine / Desktop 3 Axis Automatic Screw Fastening Machine with Double Platform

Model Number	ZJ-L5331	ZJ-L5441	ZJ-L5441	ZJ-L661
Operating Range (X/Y/Z)	500(X) × 300(Y1) × 300(Y2) × 100(Z) mm	400 × 400 × 100 mm	500(X) × 400(Y1) × 400(Y2) × 100(Z) mm	600 × 600 × 100 mm
Machine Size (W × L × H)	746 × 585 × 800 mm	616 × 685 × 800 mm	846 × 785 × 800 mm	816 × 885 × 800 mm

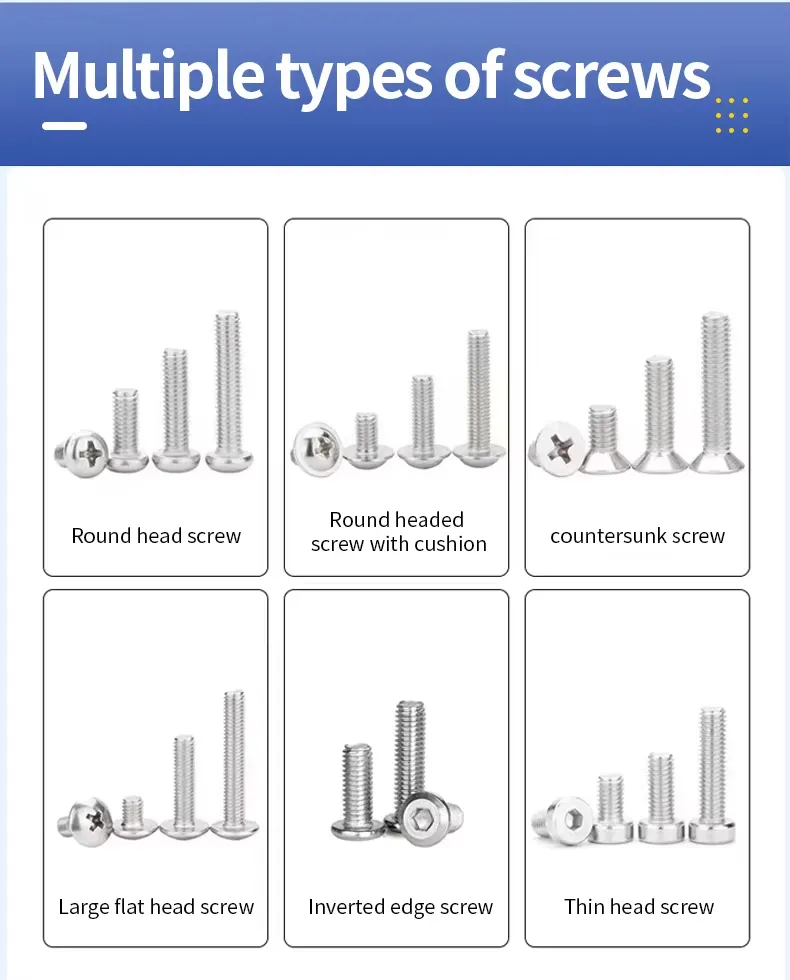

Screw Size	M1.0–M6.0
Maximum Speed	300 mm/s (Max customizable 800 mm/s)
Repeatability	±0.02 mm to ±0.05 mm
Working Mode	Inhalation / Blowing

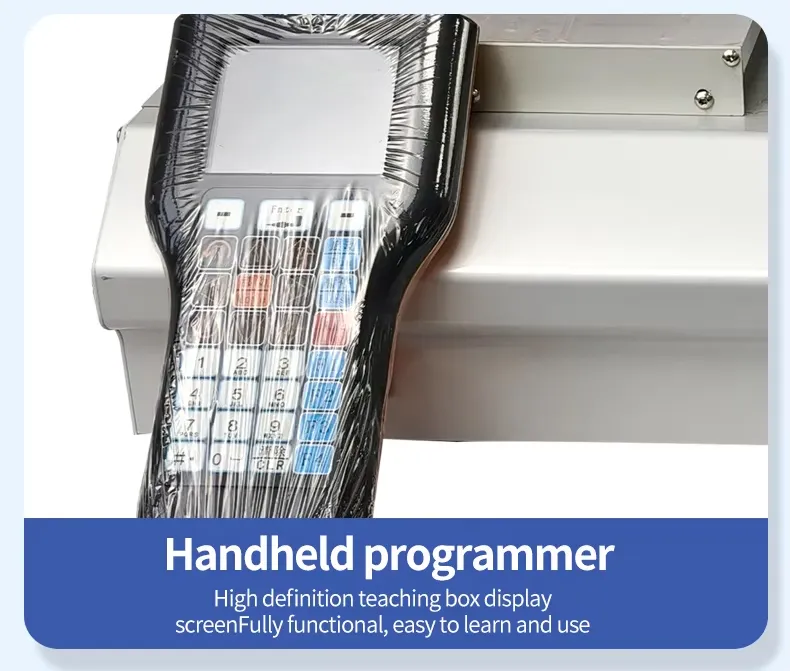

Control System	Intelligent motion control card with teaching box
Driving Mode	Precision stepper motor + synchronous belt + linear guide rail / Servo motor + ball screw
Program Storage	1,000 sets of processed data; a single file up to 3 MB (5,000 processing points)
File Storage Space	Handheld box 256 MB, offline card 32 MB; single file up to 3 MB (100,000 points)
Transmission Mode	Dual Track Timing Belt
Maximum Load	X: 5 kg; Y1/Y2: 5 kg; Z: 3 kg
Power Supply	AC 220V, 50–60 Hz
Work Environment	Humidity: 20–90%, Temperature: 0–60 ℃
External Interface	USB + RS232
Packing	Wooden box
