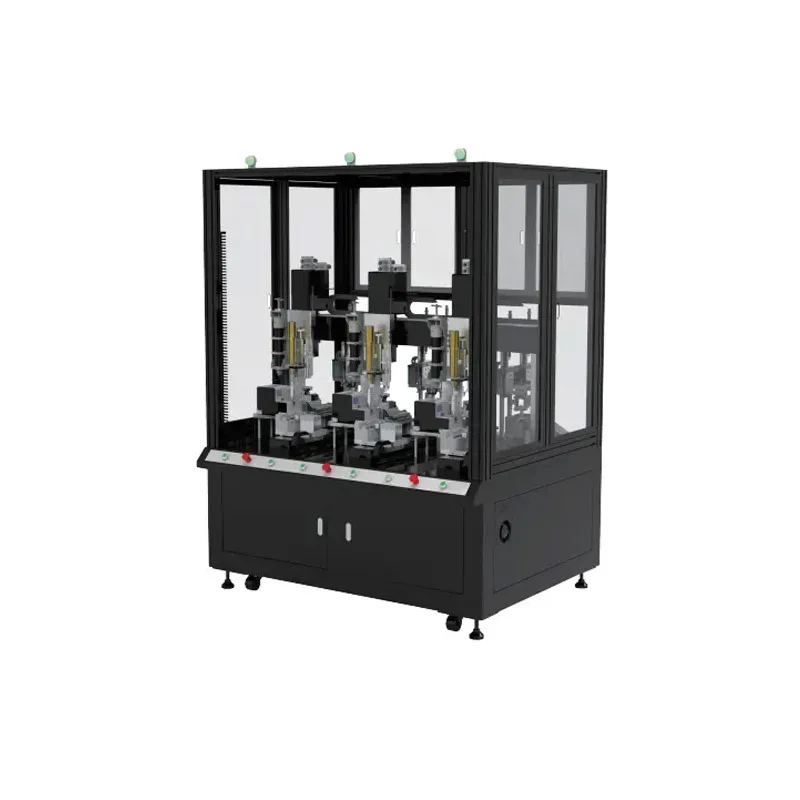

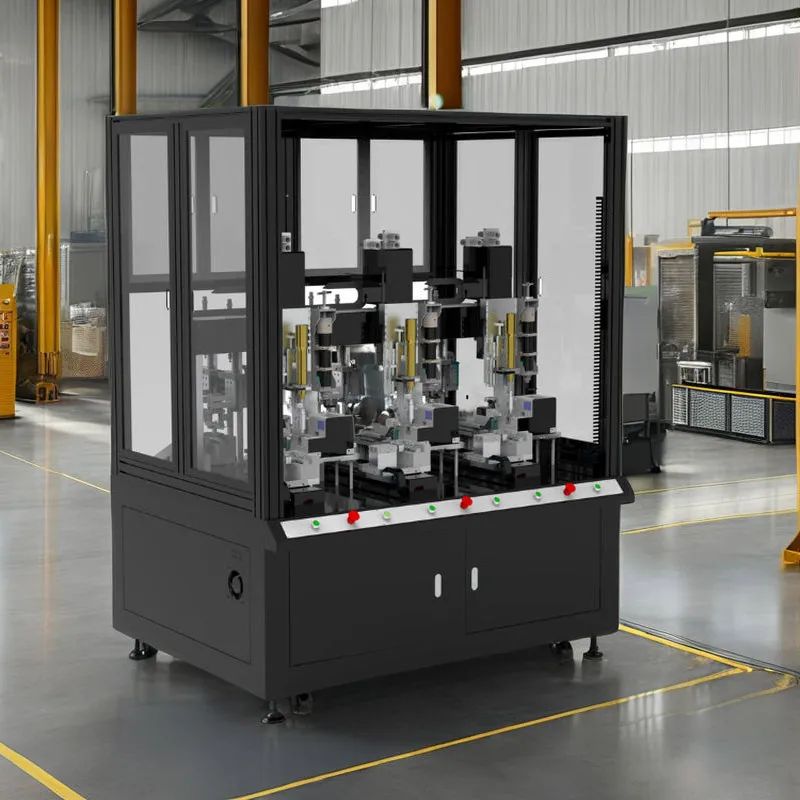

Automatic Screw Assembly Machine with Floor Type 3 Station

Specification

Model	ZJ-AS373-T
Working Area (XYZ)	X1/X2: 330 × Y1/Y2: 700 × Z1/Z2: 100 mm
Moving Speed	X/Y axis ≤ 500 mm/s, Z axis ≤ 300 mm/s
Drive Mode	Stepper motor + linear guide or Servo motor + ball screw (optional)
Location Accuracy	±0.01 – 0.03 mm
Control System	Moving control and teach pendant
Screw Transmission Method	Suction mode / Blow mode (alternative)
Electric Screwdriver	3 pcs (optional)
Screw Feeder	3 pcs
Full Voltage	220V 50Hz
Operating Temperature	5 – 40°C
Operating Humidity	20 – 90% (non-condensing)
Air Pressure	0 – 0.8 MPa
Dimension (W × D × H)	1235 × 1080 × 780 mm
Weight	Approx. 420 kg

Model

ZJ-AS373-T

Working Area (X*Y*Z)

X1/X2: 330 × Y1/Y2: 700 × Z1/Z2: 100 mm

Moving Speed

X/Y axis ≤ 500 mm/s, Z axis ≤ 300 mm/s

Drive Mode

Stepper motor + linear guide or Servo motor + ball screw (optional)

Location Accuracy

±0.01 – 0.03 mm

Control System

Moving control and teach pendant
