Features:
1. Faster, versatile, rugged and are "automatic feeder ready"

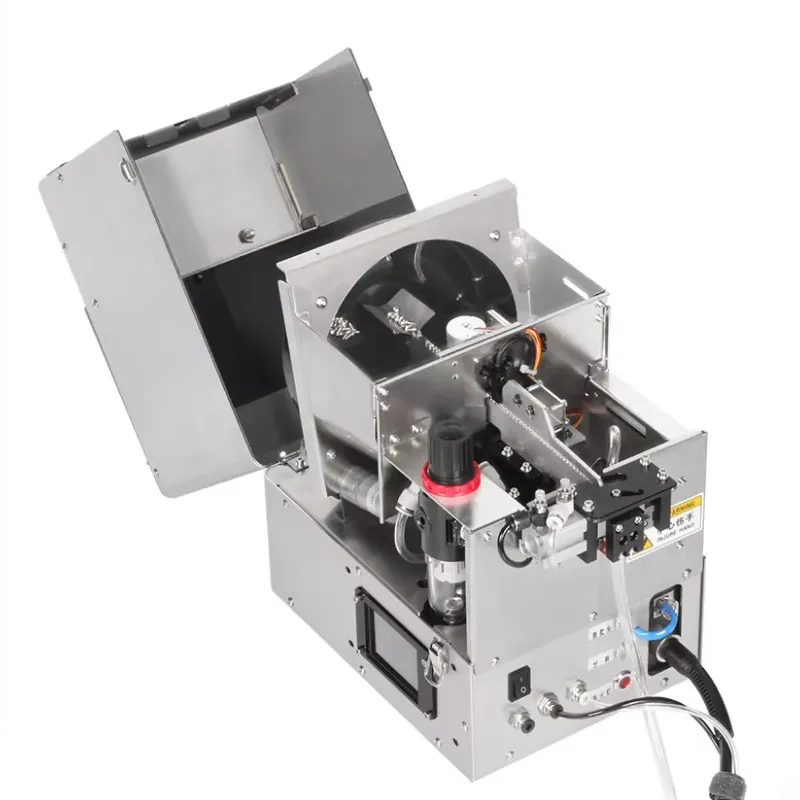

2. Turbine feed, various shapes of screws automatically feed, sort and lock. One-handed operation.
3. High torque accuracy, convenient adjustment, ensure the quality of screw locking.
4. Small size, light weight, low noise, space saving, good mobility, easy maintenance.
5. Warning function (audible and visual alarm) when there is no screw.
6. High efficiency. You do not need to pick up the screws, just lock the screws at the screw holes.
7. Feed the sensors one by one to avoid repeated feeding.
8. The screws can be locked very quickly, locking 60 screws per minute.
Specification
|
Model
|
XHD-SCLS-3
|
|
Feeder Mode
|
Blowing Type
|
|

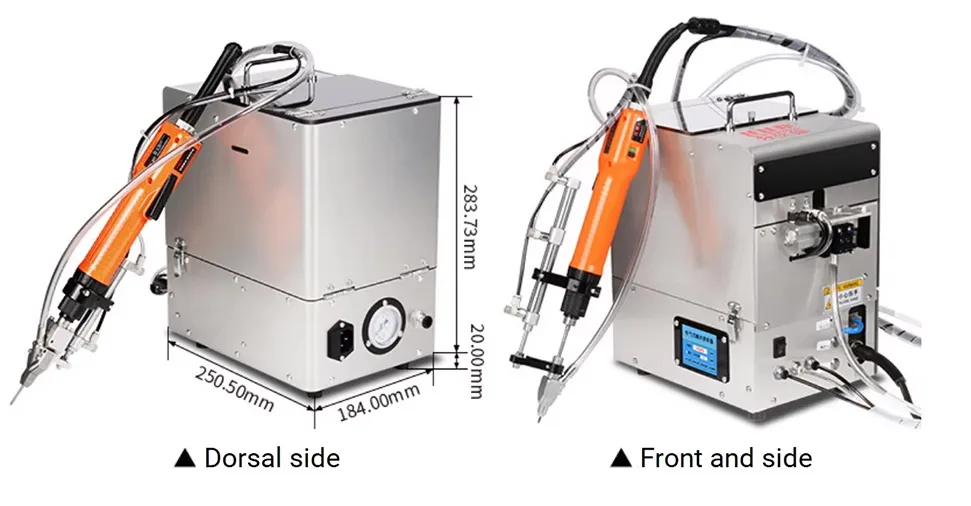

Dimension (L × W × H)
|
251 × 184 × 284 mm
|
|
Weight
|
15 kg
|
|
Conveying Distance
|
1–4 m
|
|
Feeder Capacity
|
2000–5000 pcs (depending on screw type)
|
|
Screw Feeding Speed
|
0.5 s / pcs
|
|
Screwdriver Brand
|
Taiwan HHB
|
|
Torque Range
|
0.5–15 kgf·cm (adjustable)
|
|
Tightening Efficiency
|
50–70 pcs/min (depending on screw length)
|
|
Voltage
|
AC 110V / 220V, 50Hz / 60Hz
|
|
Power Source
|
Electric + Pneumatic
|
|
Power
|
30 W
|
|
Air Supply
|
4–6 kg/cm²
|
|
Noise Level
|
≤ 65 dB
|
|
Working Temperature
|
-20°C to 40°C
|
|
Working Humidity
|
20–90% RH
|
|
Package Dimension
|
505 × 410 × 510 mm
|
|
Gross Weight
|
25 kg
|
