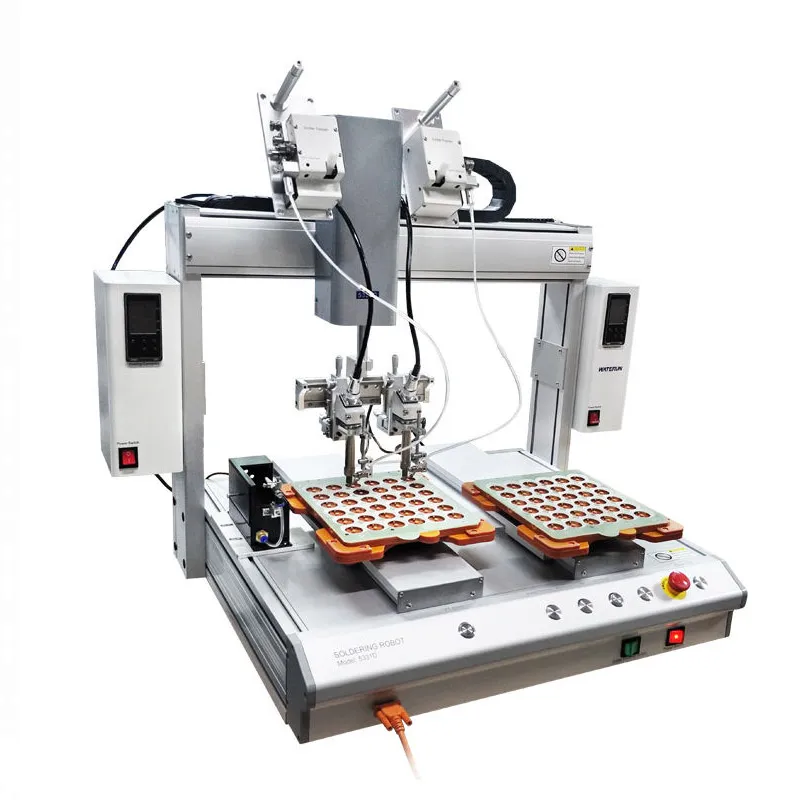

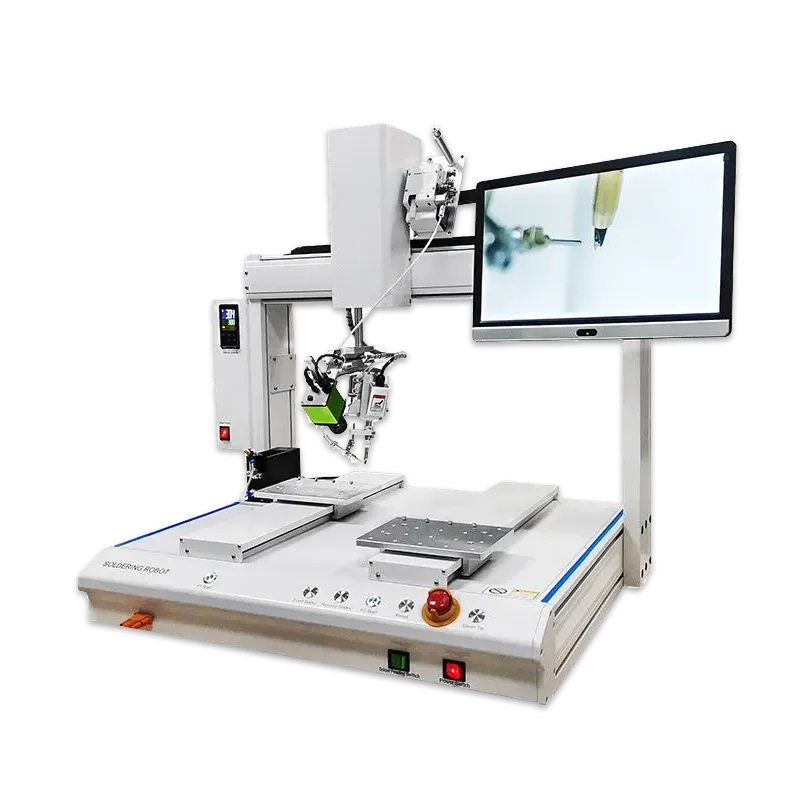

What is an automatic soldering machine?
An automatic soldering machine is a precision industrial system designed to perform soldering tasks without manual intervention. It uses a robotic arm or automated gantry instead of a handheld soldering iron, ensuring high consistency, speed, and accuracy in electronic manufacturing. It is widely used in PCB assembly, automotive electronics, and LED manufacturing where high-volume production and strict quality standards are required.
Core Components
Motion Control System: Usually a 3-axis or 4-axis robotic gantry (X, Y, Z, and often a rotating R-axis) that positions the soldering tip with sub-millimeter precision.
Soldering Head & Tip: The "business end" of the machine that applies heat to the joint.
Solder Feeder: An automated mechanism that feeds a precise length of solder wire to the joint at a specific speed.
Temperature Controller: Maintains a constant, monitored temperature at the tip to prevent "cold joints" or damage to sensitive components.
Cleaning System: An automated station (often using air blasts or brushes) that cleans the soldering tip between cycles to remove oxidation and excess flux.
-
What types of soldering processes can your auto soldering machines support?

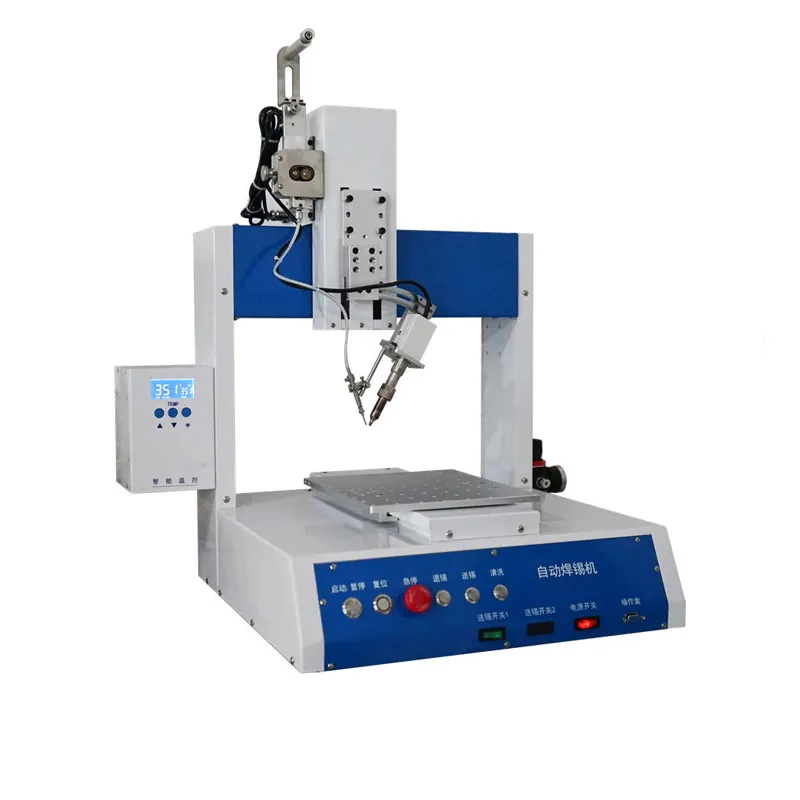

Zaijin automated soldering machines support point soldering, drag soldering, line soldering, selective soldering, and complex multi-segment soldering paths.
-
What industries can automatic soldering machines be used in?

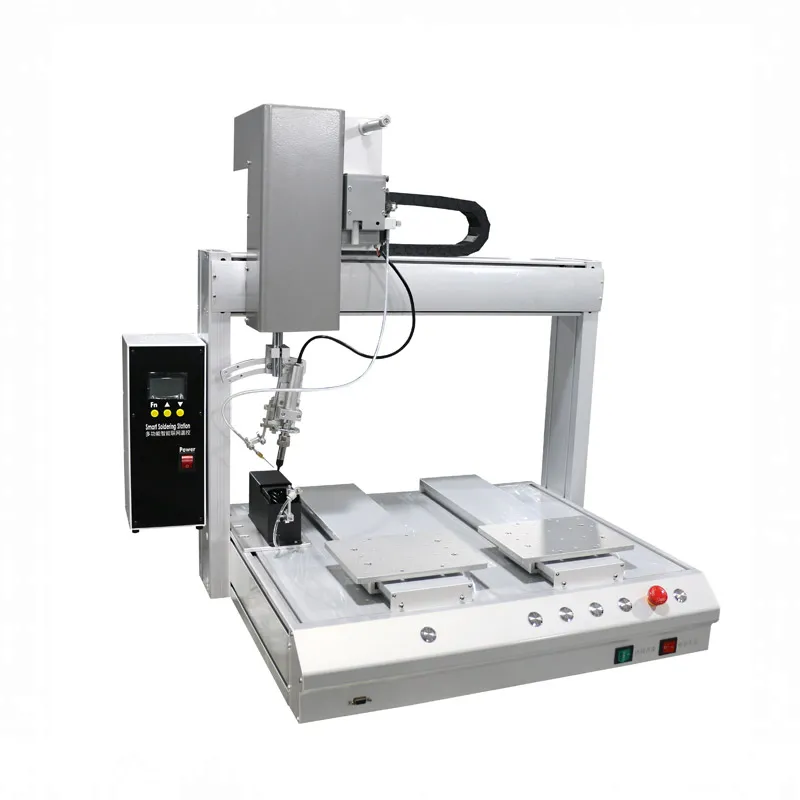

Automatic soldering systems are mainly used in post-SMT processes for high-precision electronic assembly. Typical applications include LED products, PCB and SMD component welding, USB, HDMI, and Type-C connectors. They are also suitable for wire welding, component pins, fixed slots, and flexible and rigid PCB (soft and hard board) welding. These systems are widely used in the LED, PCB, 3C electronics, automotive electronics, and optical communication industries.
-
Do you support multi-axis soldering systems?
Yes, we provide 3-axis, 4-axis, and 5-axis soldering systems to handle complex soldering paths and achieve higher flexibility.
-
Can the automatic soldering machine be customized?
Yes. We offer customized solutions including fixtures, axis configuration, soldering heads, and working area customization based on your specific requirements.
-
How does the sample testing process work?
You send us your sample and requirements. We perform soldering tests and provide feedback, videos, or reports for your evaluation.
-
What after-sales support do you provide?
We provide installation guidance, operator training, remote technical support, and long-term after-sales service to ensure stable machine operation.
-
How long is the delivery time?
Delivery time depends on the configuration and customization level. Standard machines are typically delivered within 2–4 weeks, while customized solutions are confirmed after technical evaluation.
-
Do you test the machine before shipment?
Yes. Every automated soldering machine is fully assembled, tested, and verified before shipment.
-
What is the price of an automatic soldering machine?
The price depends on the machine type, axis configuration, and customization requirements. As a direct manufacturer, we provide factory-direct, cost-effective solutions tailored to your application.
