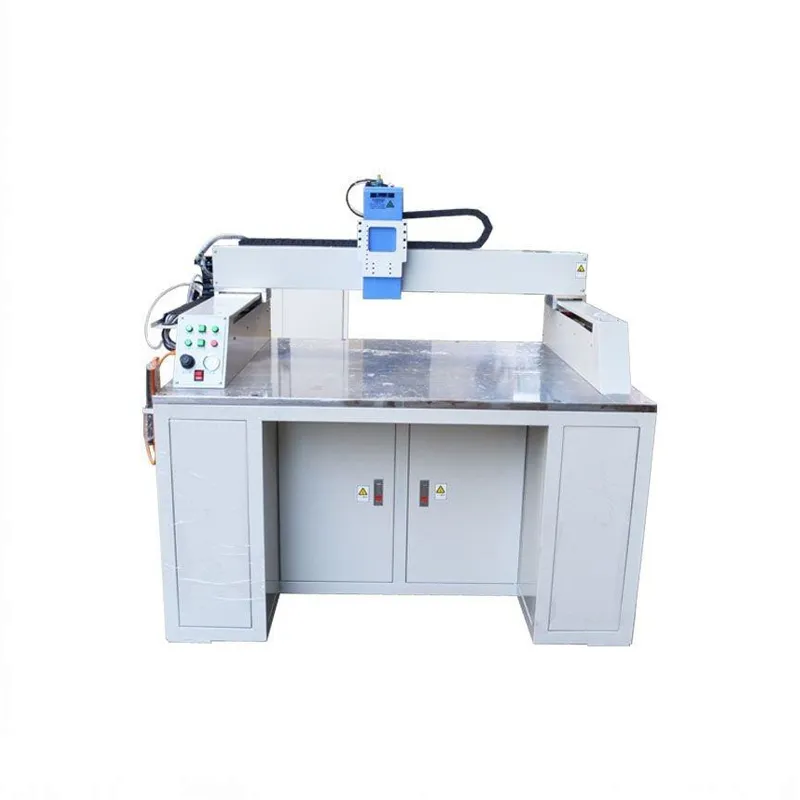

3 Axis Gantry Auto Glue Dispenser Machine

Home / Automatic Glue Dispenser Machine / 3 Axis Gantry Auto Glue Dispenser Machine
  • Auto Glue Dispenser Machine
  • 3 Axis Gantry Auto Glue Dispenser Machine
  • Auto Glue Dispenser Machine
  • 3 Axis Gantry Auto Glue Dispenser Machine
    The Auto Glue Dispenser Machine features a rigid gantry structure that ensures high stability, repeatable accuracy, and smooth motion control. The three-axis system enables precise dispensing of dots, lines, arcs, and complex paths with consistent glue output. Designed for automated production, it offers fast response, high efficiency, and reduced material waste, making it ideal for precision assembly and continuous industrial applications.

Paramenters:

Working range (mm) X300*Y300*Z120(mm),X1300*Y1000*Z120(mm)
Maximum load X/Y: 8KG; Z: 5KG , Y/90KG;Z/10KG
Moving speed X/Y: ≤ 500mm/s; Z: ≤ 200mm/s
Motion accuracy ±0.01-0.03mm
Motor system Servo motor + ball screw / closed loop motor + linear guide rail drive
Dispensing method Syringe / high precision dispensing valve outlet
Control system Motion control card
Panel control Position adjustment, micro advance, program selection
Control mode Point to point, line to arc compensation
Programming mode Teaching pendant / PC optional
Delimitable graph Line, garden, arc; Continuous scribing; Drop, glue
Motion interpolation function Any 3D route
Input power AC220V 50-60Hz
Operating temperature 10-40℃
Operating humidity 20-90% no condensation
Dimension W*D*H (mm) W460*D600*H540mm (reference only)
Weight around 60kg,around 550kg
