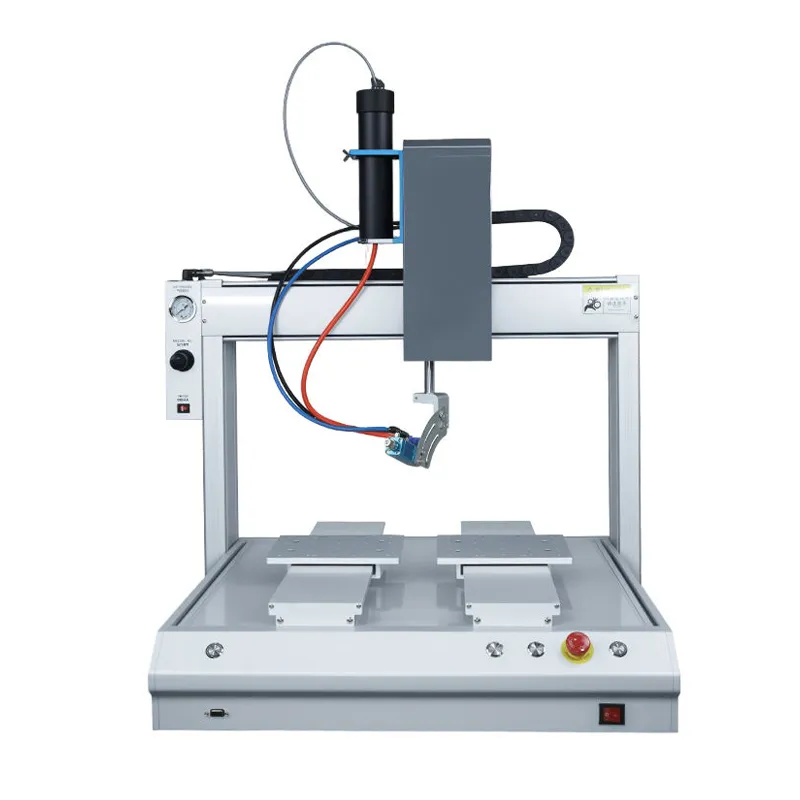

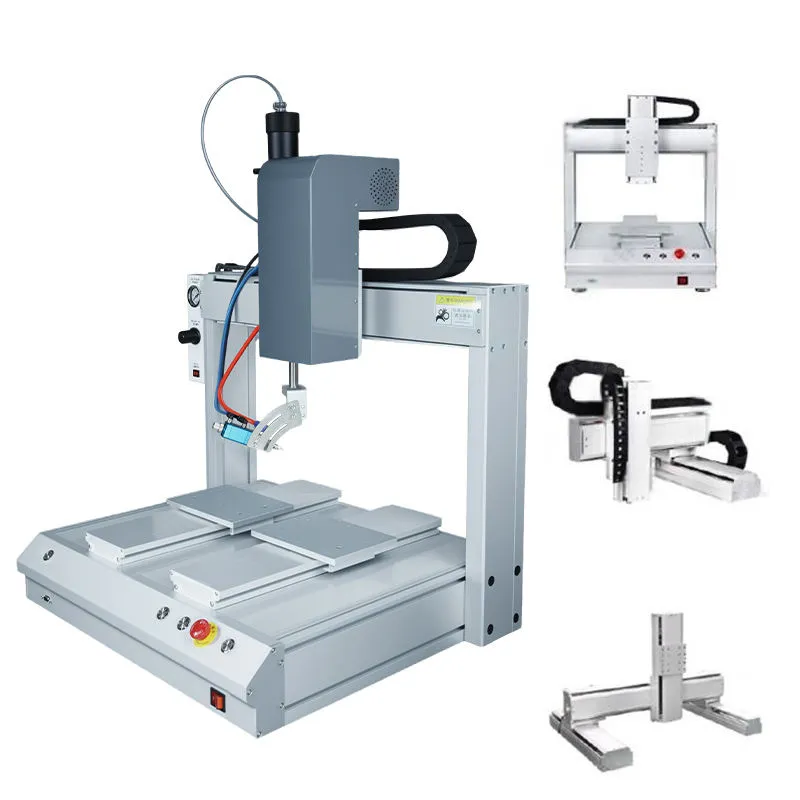

Desktop 4 Axis Automatic SMT PCB Glue Dispensing Machine with Z-Axis Rotating Double Station

Home / Automatic Glue Dispenser Machine / Desktop 4 Axis Automatic SMT PCB Glue Dispensing Machine with Z-Axis Rotating Double Station
  • SMT PCB Glue Dispensing Machine
  • 4 Axis Automatic SMT PCB Glue Dispensing Machine
  • Automatic SMT PCB Glue Dispensing Machine
  • SMT PCB Glue Dispensing Machine
  • 4 Axis Automatic SMT PCB Glue Dispensing Machine
  • Automatic SMT PCB Glue Dispensing Machine
    The Desktop Automatic Glue Dispensing Machine is designed for precise and stable adhesive dispensing in SMT and PCB assembly processes. The four-axis motion system with Z-axis rotation allows accurate dispensing on complex PCB layouts and multi-angle components. It runs alternately with a double platform, saving the time required for product loading and unloading while improving overall production efficiency. With flexible programming and stable dispensing performance, the machine is suitable for PCB component fixation, protection, and sealing in small to medium-scale automated production.

Paramenters:

Model
(Size customizable) 		XHD-331 Power Supply AC110–220V
50–60Hz
Work itinerary
(Itinerary customizable) 		300 × 300 × 100 mm Control system Full-time / Constant Control, etc.
Programmable Handheld Programmer / PC Import Running speed 1–800 mm/s
Repeatability (belt) 0.2–0.5 mm Machine weight 66 kg

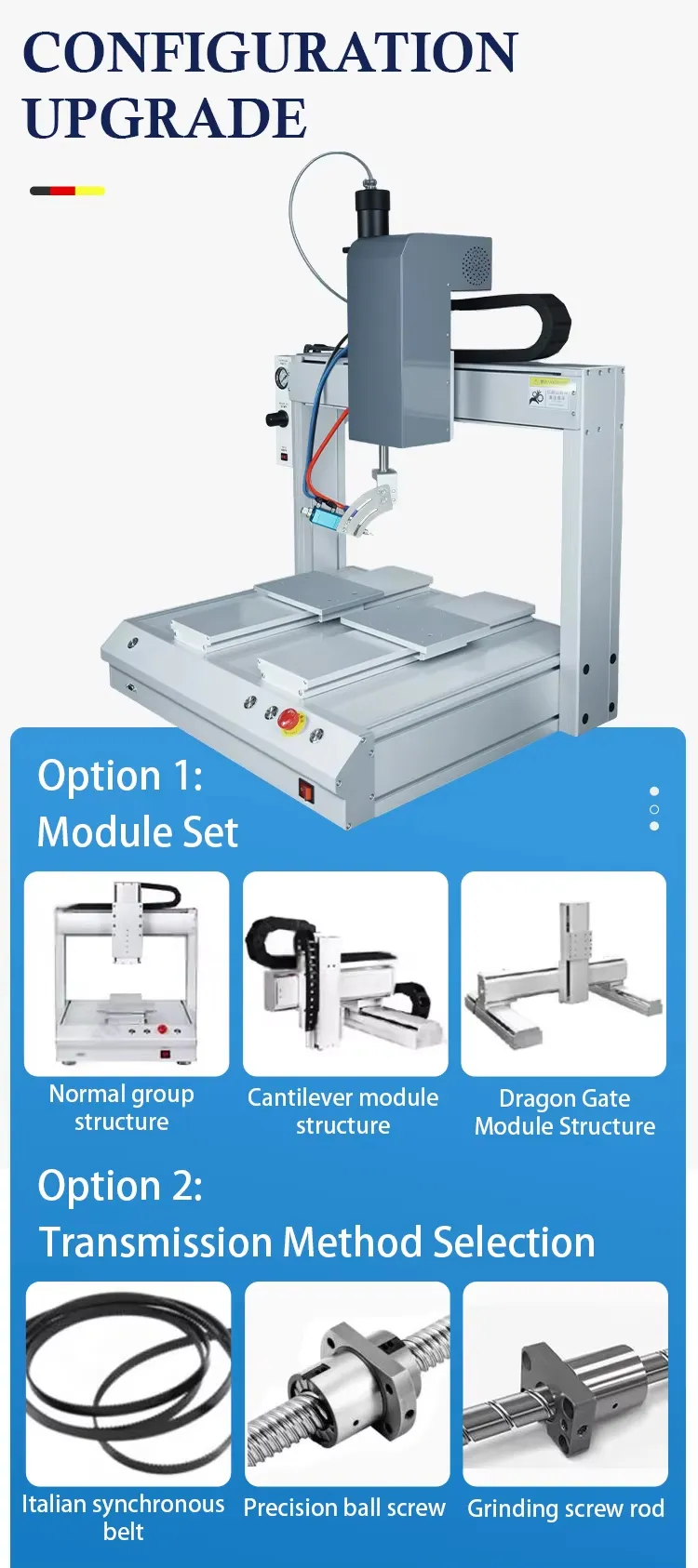

Repeatability (screw) 0.02 mm Transmission mode Belts / Spindles

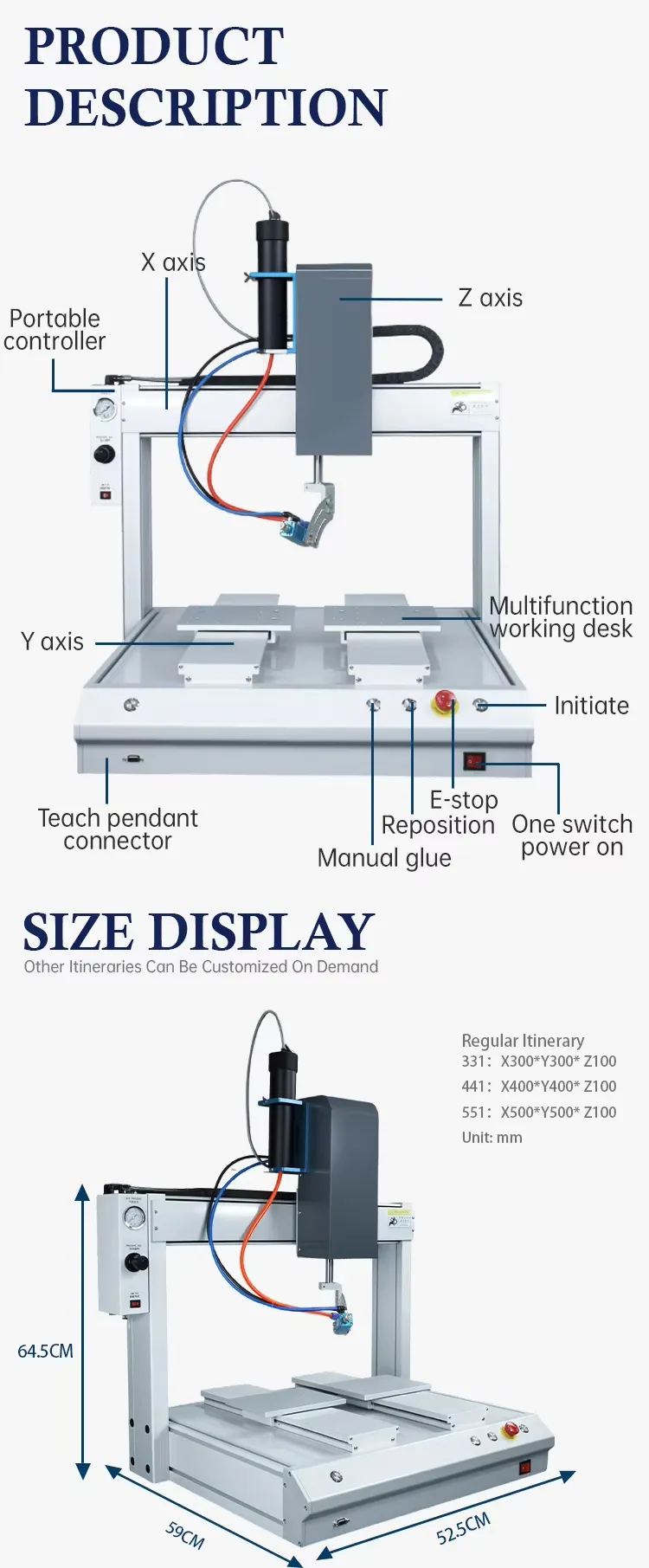

Exterior dimensions 520 × 580 × 650 mm Maximum load (belt) Y Axis: 1–5 kg
Z Axis: 2–3 kg
External interfaces RS-232 / USB 2.0 Maximum load (screw) Y Axis: 1–10 kg
Z Axis: 2–4 kg

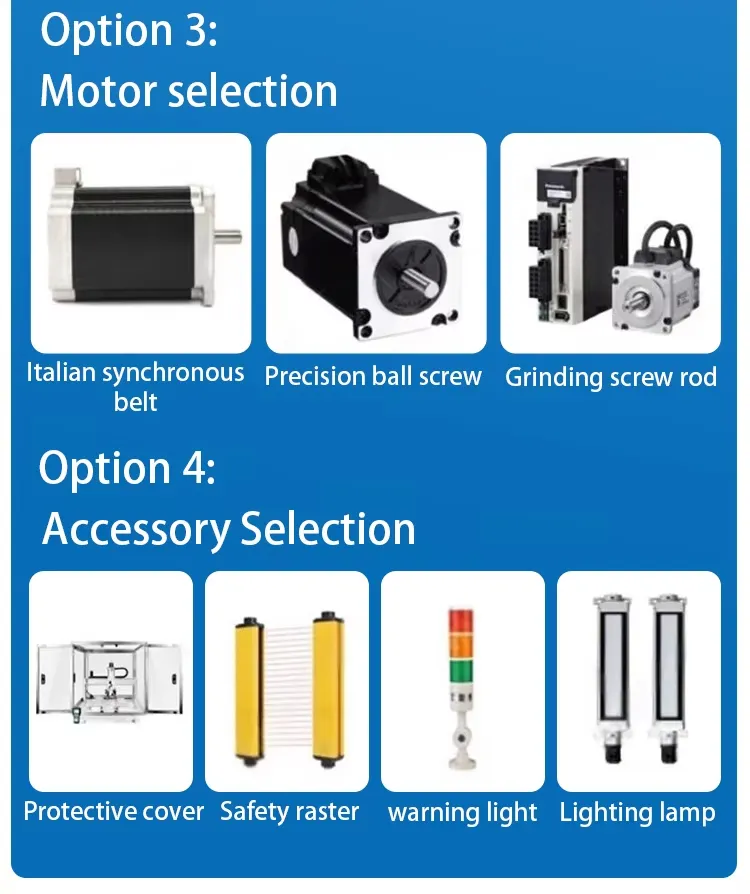

Motor Precision Stepper / Servo Motor Programming Teach-in Programming / Graphics Import
Supporting documentation CAD / DXF Program storage 1000 Sets of Data / 5000 Points
Program recording mode 999 Groups Minimum dispensing volume 0.01 ml
