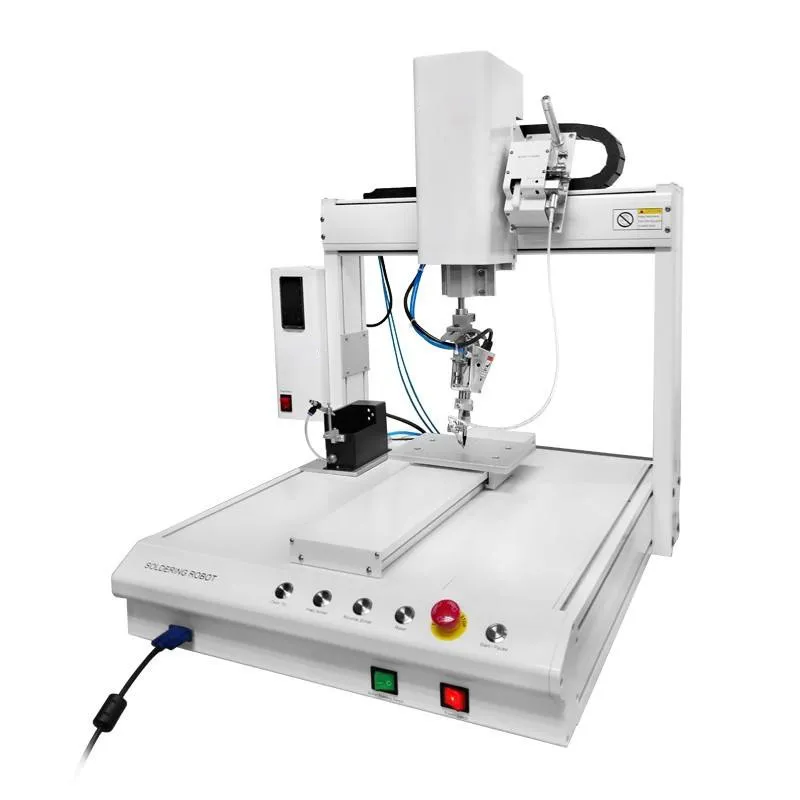

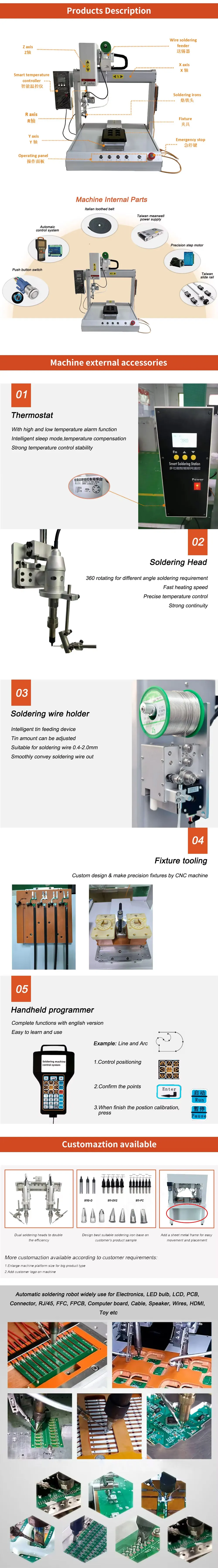

Features:

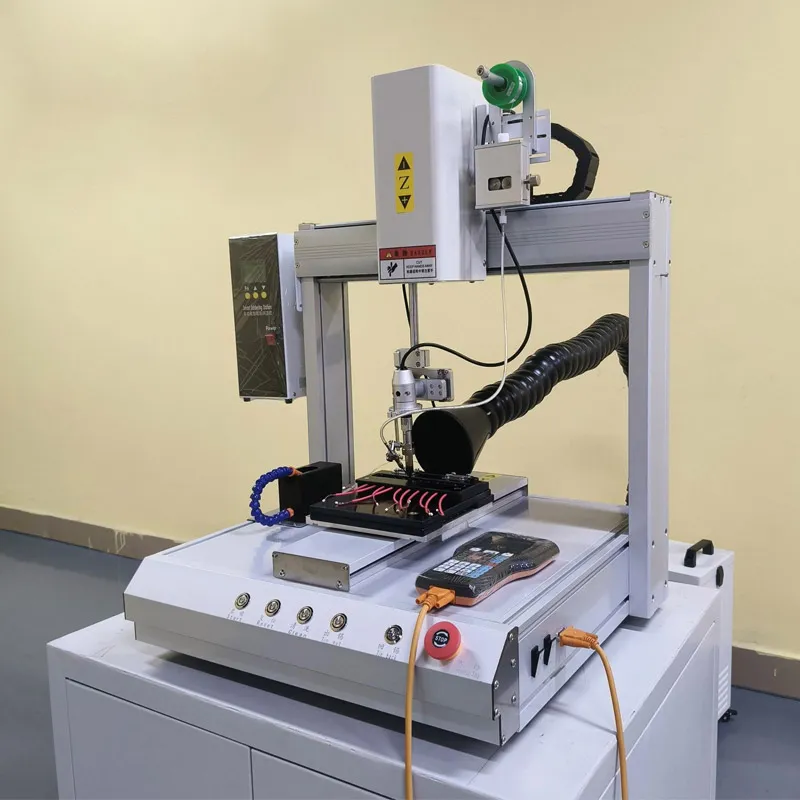

1. Four axis desktop type, can be placed on the production line.
2. The automatic soldering machine applicable for different products, soldering temperature can be se set freely. (Different temperature can be set for each solder joint).
3. Perfect soldering program, with spot/line/circle soldering function.

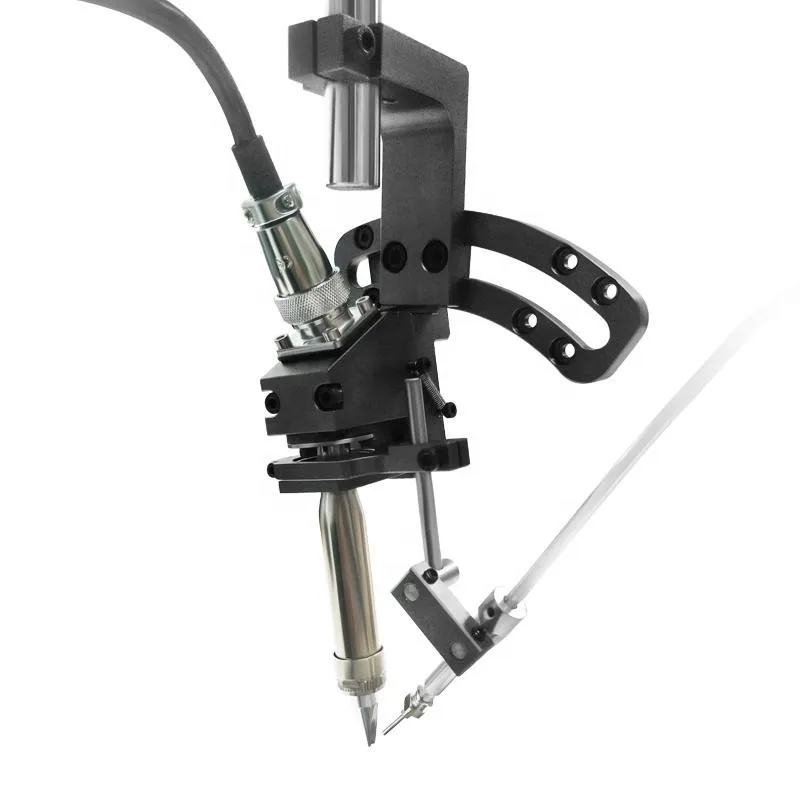

4. The soldering iron unit can be multi-directionally adjusted, which can protect the PCB and components from damage. It can achieve 360° free rotation by controlling the R-axis. According to different solder pad and components, you can set at will the solder feeding times, preheating time and soldering time, to achieve the complicated soldering work.
5. Numerically controlled temperature (static air condition: ±1℃).
6. With the handheld LCD Teaching Pendant, the programming is simple and easy to learn.
7. In the soldering process, the solder tip has rapid heat recovery and a long life span.
8. With an external I/O interface, it can fulfill the functions such as real-time control on peripheral devices, intelligent control, error alarm, etc. With the intelligent master control program, it realizes the automatic and smart soldering process.
9. With auto cleaning soldering tip function.
10. The smoke cover extracts smokes wherever you solder to keep air clean in workshop.(Optional)
11. Fixture and tooling available.
Paramenters:
|
Model
|
ZJ-331HX
(Single Y platform)
|
ZJ-5331HX
(Dual Y platforms)
|
ZJ-6331HX
(Dual soldering systems)
|
DZ
CUSTOMIZED
|
|
Voltage
|
AC 110/220V 50/60HZ
|
|
Power
|
350W
|
350W
|
700W
|
To order
|
|
Movable range
|
X：300mm
|
X：500mm
|
X：500mm
|
To order
|
|
Y：300mm
|
Y1/Y2：300mm
|
Y1/Y2：300mm
|
|
Z：100mm
|
Z：100mm
|
Z：100mm
|
|
R：360°
|
R：360°
|
R：360°
|
|
Max moving speed
|
X： 600mm/s
|
X：600mm/s
|
X：600mm/s
|
To order
|
|
Y：600mm/s
|
Y1/Y2：600mm/s
|
Y1/Y2：600mm/s
|
|
Z：400mm/s
|
Z：400mm/s
|
Z：400mm/s
|
|
R：300°/s
|
R：300°/s
|
R：300°/s
|
|
Repeat Positioning Accuracy
|
±0.02mm (X * Y * Z), ±0.05° (R)
|
To order
|
|
Maximum Load Weight
|
8KG (For Work Platform)
|
To order
|
|
Programming File Capacity
|
256MB, up to 999 files, single file up to 1000 points
|
To order
|
|
Preheating Temperature Range
|
0℃ ~ 550℃
|
To order
|
|
Solder Wire Diameter
|
0.4, 0.6, 0.8, 1.0, 1.2, 1.6 (mm)
|
To order
|
|
Tin feeding control
|
Precision stepper motor
|
To order
|
|
External Dimensions (L*W*H)
|
70*60*85 (CM)
|
85*60*85 (CM)
|
100*60*85 (CM)
|
To order
|
|
Weight
|
65KG
|
90KG
|
120KG
|
To order
|
