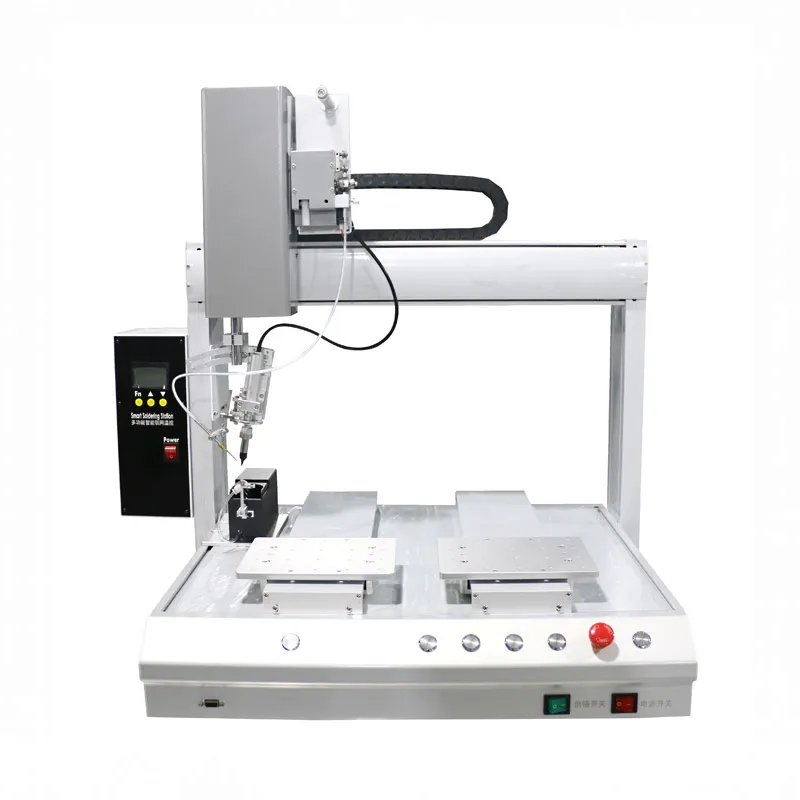

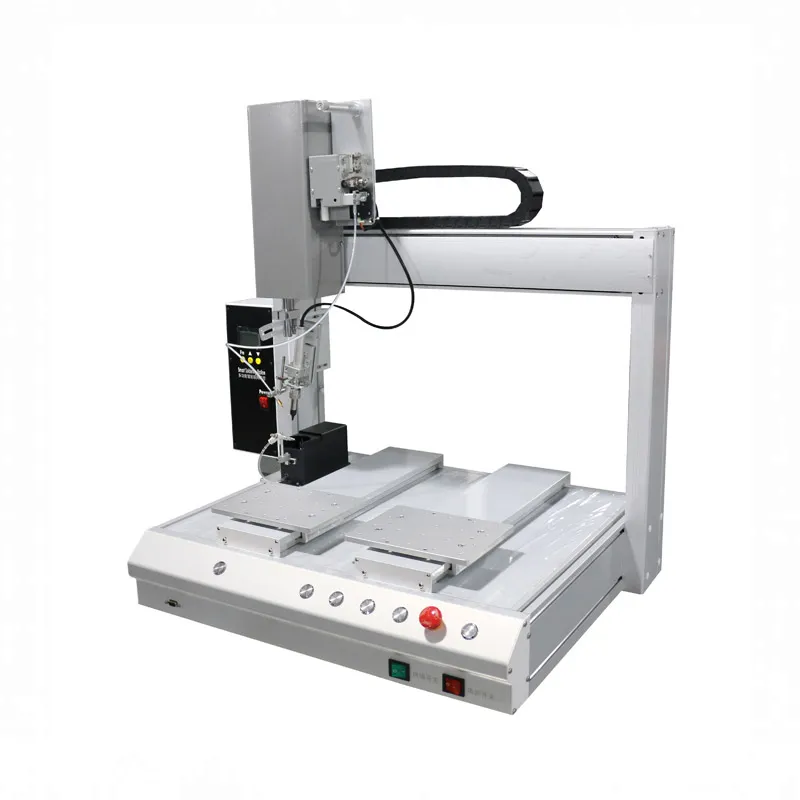

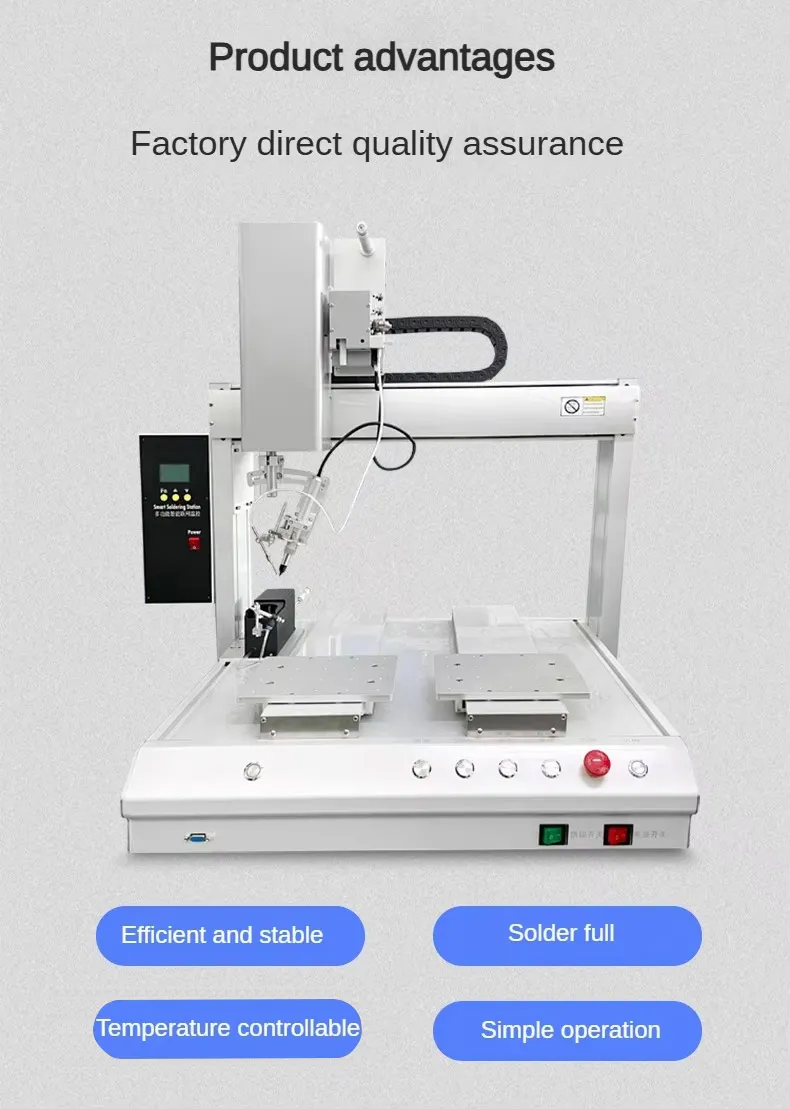

This automatic wire soldering machine is designed specifically for the electronics manufacturing industry to solve the challenges of precision welding processes,it is suitable for scenarios that are difficult to handle such as reflow soldering and wave soldering.Especially for hybrid circuit boards, thermal components and SMT back-end precision soldering,replace manual labor with automated welding to improve work efficiency and solder joint quality.
Features:

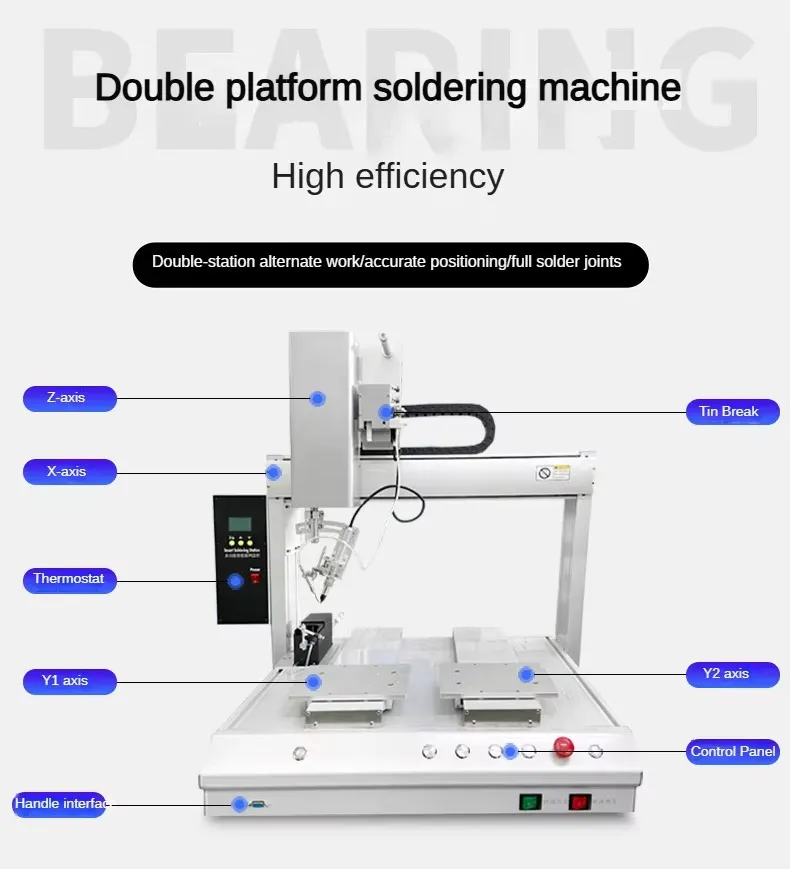

1.The dual platform alternately cycles welding, and the other station is loaded and unloaded while welding at one station, which significantly improves efficiency.
2.Precise positioning, full solder joints, and reduced manual intervention.
3.It supports dual modes of spot welding and drag welding (pull welding).
4.Multi-program storage: A single machine can handle different product welding tasks.
5.The pad spring buffer pressure can be fine-tuned to reduce pad damage.

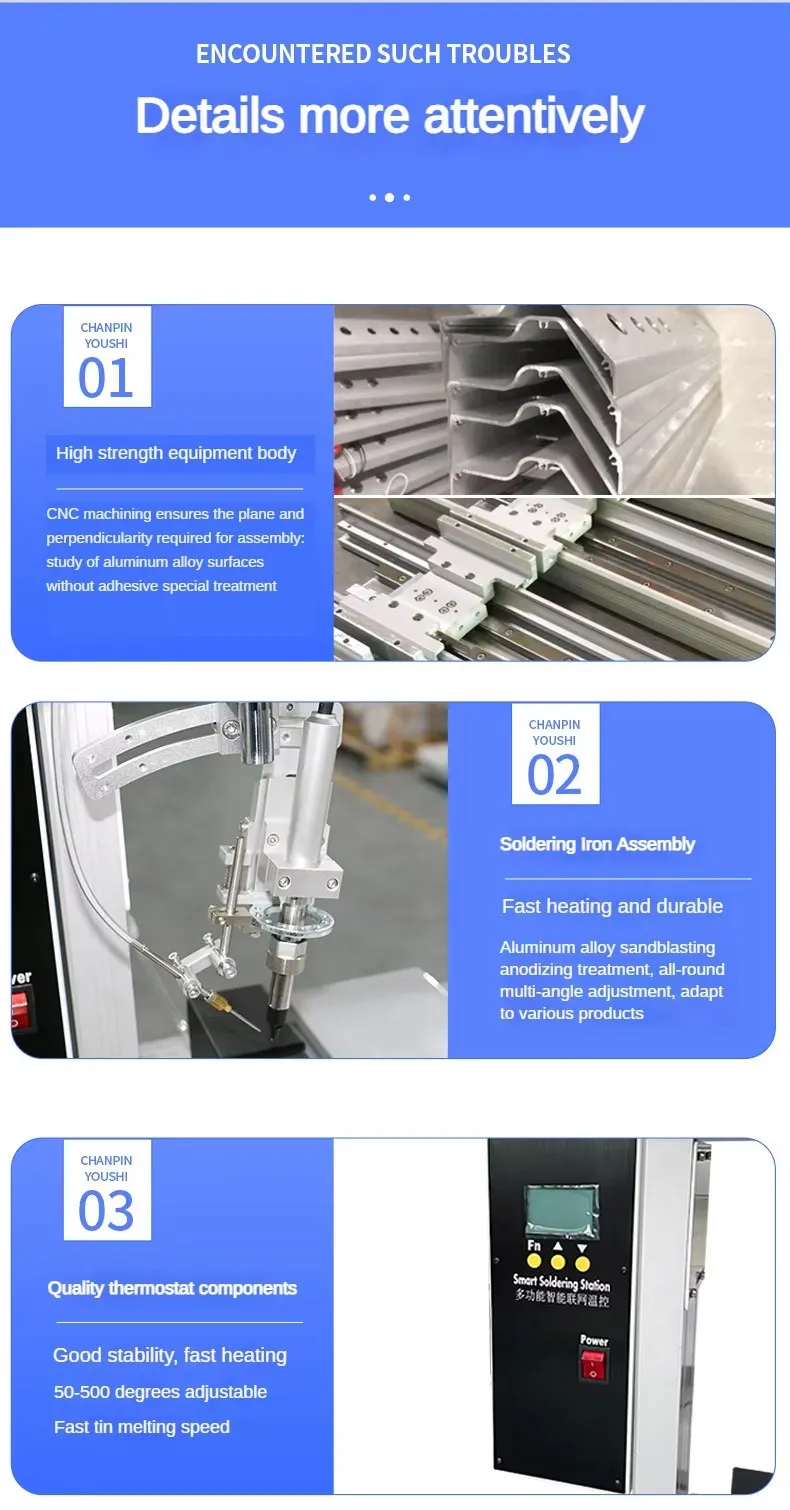

6.The soldering iron tip is designed for air blowing and cleaning, balancing the cleaning effect with temperature maintenance.

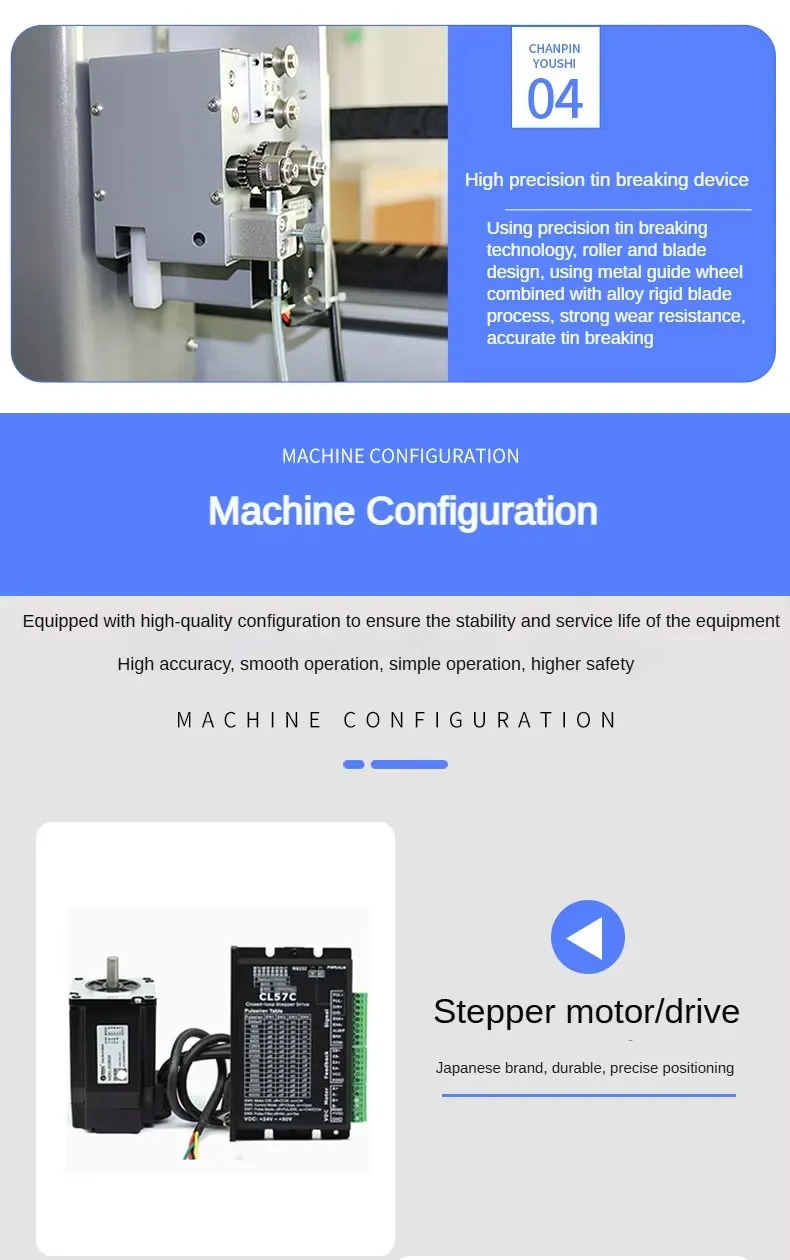

7.The solder feeder integrates tin breaking function to ensure the cleanliness of the solder joint.
Paramenters:
|
Model
|
XHD-AS4002Y
|
|
Working Area
|
X400mm*Y1/400mm*Y2/400mm*Z120mm*R360°
|
|
Drive Mode
|

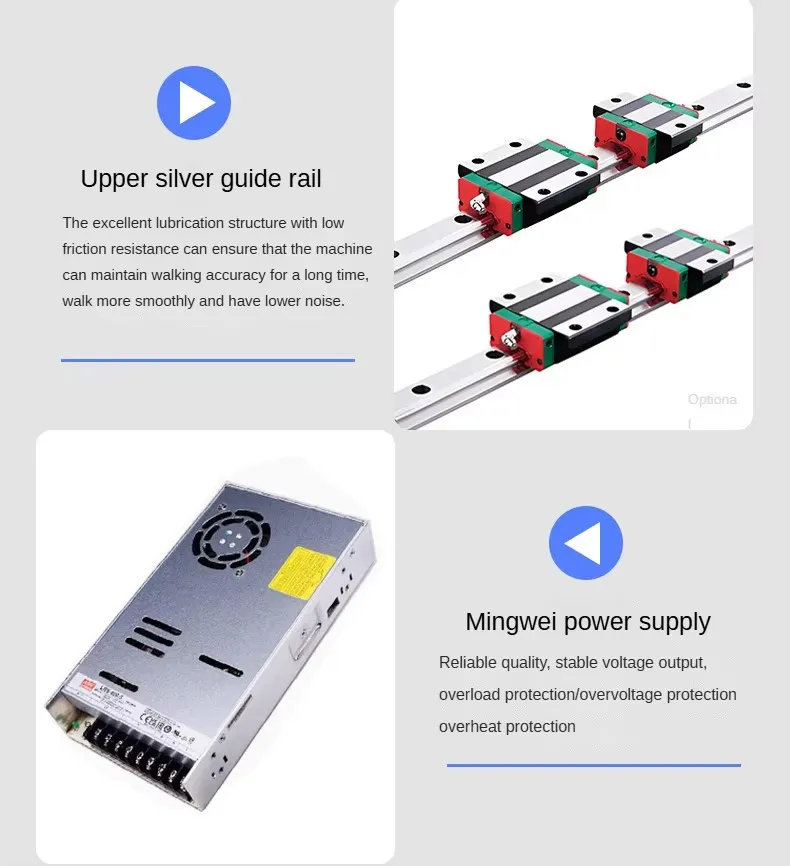

Stepping motor + straight guide / servo motor + ball screw (optional)
|
|
Positioning Accuracy
|
±0.01~0.03mm
|
|
Programming Mode
|
Teaching screen
|
|
Temperature Control System
|
1 high frequency intelligent constant temperature welding table, welding table with automatic temperature compensation, abnormal temperature alarm function
|
|
Automatic Tin Feeder
|
1 unit
|
|
Cleaning Cylinder
|
1 unit
|
|
Temperature Setting Range
|
0–500℃
|
|
Automatic Temperature Compensation
|
Yes
|
|
Cleaning Method
|
Air blowing cleaning
|
|
Applicable to Tin Wire Range (Outside Diameter)
|
Ø0.3~1.6mm
|
|
Full-voltage
|
220V 50HZ
|
|
Dimension (W*D*H)
|
610*690*845mm
|
|
Machine Weight
|
90kg
|
