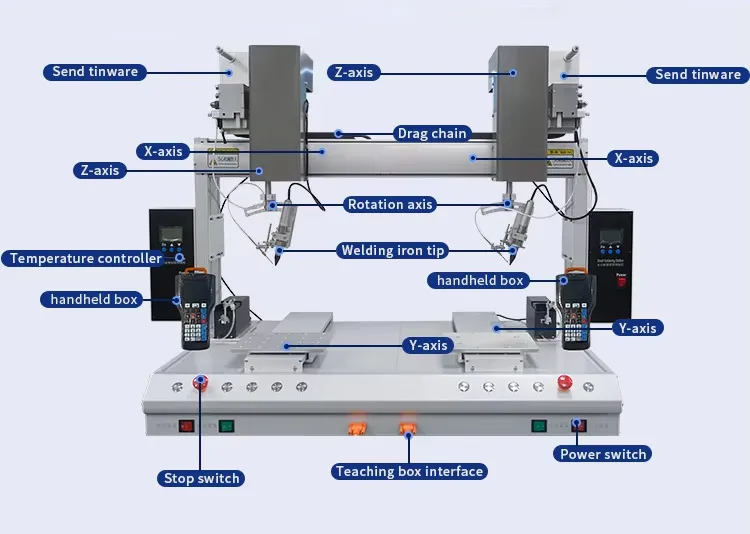

Features:
1.Double-head double-station welding at the same time double the production efficiency
2.Precision temperature controller, fast temperature compensation
3.German WELLER imported heating element, uniform and stable temperature
4.Automatic soldering machine with spot welding, inclined welding, buffeting welding and other functions.
5.Solder control system adopts the world's leading motion control card, more humane than PLC programming. The working program of the device can be copied point-to-point and block-to-block, which reduces the time of program writing.
6.Automatic soldering machine has the function of automatically removing the welding head, which can improve the efficiency of
welding to a certain extent.
Paramenters:
|
Model
|
XHD-6331HX (Dual soldering systems)
|
|
Voltage
|
AC 110/220V 50/60HZ
|
|
Power
|
700W
|
|
Movable Range
|
X 500mm
|
|
Y1/Y2 300mm
|
|
Z 100mm
|
|
R 360°
|
|
Max Moving Speed
|
X 600mm/s
|
|
Y1/Y2 600mm/s
|
|
Z 400mm/s
|
|
R 300°/s
|
|
Repeat Positioning Accuracy
|
±0.02mm (X*Y*Z), ±0.05° (R)
|
|
Maximum Load Weight
|
8KG (For Work Platform)
|
|
Programming File Capacity
|
256MB, up to 999 files, single file up to 1000 points
|
|
Preheating Temperature Range
|
0℃ ~ 550℃
|
|
Solder Wire Diameter
|
0.4 / 0.6 / 0.8 / 1.0 / 1.2 / 1.6 mm
|
|
Tin Feeding Control
|
Precision Stepper Motor
|
|
External Dimensions (L×W×H)
|
100×60×85 cm
|
|
Weight
|
120KG
|
