Features:

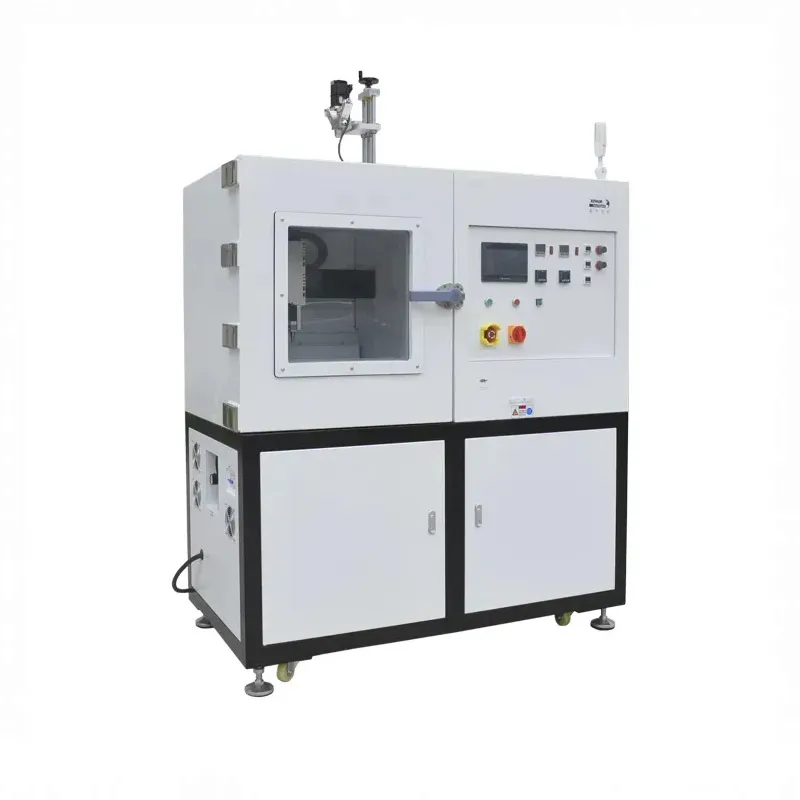

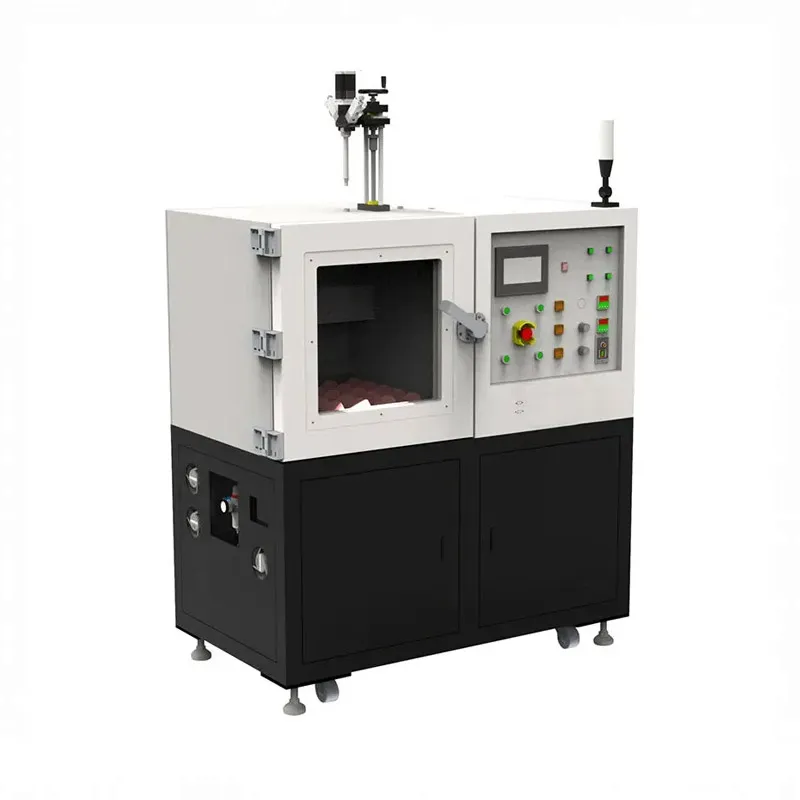

* The automatic vacuum glue potting machine functions of drawing points, lines, surfaces, circle, consecutive complement of irregular curves and three axes linkage available, applicable to any irregular product potting.
* Potting volume, speed, time, and halting time can be set by parameters; glue outflow is quite stable with no leaking or dripping.
* CCD visual programming optional, realizing fast programming process.
* Parameters on the vacuum gauge adjustable, the pump automatically stops working when vacuum degree reaches the limit.
* Equipped with safety light curtain, make sure the equipment safely work.
* Full automatic process of glue mixing, potting, and various route potting.
* Glue mixed as needed before and in the process of potting, saving glue as much as possible.
* Dual glue tanks to store A and B glue separately, helping to store glue for a long time.
* Mixing ratio adjustable from 100:100 to 100:20 or from100:20 to 100:10, dynamic or static mixing mode optional to ensure fully
mixing.
* Unique control system helps to avoid uneven potting, drawing and bubble in the potting process without impaction from air
pressure.
* Height-adjusting device of Z-axis enables to work for workpiece of different height.
* (Automatic alarming by up /low level materials sensors to avoid short of material.
* Optional functions of stirring, heating and vacuum defoamation, fit for various potting /dispensing process.
Paramenters:
|
Models
|
XHD-SR4401
|
|
Operation mode
|
Single action, linkage, automatic
|
|
Proportioning accuracy
|
≤ ±3%
|
|
Ejection accuracy
|
≤ ±3%
|
|
Mixing ratio
|
1:1~20:1 (customizable)
|
|
Glue dispensing speed
|
0.1~50G/S (set according to customer product conditions)
|
|
Storage tank
|
2 stainless steel vacuum storage barrels, 1 cleaning barrel (the volume can be customized according to customer requirements)
|
|
Mixed mode
|
Dynamic/static hybrid (optional)
|
|
Operating system
|
PLC PC/teaching pendant
|
|
Operation mode
|
Foot switch + start switch
|
|
Measurement mode
|
2 independent brand high-precision metering pumps (gear pump/screw pump optional)
|
|
Mixing device
|
Double layer mixing/single layer mixing (optional)
|
|
Pipeline circulation system
|
Optional
|
|
Anti curing function
|
Optional
|
|
Input power
|
AC220V 50-60Hz
|
|
Operating humidity
|
20-90% no condensation
|
|
Overall dimension
|
W1960*L900*H1900mm (for reference only, subject to actual product)
|
|
Weight
|
Around 1500kg
|
