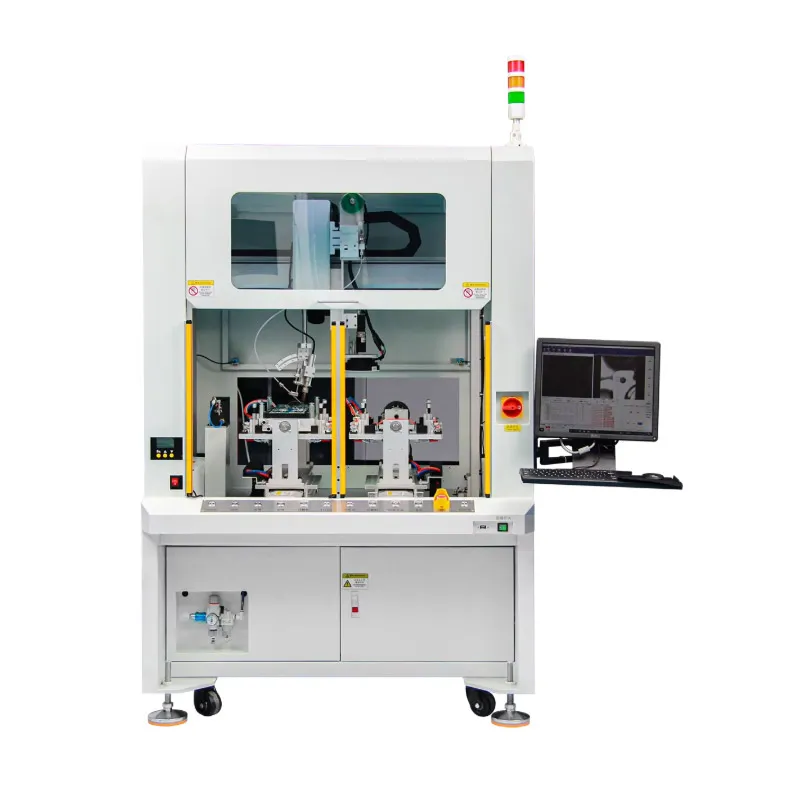

Vertical Double Station CCD Visual Automatic Soldering Machine for SMT/PCBA

Home / Automatic Soldering Machine / Vertical Double Station CCD Visual Automatic Soldering Machine for SMT/PCBA
  • SMT soldering machine
  • Automatic Soldering Machine for PCBA
  • SMT soldering machine
  • Automatic Soldering Machine for PCBA

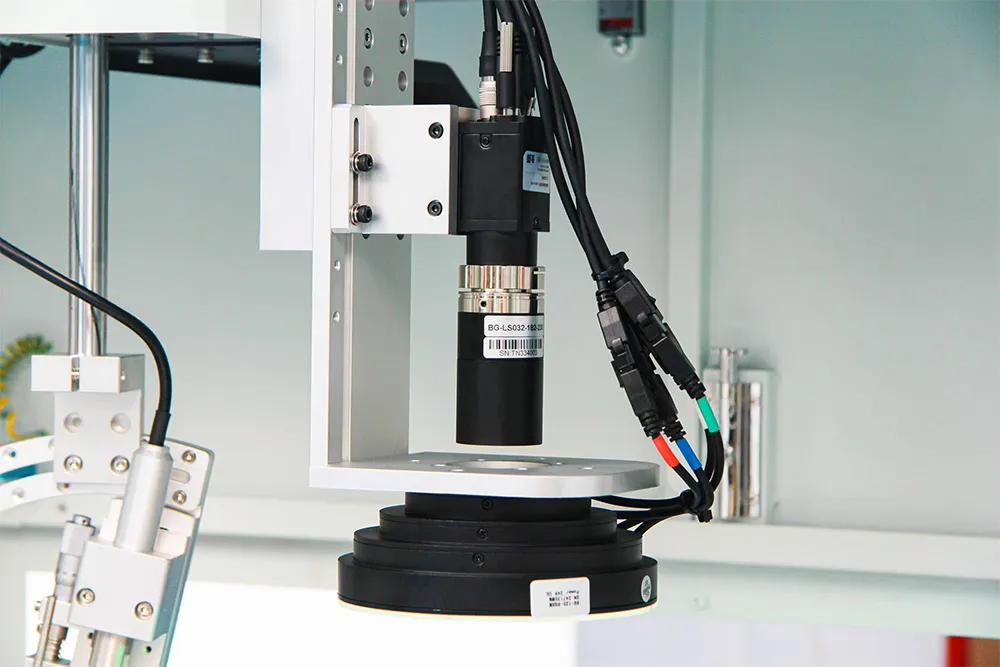

    Vision System
    The automatic soldering machine utilizes high-resolution cameras (5MP+) with advanced image processing algorithms (0.01mm positioning accuracy) to precisely identify and locate solder joints, ensuring soldering precision and consistency.

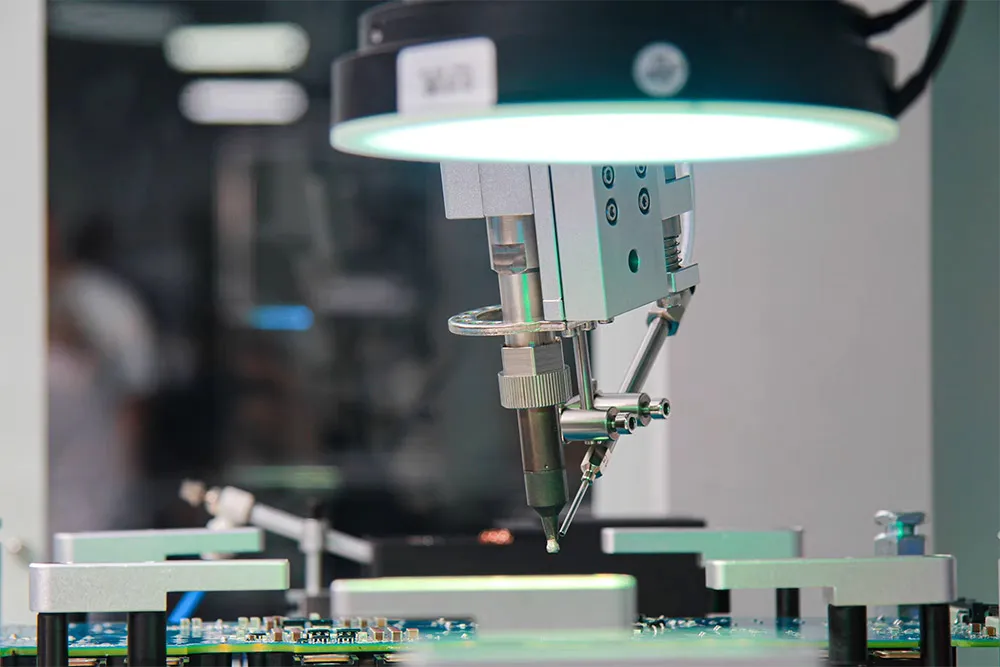

    Soldering Iron & Heating System
    The auto soldering machine equipped with high-quality JIS-certified tips and PID temperature control (range: 150–450°C ±1°C), enabling stable and efficient solder melting (1–3 sec heating time).

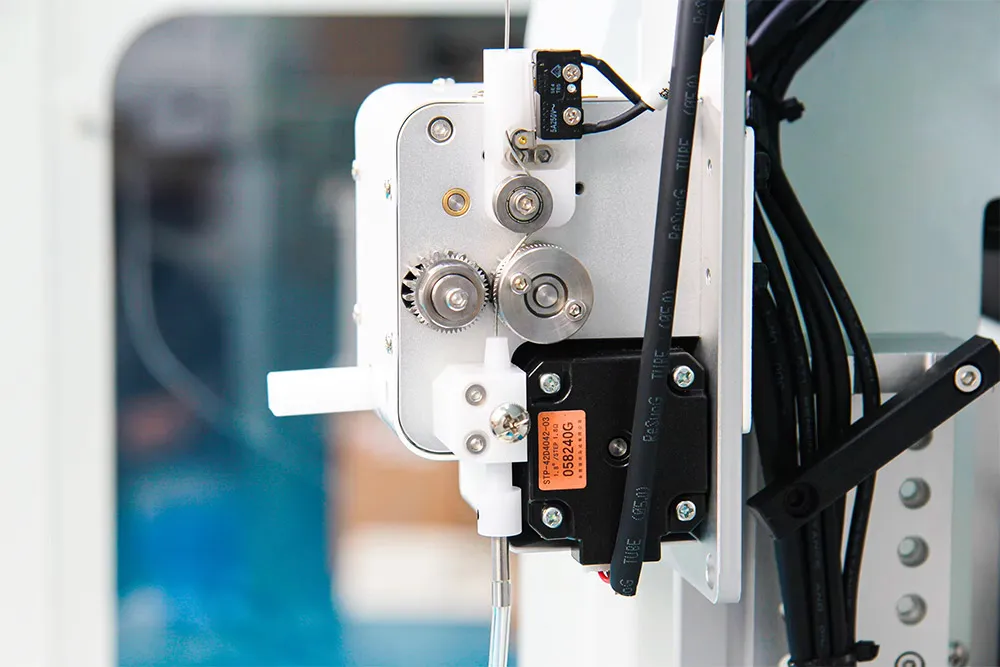

    Automatic Solder Feeder
    Servo-driven mechanism with closed-loop control (±0.5mm wire feed accuracy) ensures consistent solder volume during continuous operation (0.5–1.2mm wire diameter).
    Control System
    Industrial PC + multi-axis motion controller (EtherCAT, <1ms cycle time) provides synchronized control of all components (MTBF >10,000 hours).
    Workstation & Fixturing
    Double Y axis type,Rotary mechanism with pneumatic clamping (90° flip in 2 sec) enables dual-side soldering without manual repositioning, increasing throughput by 40%.

Paramenters:

Item Specification
Soldering Travel Range (X) 750*(Y1) 450*(Y2) 450*(Z) 100*(R1) 360° (Unit:mm)
Motion Speed 0-800mm/s
Motor Type Servo motor
Program Recording Mode 99 groups
Repeatability Accuracy ±0.03 mm
Control System Motion control card + PC
Linear Guide HIWIN
Ball Screw TBI
Photoelectric Sensor Panasonic, Omron
I/O Signal 12 Inputs / 12 Outputs
Display Method Display
Motion Graphics Spot soldering / Drag soldering / Arc drag soldering
Fume Extraction Method Fume Extraction Fan

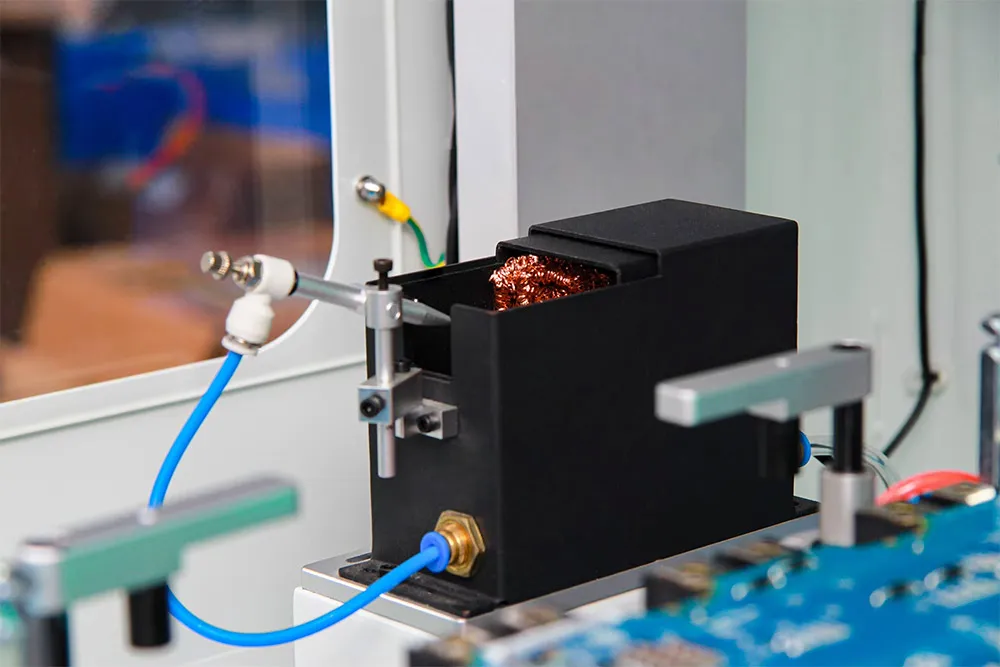

Cleaning Automatic
Power Rating 1.8KW
Product Positioning Cylinder rotates 90° for pressing + Flips for dual-side soldering
Power Supply AC220V / 50HZ
Dimensions L1230mm * W1200mm * H1800mm

Vertical Double Station CCD Visual Automatic Soldering Machine for SMT/PCBACCD Visual Automatic Soldering Machine/><img src=Automatic Soldering MachineVertical Automatic Soldering Machine
