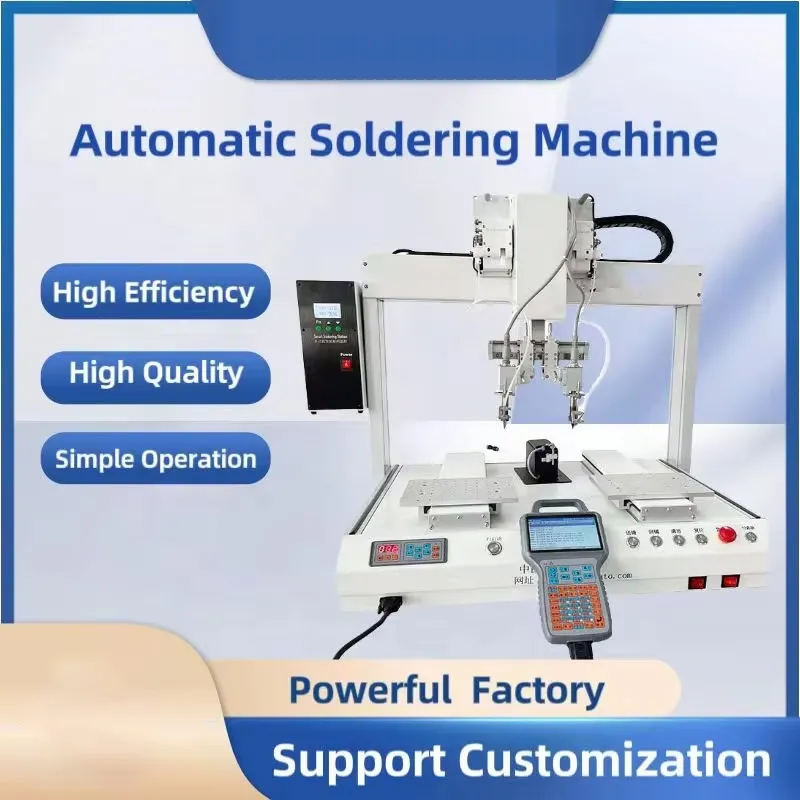

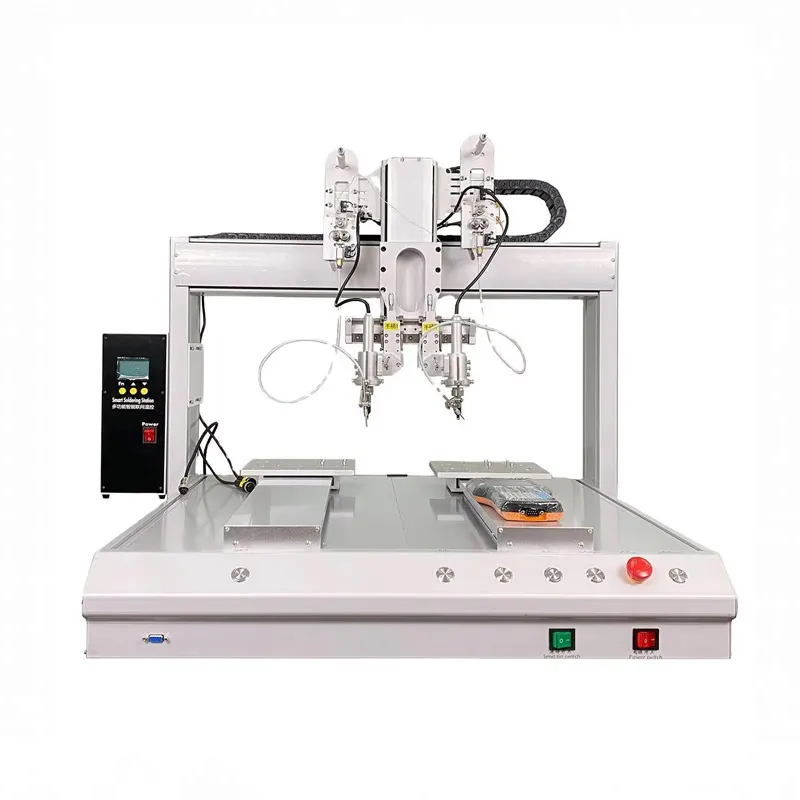

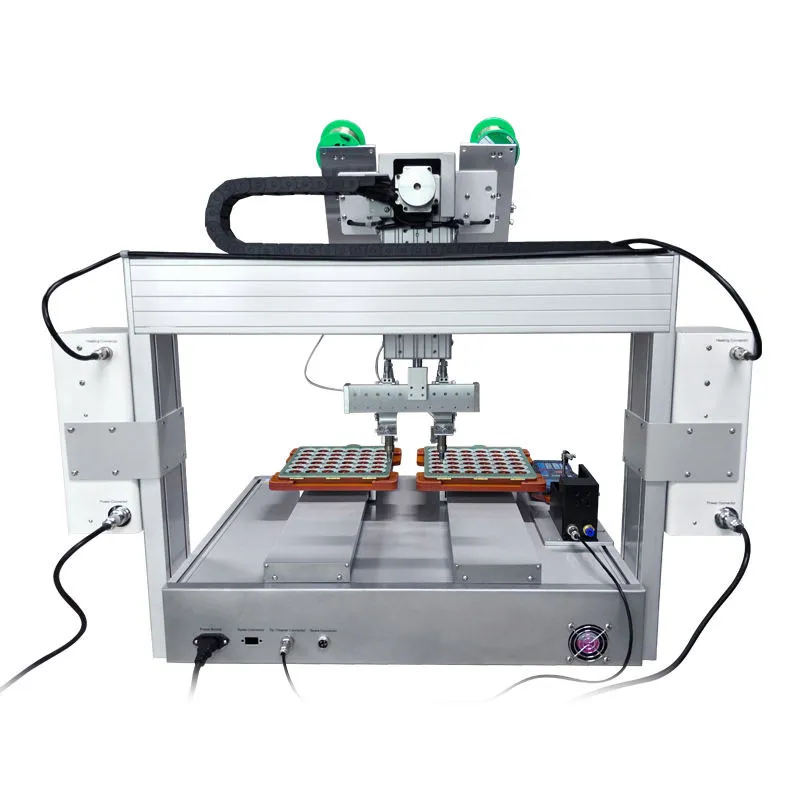

Features:
1) Double head soldering irons, double stations can achieve higher efficiency and more convenient operation.
2) With the function of spot welding, drag soldering, automatic cleaning and etc.
3) With the function of position correct, position copy, array, auto-fixed location and etc. This machine can be easily to operate
4) All kinds of parameters can be set to make sure the high welding quality.
5) Using the high-frequency added constant iron raise temperature and automatic feeding soldering wire.
6)Using the 5 axis movement control system for welding spot to exact fixed position.
Paramenters:
|
Model
|
XHD-T43311
|
XHD-T44411
|
XHD-T53311
|
XHD-T54411
|
|
Stroke X
|
400mm
|
400mm
|
500mm
|
500mm
|
|
Stroke Y1
|
300mm
|
400mm
|
300mm
|
400mm
|
|
Stroke Y2
|
300mm
|
400mm
|
300mm
|
400mm
|
|
Stroke Z
|
100mm
|
100mm
|
100mm
|
100mm
|
|
Rotary R axis
|
with R axis 360° (optional no R axis)
|
|
Rated speed
|
500mm/s (X-Y-Z), Max: 1000mm/s
|
|
Soldering Tip
|
Default 1 PC (optional 2 PCS)
|
|
Tin thickness
|
0.3-1.6mm
|
|
Temperature
|
normal—500°C
|
|
Heating
|
150w, 5 second to 300°C
|
|
Drive
|

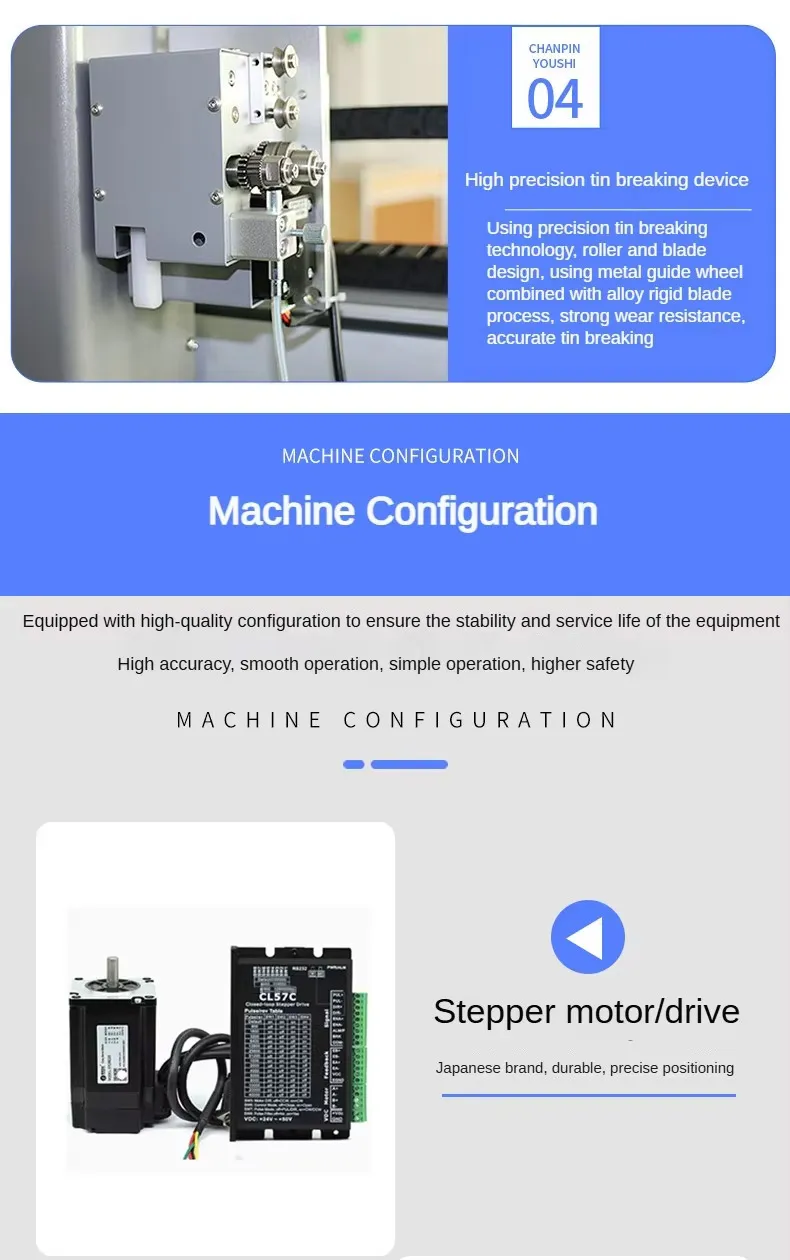

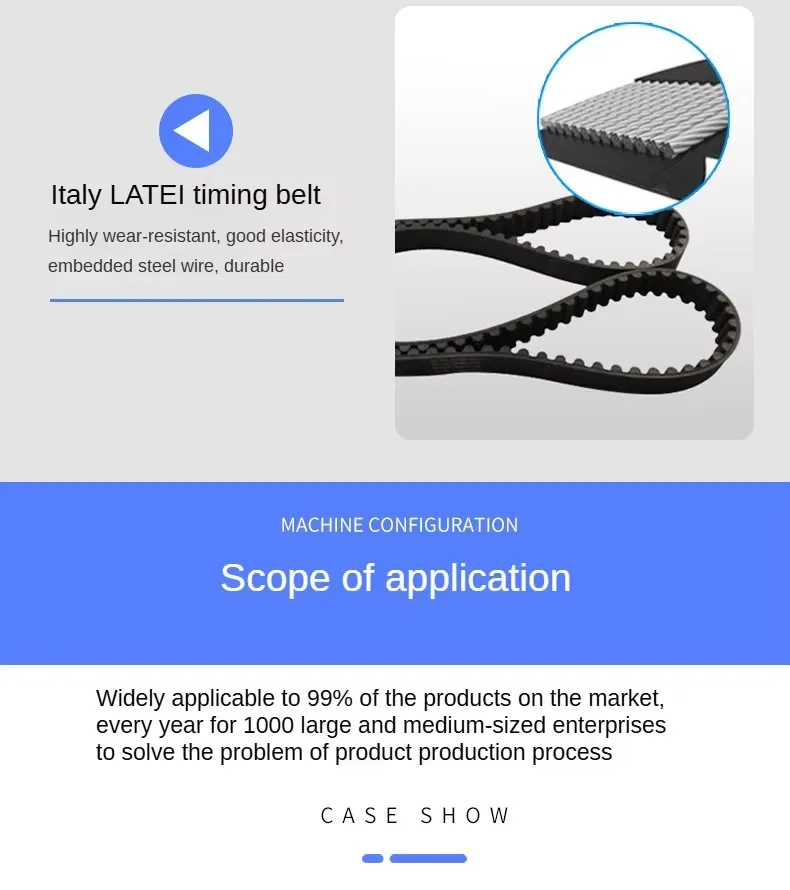

Precision stepping motor/servo motor + synchronous belt/ball screw
|
|
Motion mode
|
Point to point; line; circle
|
|
Positioning Accuracy
|
±0.02mm
|
|
Program
|
Control Teaching Box/PC
|
|
External
|
RS232
|
|
Program storage
|
100 groups / 1000 points per group
|
|
Power
|
2×220V 50Hz
|
|
Air
|
0.5Mpa
|
|
Dimension L
|
580mm
|
680mm
|
580mm
|
680mm
|
|
Dimension W
|
520mm
|
620mm
|
720mm
|
720mm
|
|
Dimension H
|
603mm
|
|
Weight
|
75kg
|
80kg
|
80kg
|
85kg
|
