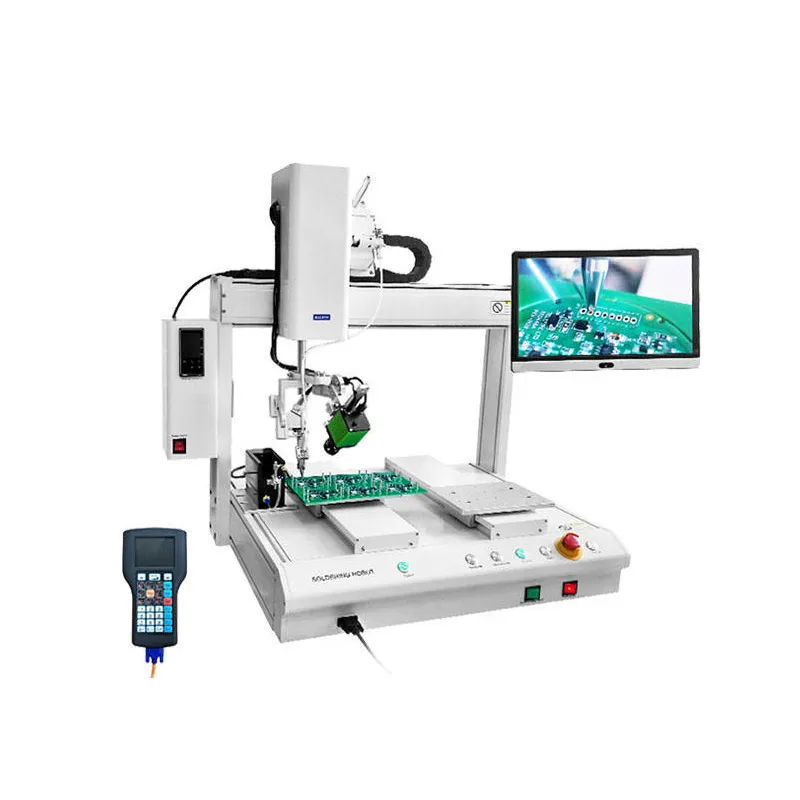

4-Axis Dual-Station Automatic SMD Soldering Machine with CCD Vision

Home / Automatic Soldering Machine / 4-Axis Dual-Station Automatic SMD Soldering Machine with CCD Vision
  • automatic smd soldering machine
  • 4 Axis Automatic SMD Soldering Machine
  • Automatic SMD Soldering Machine with Vision
  • automatic smd soldering machine
  • 4 Axis Automatic SMD Soldering Machine
  • Automatic SMD Soldering Machine with Vision

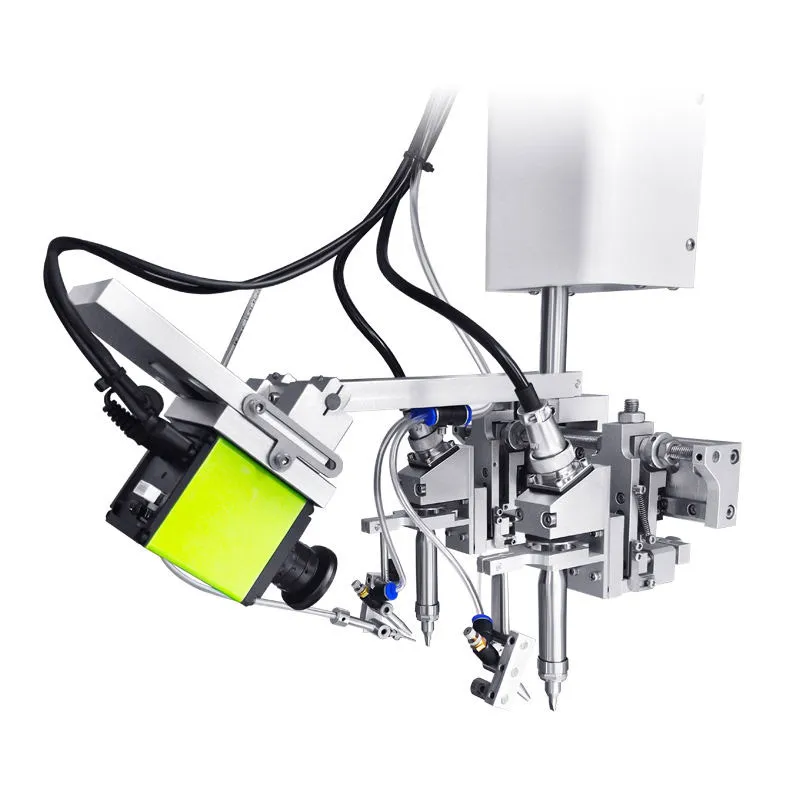

    The 4-axis dual-station automatic soldering machine integrates an intelligent CCD vision module for real-time positional correction, ensuring consistent solder joint quality even on high-density boards.
    The dual-station configuration allows one side to be loaded while the other is actively soldering, significantly cutting down on production downtime and boosting overall line output. Its benchtop form factor makes it easy to integrate directly into existing assembly workflows without requiring dedicated floor space.
    This automatic soldering machine  is particularly well-suited for applications that fall outside the capabilities of reflow and wave soldering — including heat-sensitive components, mixed-technology boards, and SMD back-end assembly. Common use cases include PCB soldering lines, USB and connector termination, LED strip interconnects, DC plug tinning, and charger component assembly.

Features:

Paramenters:

Model ZJ331R ZJ441R ZJ551R ZJ531R
Stroke S 300mm 400mm 500mm 500mm
Stroke S 300mm 400mm 500mm 300mm
Stroke S 0mm 0mm 0mm 300mm
Stroke S 100mm 100mm 100mm 100mm
Rated Speed Max 500mm/s (X-Y-Z) 500mm/s (X-Y-Z) 500mm/s (X-Y-Z) 500mm/s (X-Y-Z)
R-axis 360°
Repeatability ±0.02mm ±0.02mm ±0.02mm ±0.02mm
Drive Method Stepper Motor / Servo + Timing Belt / Ball Screw
Control System Programming Method,CCD control system
Operation Mode Teaching Pendant / PC
Usable Graphics Spot Welding, Drag Welding, Arc Welding, Shake Welding, Shake Brazing
Program Capacity External Connection Method
Communication Interface RS232
Power Supply 220V / 50Hz
Input Power 4–7 kgf/cm²
Solder Wire Diameter 0.3–1.6mm
Heating Power 90W
Heating Rate 10–20s
Temperature Range 0–500℃
Overall Dimension (L×W×H) 590×520×603mm 690×690×603mm 790×790×603mm 790×520×603mm
Machine Weight Approx. 55kg Approx. 55kg Approx. 75kg Approx. 45kg

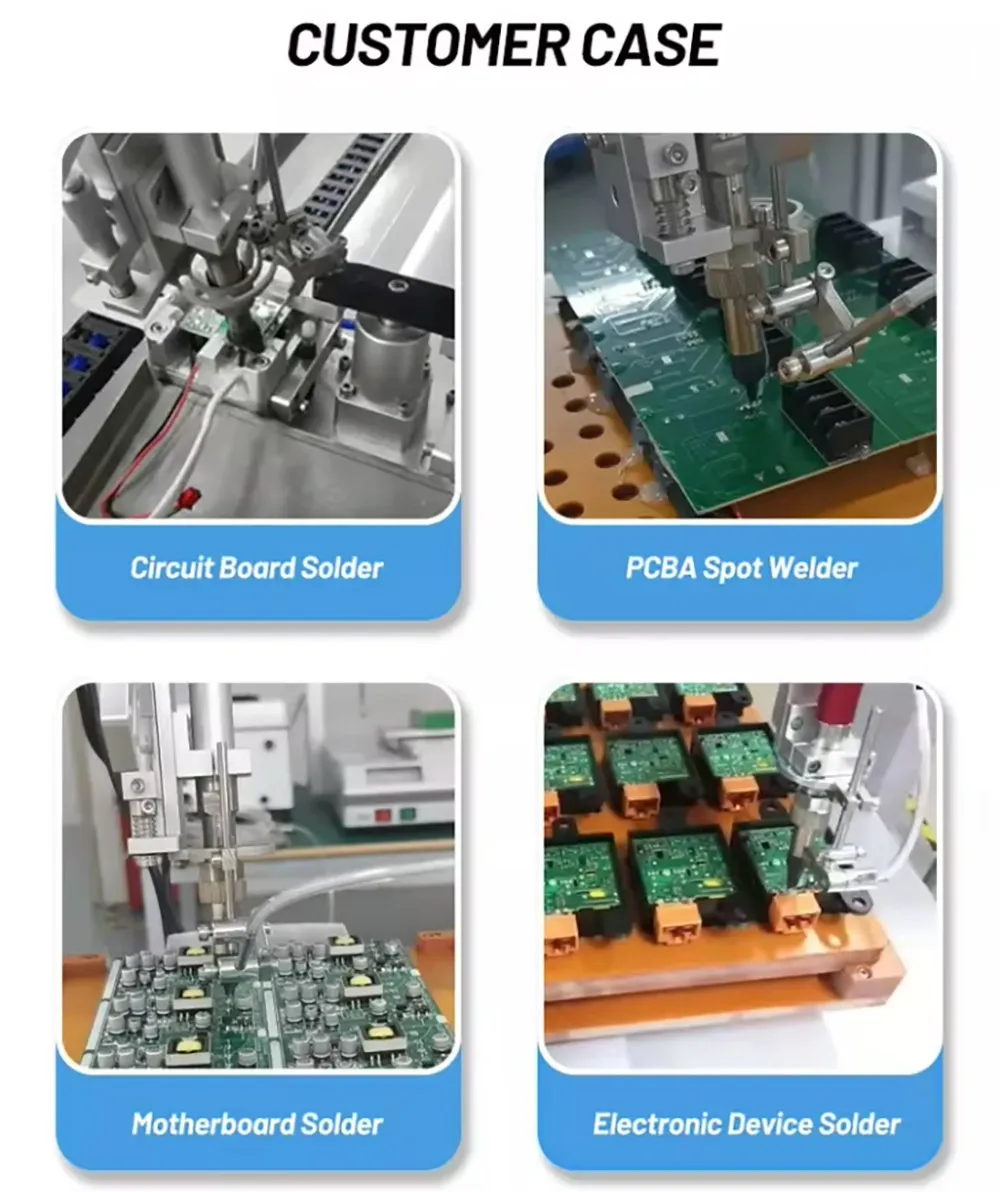

customer case Desktop Double Station 4-Axis Automatic SMD Soldering Machine with Vision
