Features:

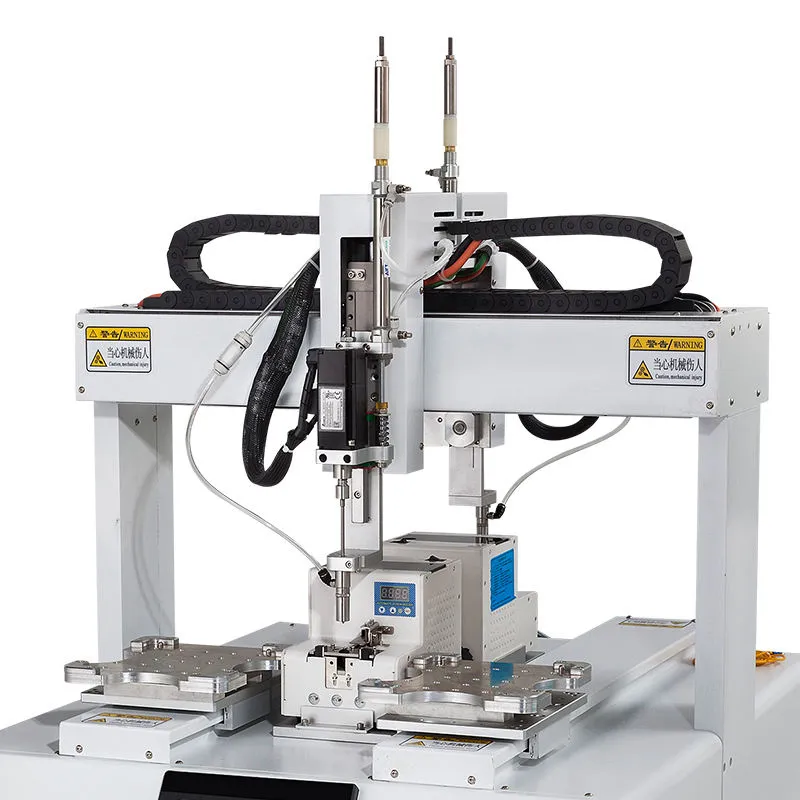

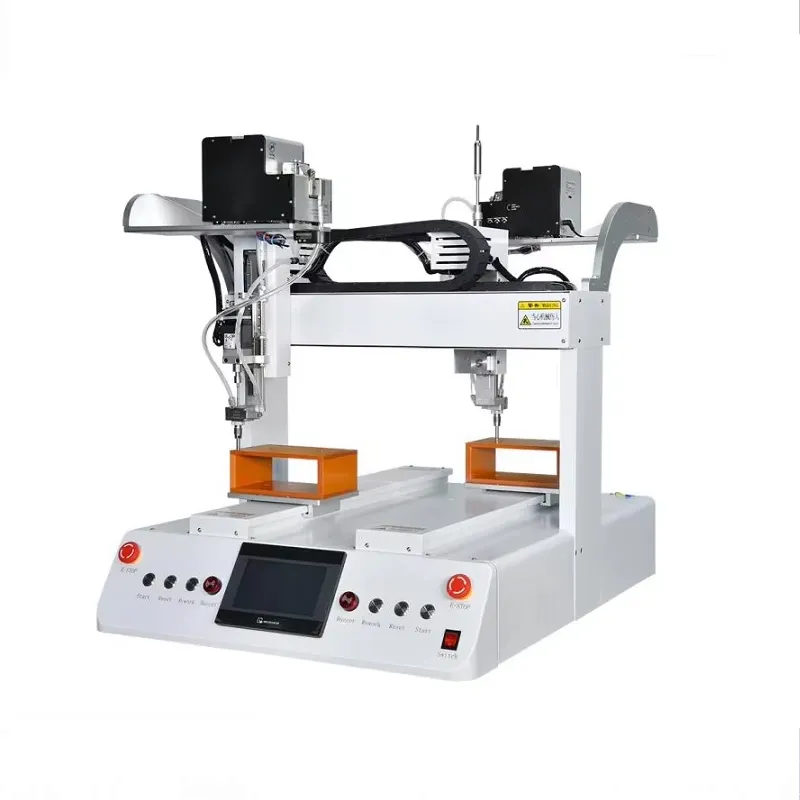

1.The automatic screw driver machine adopts a permanent magnetic suction screw structure can realize the locking function of deep hole/bevel screw/meson screw in product locking screw position..
2.Two-mode left-right alternating replacement of products to achieve high efficiency mode of work
3.Supporting Leakage Lock/Sliding Teeth/Floating Teeth Alarm Function
4.Supporting the regulation function of pre-placing, post-placing and preplacing
5.Supporting automatic induction start-up operation function and servo batch speed and torsion self-regulation function
6.Supporting hand-driven adjusting function for adjusting and comparing lock screw points
7.Servo motor or electric screwdriver are optional. Both of them can adjust the torque and rotation speed freely.
Paramenters:
|
Model
|
XHD-5021-2Z
|
XHD-5023-2Z
|
XHD-4220-2Z
|
XHD-4222-2Z
|
|
Axis Range
|
X1, X2
|
210 mm
|
210 mm
|
200 mm
|
200 mm
|
|
Y-1
|
500 mm
|
500 mm
|
420 mm
|
420 mm
|
|
Y-2
|
500 mm
|
500 mm
|
420 mm
|
|
|
Z
|
135 mm
|
135 mm
|
135 mm × 2Z
|
135 mm
|
|
Dimension (mm)
|
L
|
950
|
950
|
970
|
830
|
|
W
|
720
|
720
|
820
|
820
|
|
H
|
900
|
900
|
900
|
900
|
|
KG
|
100
|
100
|
100
|
100
|
|
Power Source
|
220V / 110V (Please specify)
|
|
Motor
|
Stepper Motor (Specify if servo motor is needed)
|
|
Precision
|
±0.02 mm
|
|
Control System
|
SCM + Touch Screen
|
|
Screwing Time per Screw
|
1 – 1.5 s/piece
|
|
Suitable Screw Size
|
M1 – M6
|
|
Program Capacity
|
999 files, each file can save up to 999 points
|
|
Movement Speed
|
X/Y Axis ≤ 500 mm/s, Z Axis ≤ 300 mm/s
|
