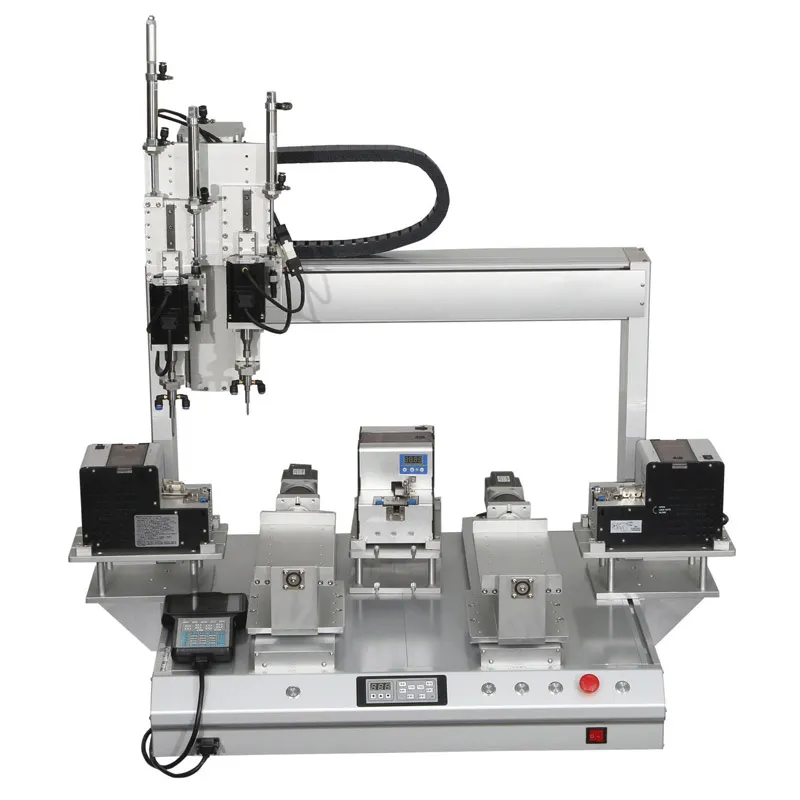

Desktop 4-Axis Automatic Screw Driver Machine with R Axis 360°

Home / Automatic Screw Fastening Machine / Desktop 4-Axis Automatic Screw Driver Machine with R Axis 360°

The automatic screw driver machine equipped with rotary product placement platform can rotate from 0° to 360°, allowing screws to be tightened from multiple sides, perfectly suited for complex or multi-surface assembly applications.
The automatic screw driving system is with various types for screw tightening solutions: single platform, double platform, dual screw feeding systems, double screw feeder with blowing and pneumatic mode to meet different product requirements.
The machine is programmed by teaching pendant for easy operation with detection functions as leak lock,sliding teeth,floating lock and so on.
The automatic screw driving machine is applied to M1-M8 screws, mainly applicable for socket, switch, LED, valve, toy, automobile, household appliances, 3C industry etc.

Paramenters:

Model		ZJ-T43311	ZJ-T44411	ZJ-T53311	ZJ-T54411	ZJ-T43312	ZJ-T44412	ZJ-T53312	ZJ-T54412
Stroke	X	400mm	400mm	500mm	500mm	400mm	400mm	500mm	500mm
	Y1,Y2	300mm	400mm	300mm	400mm	300mm	400mm	300mm	400mm
	Z	100mm
	R	0~360°
Number of screwdriver set head		1				2
Rated speed (MAX)		500(1000) mm/s (X-Y-Z)
Repeatability		±0.02mm

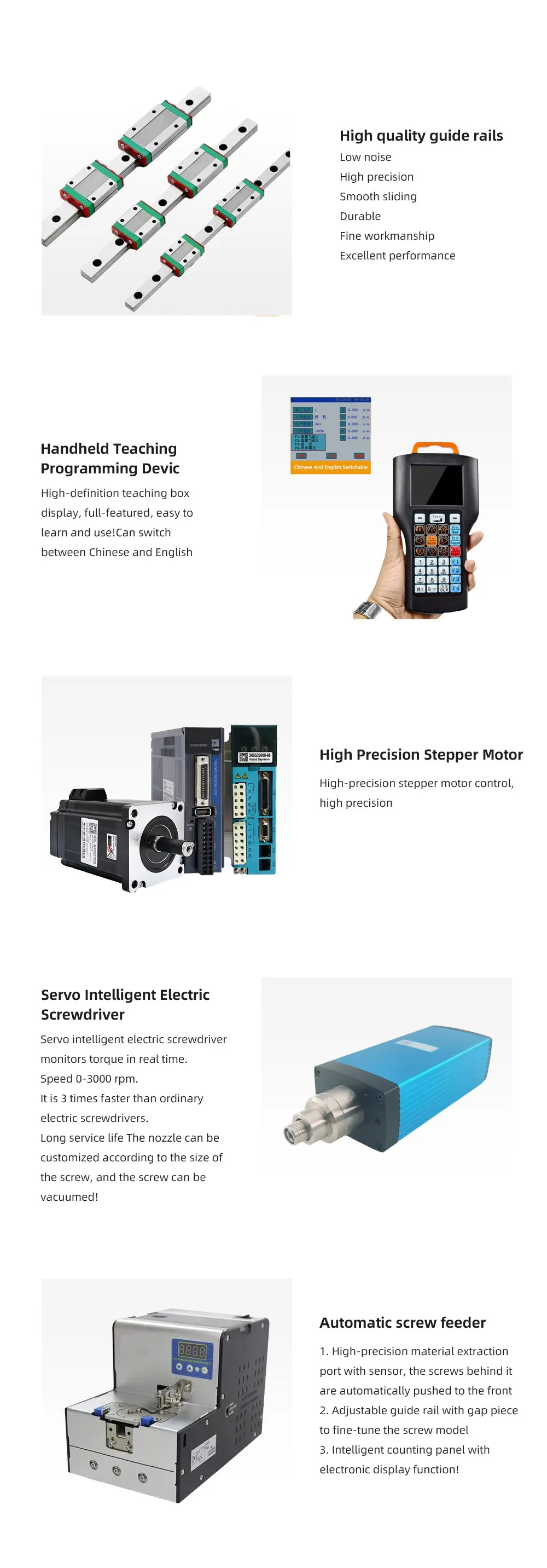

Driving method		Stepping motor / servo motor + synchronous belt / ball screw rod
Movement method		Point to point, linear and circular interpolation continuously variable transmission
Programming interface		Teaching pendant / PC
Slicable graphics		Straight lines, circles, arcs, continuous lines, 3D irregular lines
Program capacity		100 groups / 1000 points each group
External way		RS232
Torque		0.03~45kgf.cm

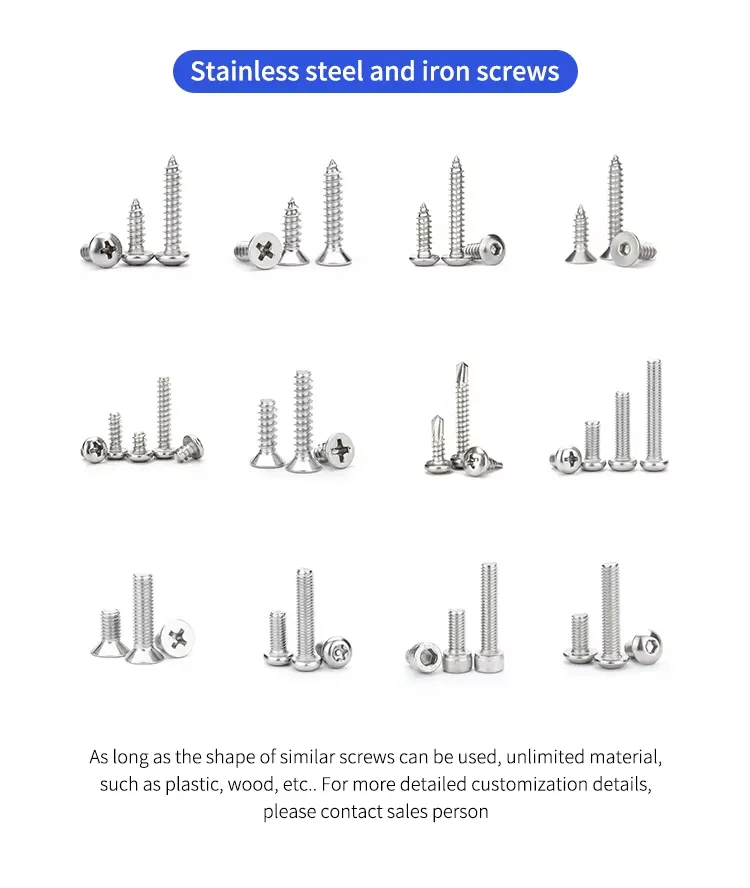

Applicable screws		M1.0~M5.0
Dimension	L	580mm	680mm	580mm	680mm	580mm	680mm	580mm	680mm
	W	520mm	620mm	720mm	720mm	620mm	620mm	720mm	720mm
	H	603mm
Input power		110V/220V/50Hz
Enter air pressure		4~7kgf/cm²
Weight		70kg	75kg	75kg	80kg	70kg	75kg	75kg	80kg
The machine can hang many electronic screwdrivers, non-standard specifications can be customized
