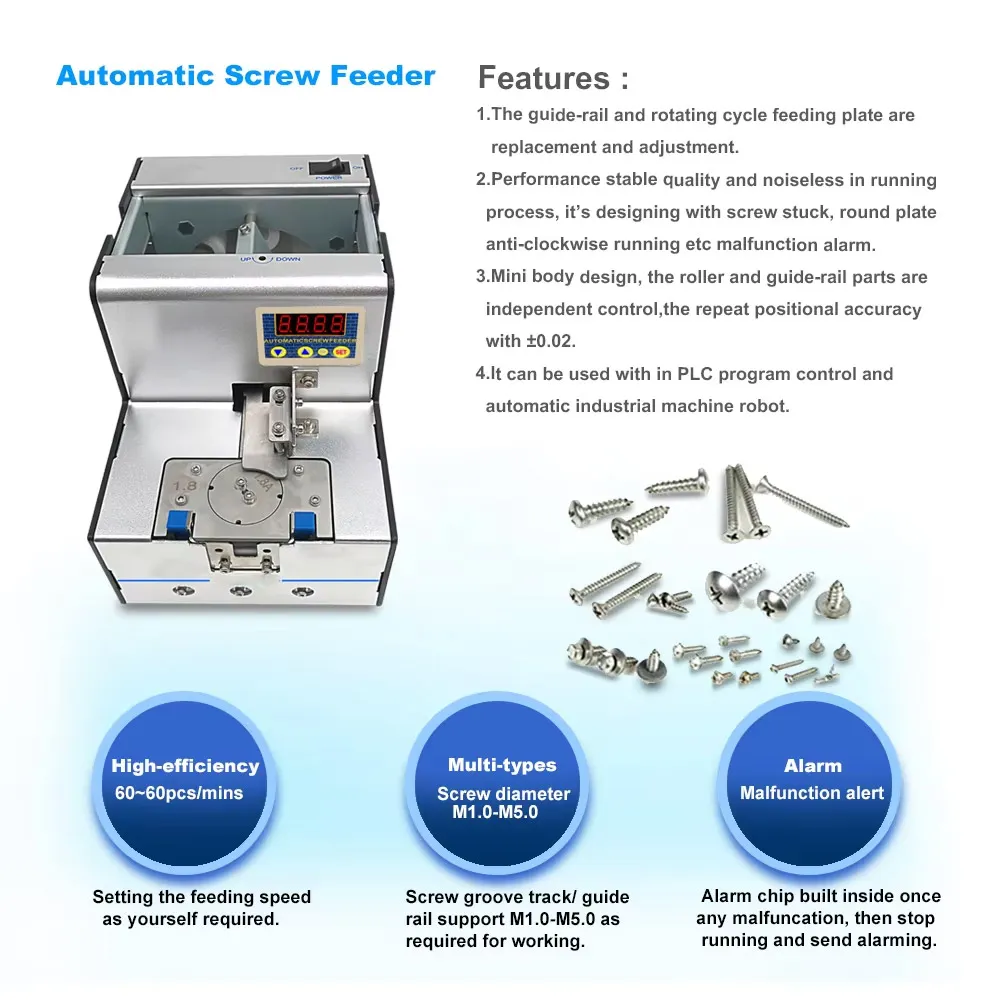

Features:
1. The automatic screw feeder machine is designing with counting function with value 0 - 9999 for setting and adjusting; also it is alarm warning function once
the value arrived the setting counting goal;
2. Screw output feeding speed with 60-90pcs/ mins, the speed can adjust easily;
3. It is easy to adjust the screw feeding speed by adjusting the vibration motor for guide-rail, it is stable without shaking once
it is arrived screw take out point;

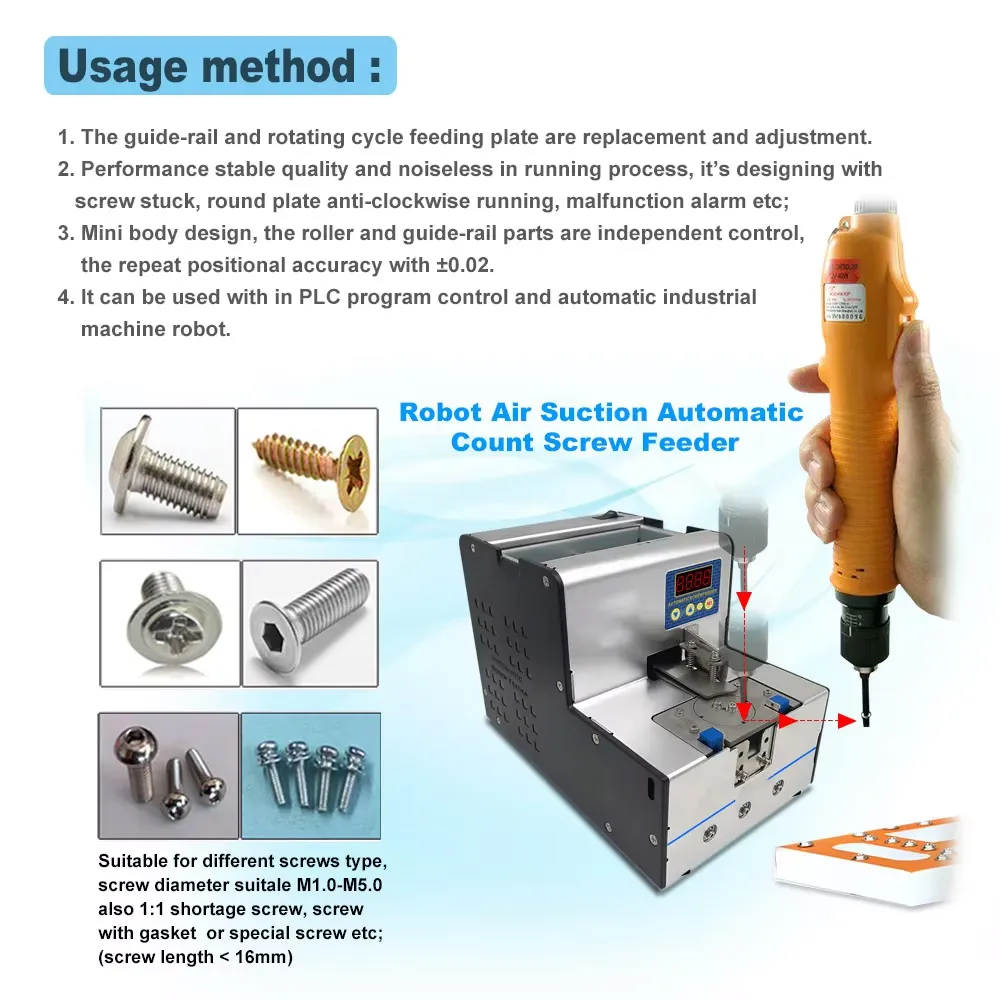

4. The automatic screw feeding machine is suitable for many kinds of screws with M1.0-M5.0(screw pole diameter) by replacing round plate with screw retention hole
and adjusting guide-rails gap, also workable with special screws with 1:1 screw, flat head screw and screw with gasket etc;

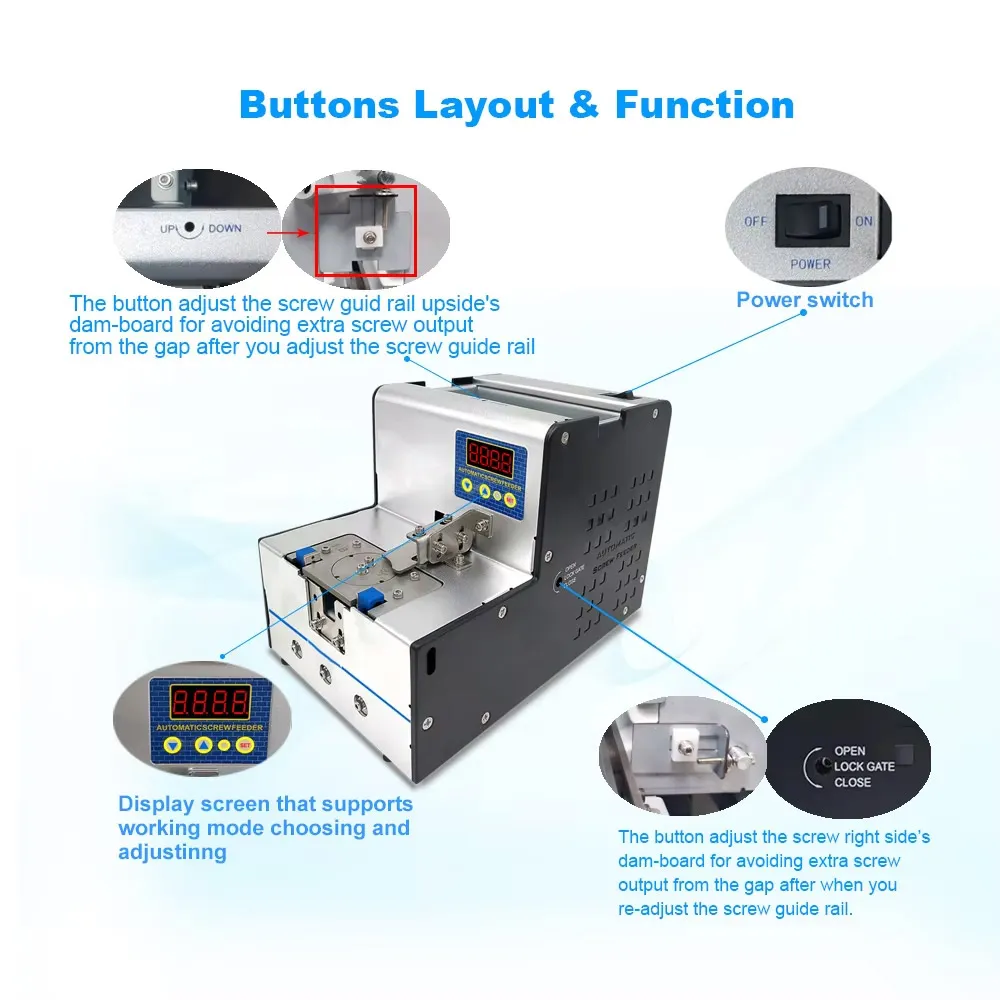

5. It is designed with malfunction alarm program, the guide-rail easy to adjust, it can be take it out for adjusting freely;
6. It is no screw stuck occurring usually, scientific designed with the feeding method by circulating roller to guide rail, also
has clearing brush hanging in upside to clear extra screw in guide-rail when it is transmission process.
Automatic Feeding Screw Machine Technical Parameters
|
Model No
|
XHD620-C
|
|
Power Supply
|
100~240VAC, 50/60Hz, 1~2A
|
|
Rated Power
|
20W
|
|
Screw Feeding Method
|
Round plate pick-up points with mechanical transmission
|
|
Screw Feeding Speed
|
60~90 pcs/min
|
|
Working Voltage
|
15V DC (500mA)
|
|
Weight
|
2.9 kg
|
|
Screw Capacity of Container
|
200 ml
|
|
Suitable Screw Diameter
|
M1.0 – M5.0
|
|
Workable Screw Length
|
≤15 mm
|
|

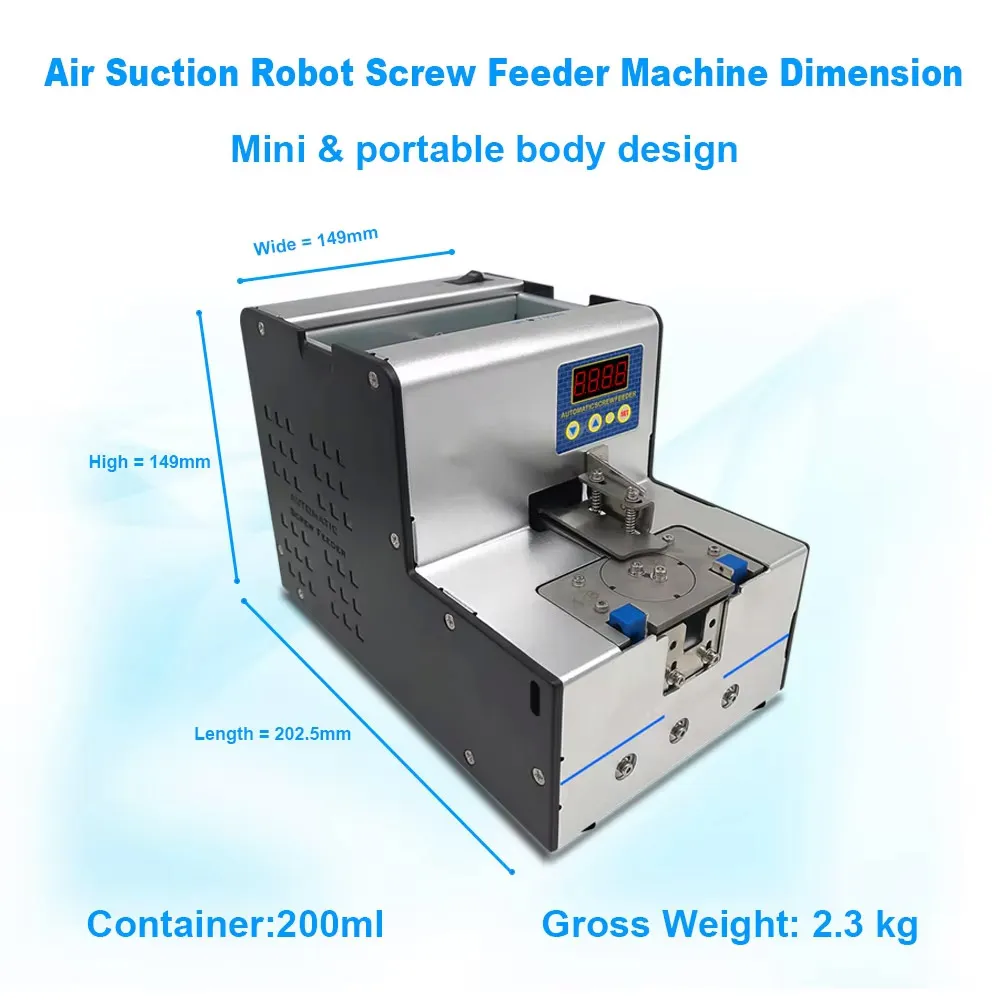

Product Size
|
203 × 126 × 150 mm (L × W × H)
|
|
Packaging Included
|
1 × Automatic screw feeding device
1 × Manual operation instruction
1 × Internal hexagonal wrench
2 × Power adapter with cable
|
|
Warranty
|
1 year
|
