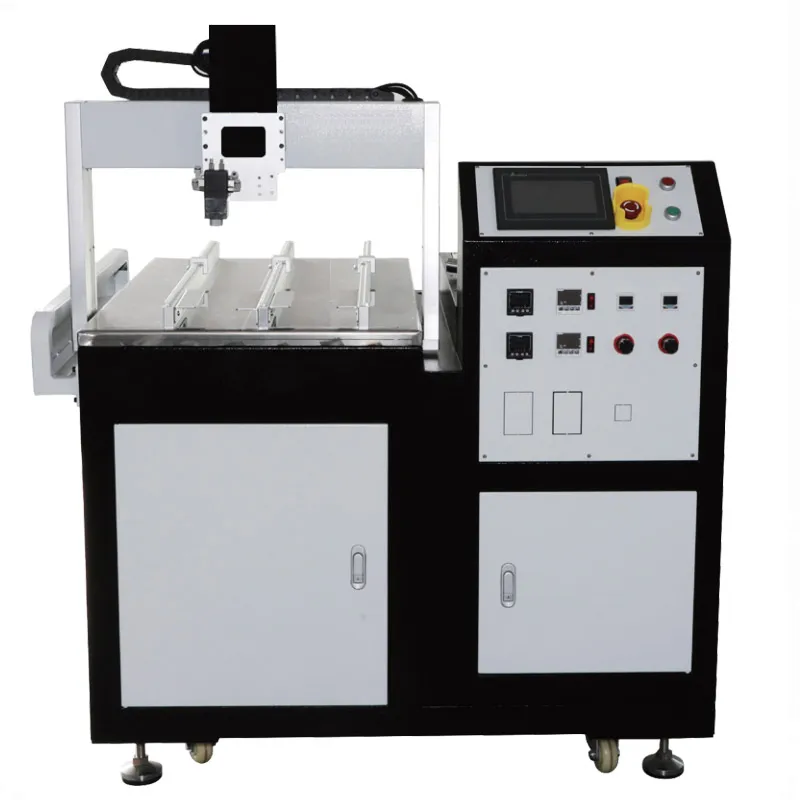

Three Axis Automatic 2 Parts AB Glue Potting Machine

Home / Automatic Glue Potting Machine / Three Axis Automatic 2 Parts AB Glue Potting Machine
  • Automatic 2 Parts AB Glue Potting Machine
  • Three Axis Automatic 2 Parts AB Glue Potting Machine
  • Automatic 2 Parts AB Glue Potting Machine
  • Three Axis Automatic 2 Parts AB Glue Potting Machine
    This automatic glue potting machine adopts a 3-axis system. The dispensing outlet uses dual-liquid / static or dynamic mixing valves combined with a mixing tube to ensure uniform mixing of AB glue, effectively preventing issues such as incomplete curing after dispensing.
    Precise glue volume control meets the high reliability requirements of automated production. The machine features a unique control system that is not affected by air pressure or other external factors, preventing uneven dispensing, dripping, stringing, or burr formation.
    The mechanical structure is easy to adjust and can accommodate workpieces of different heights within a certain range. When replacing needles or mixing tubes, there is no need to recalibrate the motion path.
    Strong versatility. In addition to power supply potting applications, it is also suitable for two-component potting in solar junction boxes, meters, sensors, transformers, generators, relays, industrial capacitors, ballasts, and other related products.
    This glue potting machine features a touchscreen operation interface that is easy to learn and understand, simplifying worker training and reducing training time and costs.
    The program editing is simple. Multiple dispensing paths and patterns can be stored at one time. Operators only need to make simple selections to quickly adapt to different workpieces.
    Material ref.:UV glue, AB glue, EPOXY (black glue), white glue, EMI conductive glue, silicone, RTV, epoxy resin, instant glue, silver glue, red glue, solder paste, thermal paste, solder mask paste , clear paint, screw fixer, etc.

Paramenters:

Models ZJ-SY700 ZJ-SY400
Working range X700*Y700*Z120mm X400*Y400*Z120mm
Maximum load X/Y: 20kg; Z: 8KG X/Y: 20kg; Z: 8KG
Moving speed X/Y: ≤ 500mm/s; Z: ≤ 300mm/s X/Y: ≤ 500mm/s; Z: ≤ 300mm/s
Operation mode 1:1~100:1 (customizable) 1:1~100:1 (customizable)
Driving mode Stepper motor + linear guide rail / servo motor + ball screw (optional) Stepper motor + linear guide rail / servo motor + ball screw (optional)
Proportioning accuracy ≤ ±3% ≤ ±3%
Ejection accuracy ≤ ±3% ≤ ±3%
Motion accuracy ±0.01mm~0.03mm ±0.01mm~0.03mm
Control mode PLC + PC / teaching pendant PLC + PC / teaching pendant
Delimitable graph Line, circle, arc; Continuous marking; Drip, glue injection Line, circle, arc; Continuous marking; Drip, glue injection
Mixing ratio 1:1~20:1 1:1~20:1
Operable viscosity 1~3000000cP 1~3000000cP
Pressure barrel 30L stainless steel vacuum pressure drums and 1 cleaning drum (volume customizable) 30L stainless steel vacuum pressure drums and 1 cleaning drum (volume customizable)
Mixed mode Static / dynamic mixing (optional) Static / dynamic mixing (optional)
Input power AC220V 50–60Hz AC220V 50–60Hz
Operating humidity 20-90% no condensation 20-90% no condensation
Overall dimension Approx. W1600*L1200*H1500mm Approx. W1300*L1100*H1450mm
Weight Approx. 500kg Approx. 400kg

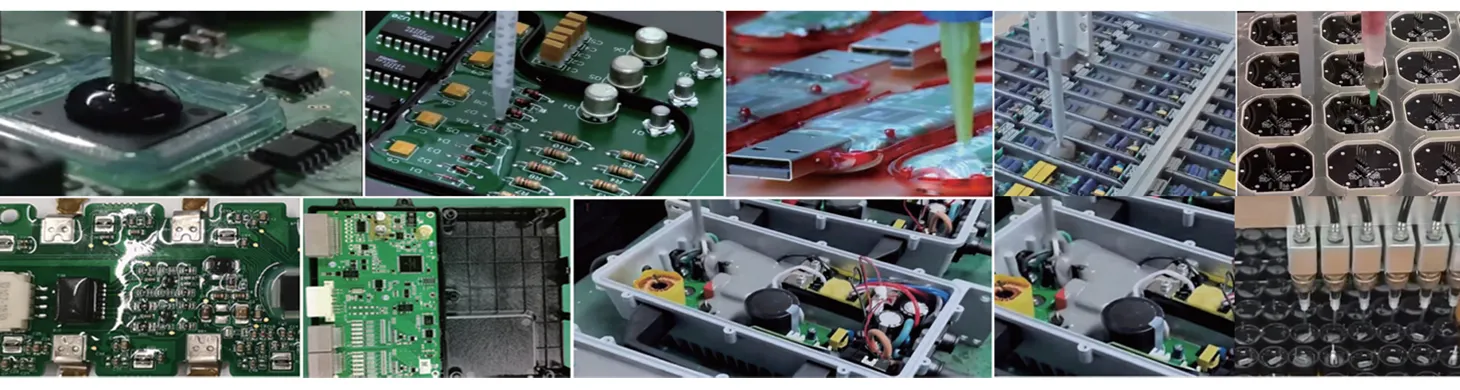

Applications of Three Axis Automatic 2 Parts AB Glue Potting Machine
