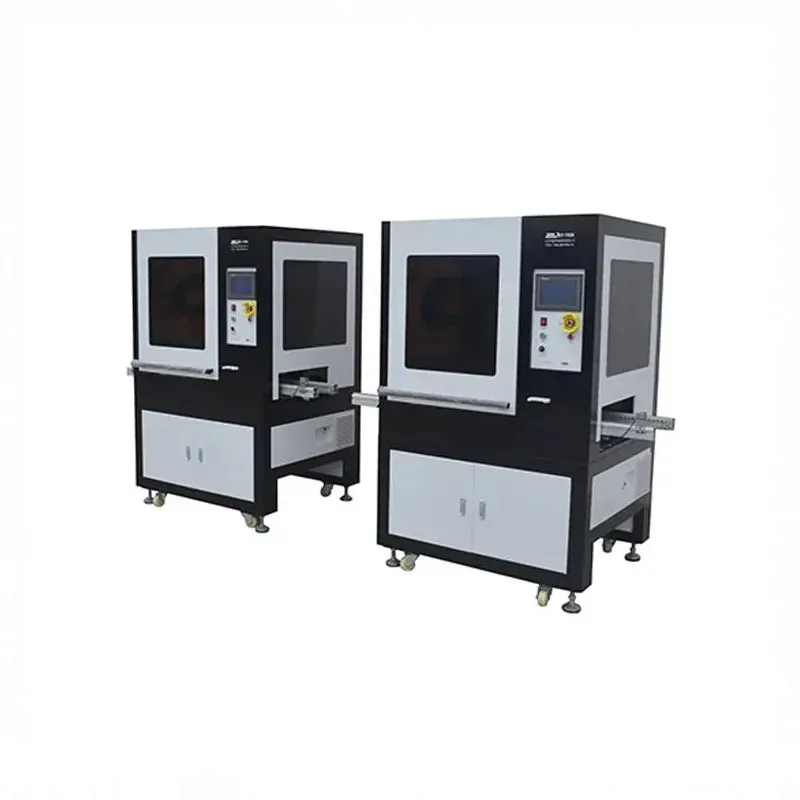

Inline AB Two-Component Automatic Glue Potting Machine

Home / Automatic Glue Potting Machine / Inline AB Two-Component Automatic Glue Potting Machine
  • Inline Automatic Glue Potting Machine
  • Inline AB Two Component Automatic Glue Potting Machine
  • Inline Automatic Glue Potting Machine
  • Inline AB Two Component Automatic Glue Potting Machine
    The Automatic Glue Potting Machine features a three-axis system and is operated via our proprietary Windows-based software, providing simple and convenient operation. The machine integrates seamlessly with an automatic production line.
    It supports trajectory programming for points, lines, circles, and arcs, and can perform advanced functions such as three-dimensional potting through customized programs. The system can automatically meter, mix (ratios from 1:1 to 20:1), and dispense adhesives according to preset ratios.

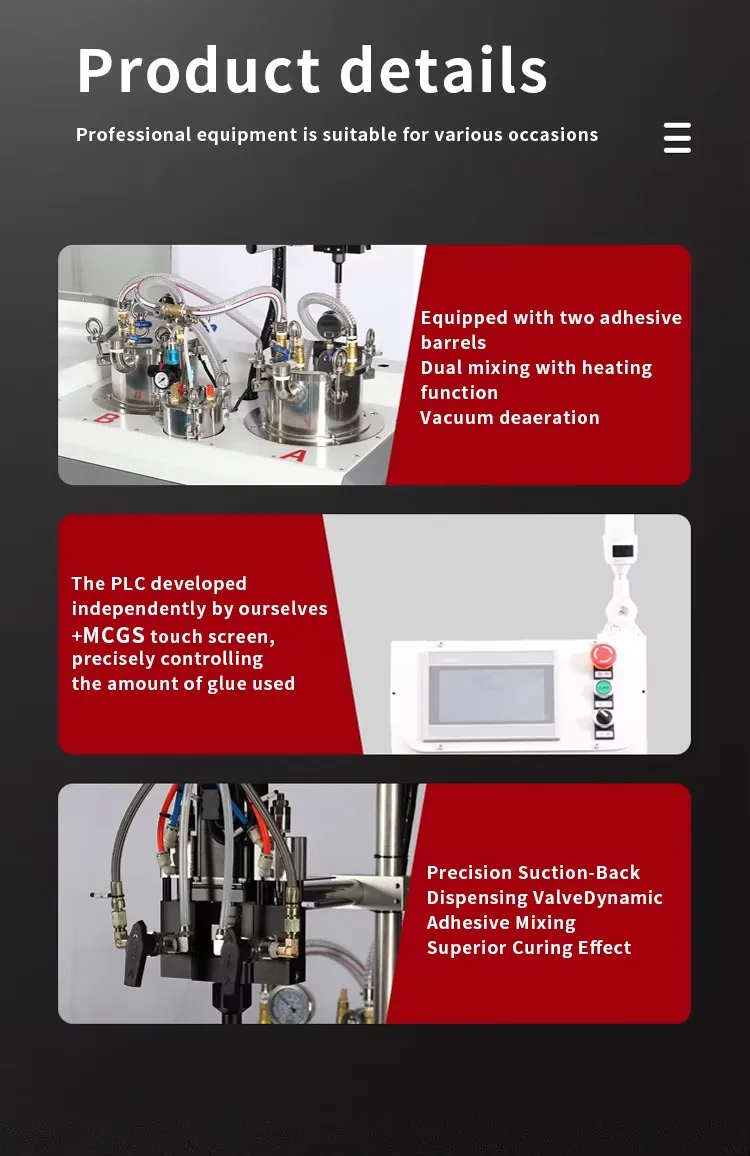

    Additionally, the machine is equipped with an automatic material replenishment and degassing system, with optional features including stirring, tank heating, and automatic valve cleaning.

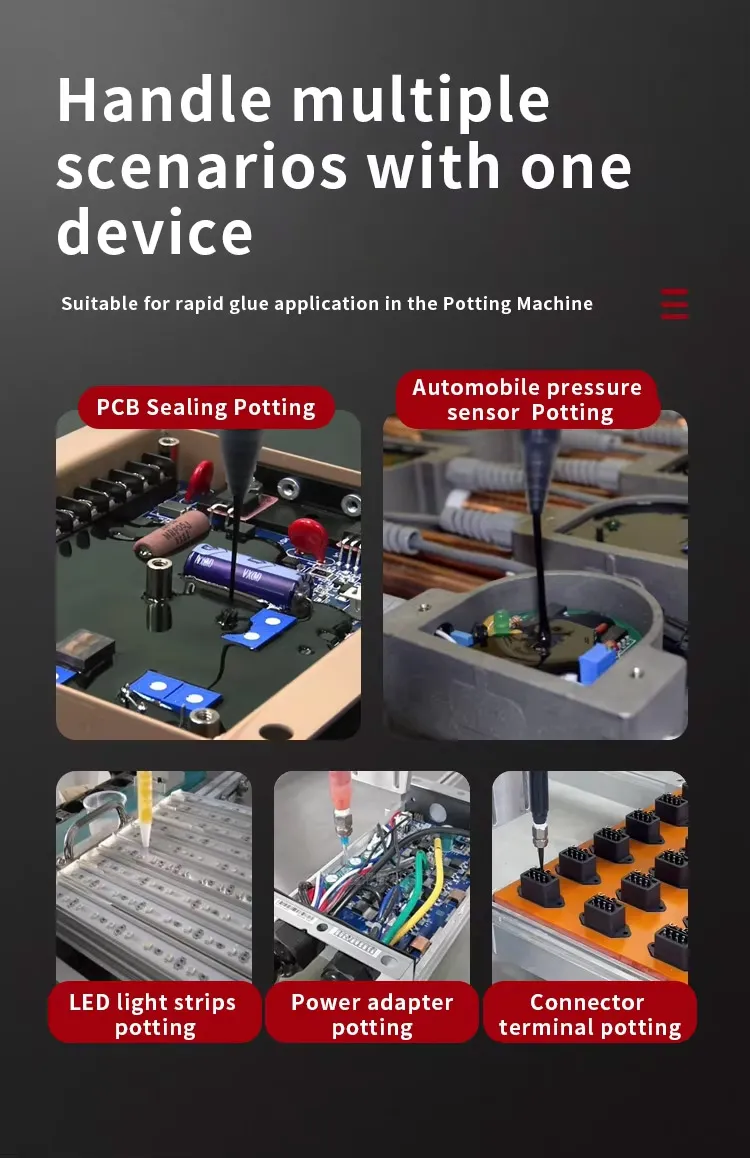

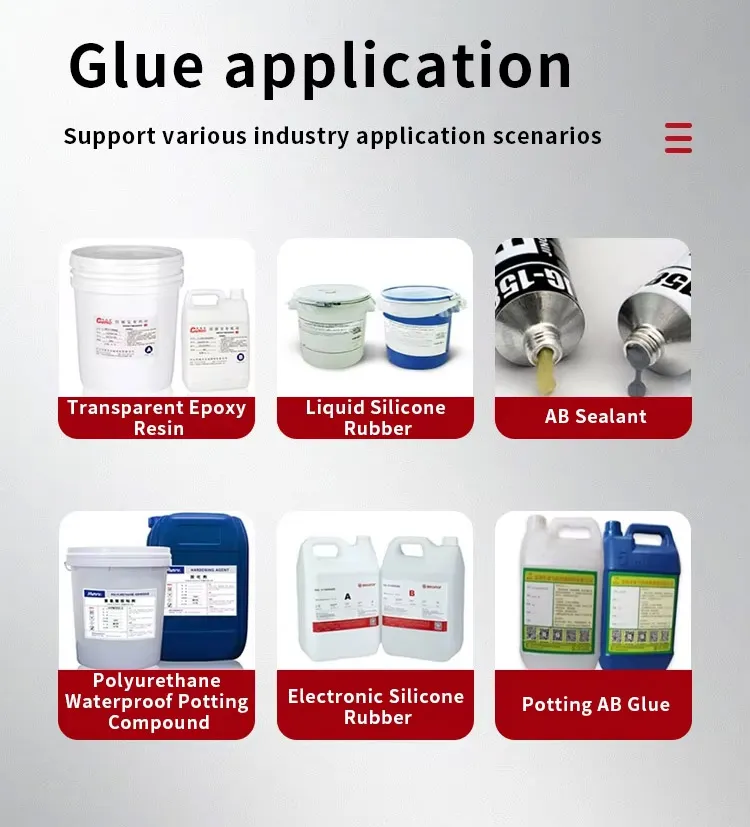

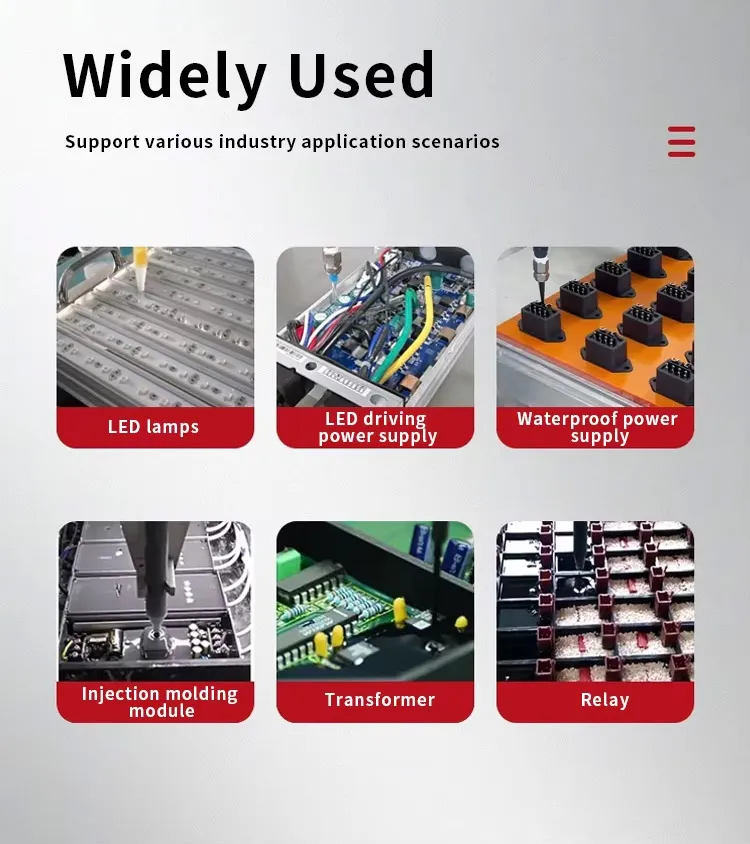

    This Glue Potting Machine is compatible with a wide range of two-component materials, including epoxy, polyurethane, and silicone. It is suitable for applications in electronics, automotive components, new energy products, and industrial assembly. Its stable mixing structure, reliable dispensing control, and customizable configuration options make it capable of meeting diverse production process requirements.

Paramenters:

Models XHD-SY540
Working range X500*Y400*Z120mm
Maximum load X/Y: 20kg; Z: 8KG
Moving speed X/Y: ≤ 800mm/s; Z: ≤ 300mm/s
Motion accuracy ±0.01mm
Dispensing accuracy ≤ ±0.03mm
Glue ratio 1:1~20:1 (customizable)
Vision system Optional
Pipeline width 100~500mm
Transmission mode Timing belt / speed doubling chain / plug-in chain (optional)
Incoming induction Optical fiber / photoelectric
Transmission mode Servo motor + ball screw
Measurement mode Metering pump
Mixed mode Dynamic mixing / static mixing (optional)
Glue storage mode 2 high precision vacuum pressure barrels + 1 cleaning barrel
Operation mode PC with vision; teaching pendant without vision
Anti-curing function Provided
Input power AC220V 50–60Hz
Overall dimension Approx. W1300*L900*H1600mm (subject to actual product)
Weight Approx. 1500kg
Inline AB Two-Component Automatic Glue Potting Machine
