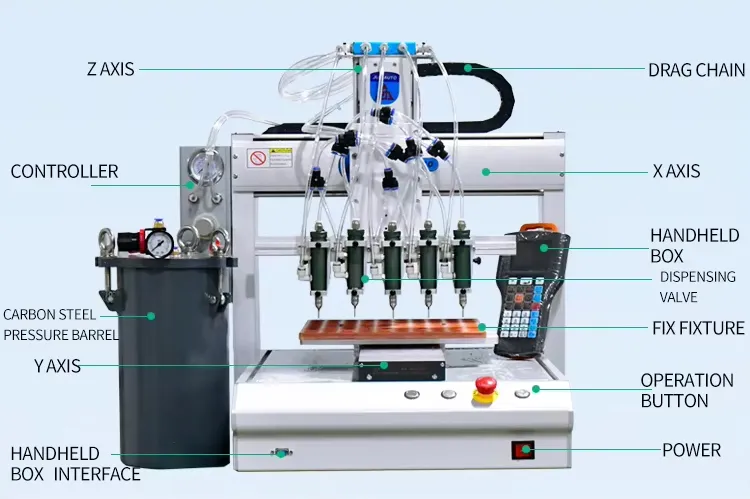

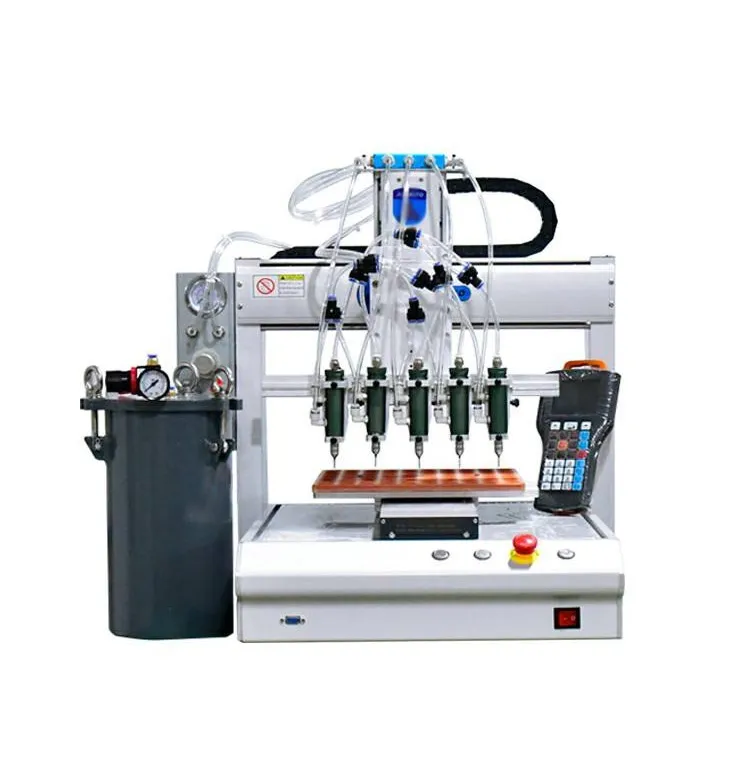

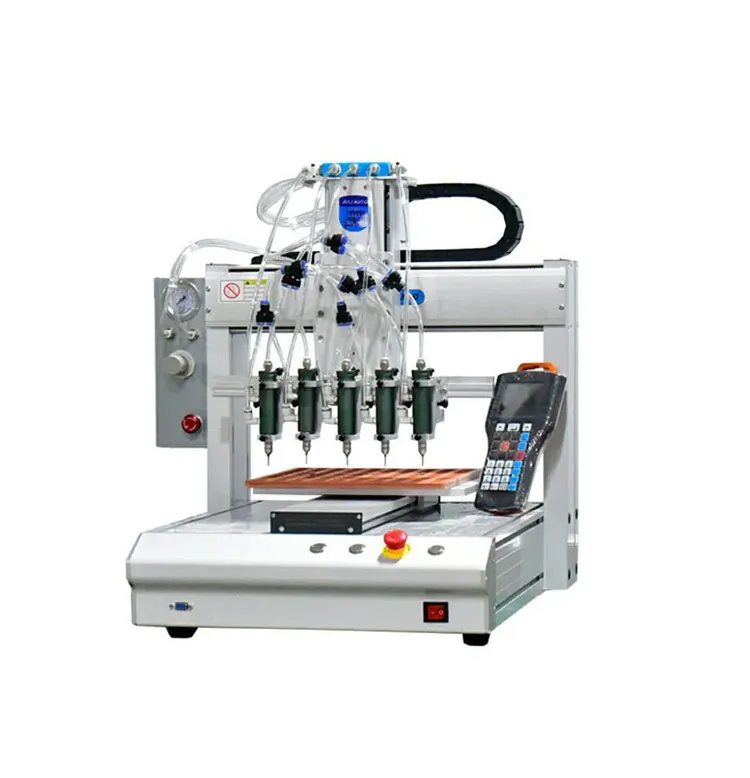

Name: Benchtop 3 Axis Automatic Glue Dispenser Machine with 5 Heads,5L Pressure Barrel,Single-Station
Brand: Zaijin
SKU: SB-GD-31WF-31
Price: 2654.000000 USD
Availability: InStock

Key Features

Durable Aluminum Body: Lightweight, corrosion-resistant, and thermally stable for long service life.
Multi-Head Dispensing (5 Heads): Enables simultaneous dispensing on multiple points, significantly improving efficiency.
5L Pressure Barrel: Large-capacity pressure tank ensures continuous glue supply without frequent refilling.
3-Axis Control System: Ensures precise positioning and smooth motion across X, Y, and Z axes.
User-Friendly Programming: Supports teach-pendant or PC-based path programming with intuitive interface.
Flexible Patterns: Capable of dots, lines, arcs, circles, and complex trajectories.
High Repeatability: ±0.02 mm positioning accuracy ensures stable and precise output.
Compatible with Multiple Adhesives: Suitable for epoxy, UV glue, silicone, PU, and other industrial adhesives.
Compact Benchtop Design: Space-saving structure ideal for R&D labs or small-scale production lines.

Product Parameters

Model	XHD-D331
Number of Controlled Axes	3-axis
Effective Travel	X axis: 300mm / Y1 axis: 300mm / Z axis: 100mm
Transmission Mode	Double-track timing belt / Lead screw module
Power Source	Stepper motor / Servo motor
Top Speed	500mm/sec
Repeat Accuracy	±0.02mm
Maximum Load	X/Y/Z 5kg / 5kg / 3kg
Control System	Hand-held three-axis control system
File Storage Space	400 sets of processing files, up to 9999 points in a single file
Power	AC110–250V 50–60Hz 350W

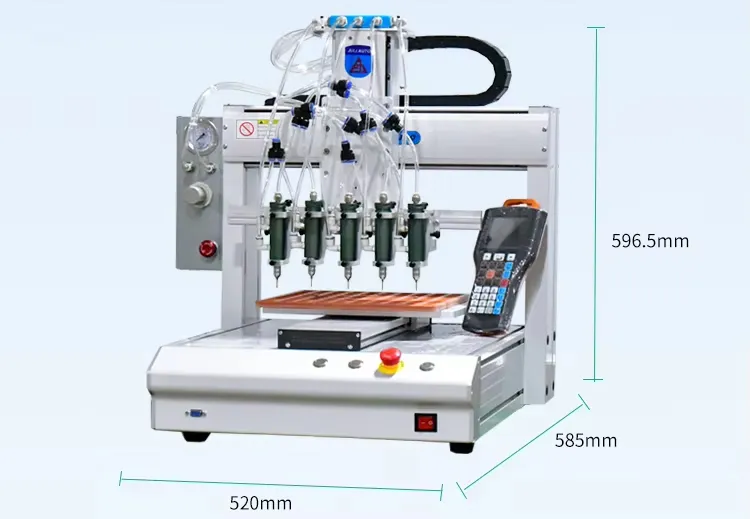

Size (L × W × H)	520mm × 585mm × 596mm
Weight	44kg
