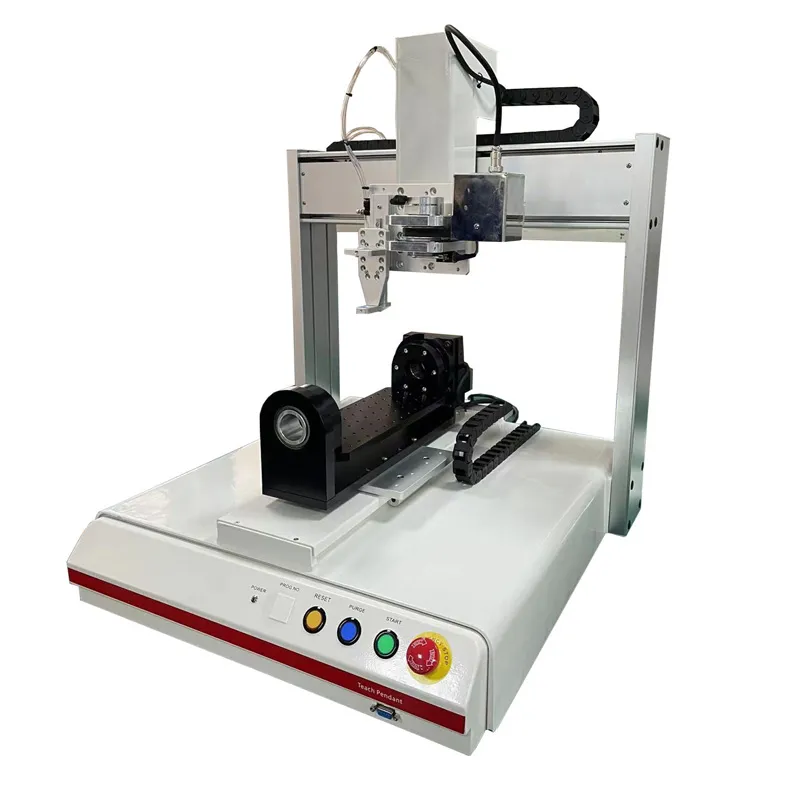

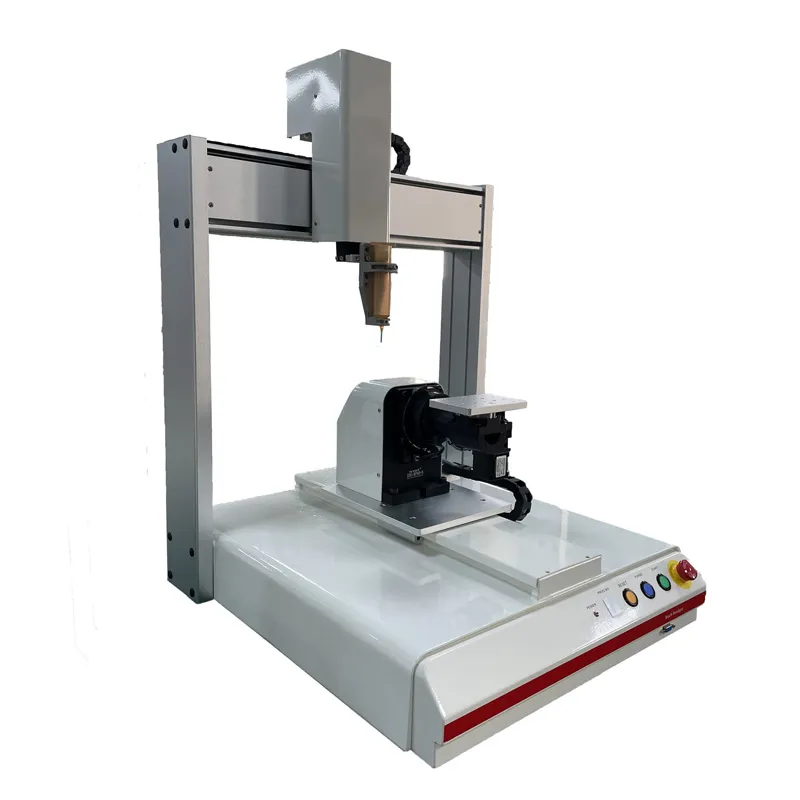

Desktop 5 Axis CNC Adhesive Glue Dispenser Machine with R Axis Rotated 360°

Home / Automatic Glue Dispenser Machine / Desktop 5 Axis CNC Adhesive Glue Dispenser Machine with R Axis Rotated 360°
  • cnc glue dispenser
  • cnc glue dispenser machine
  • 5 axis cnc adhesive glue dispenser machine
  • cnc glue dispenser
  • cnc glue dispenser machine
  • 5 axis cnc adhesive glue dispenser machine

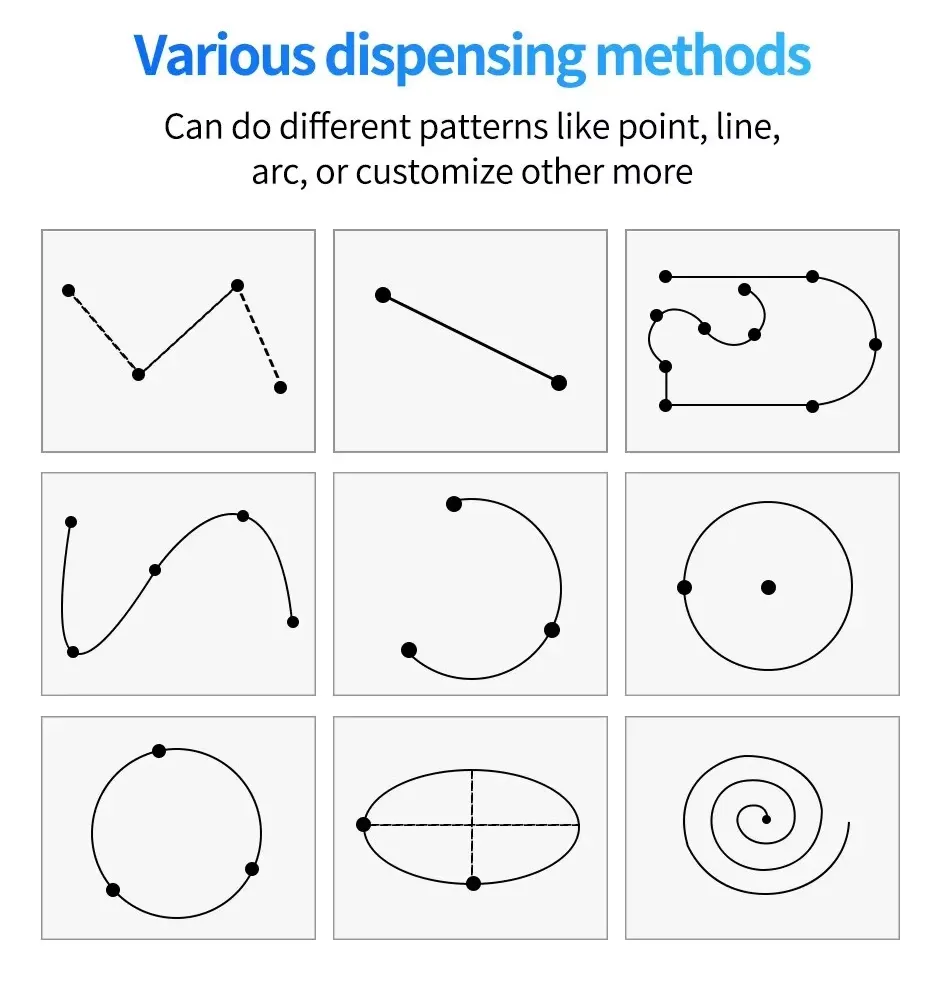

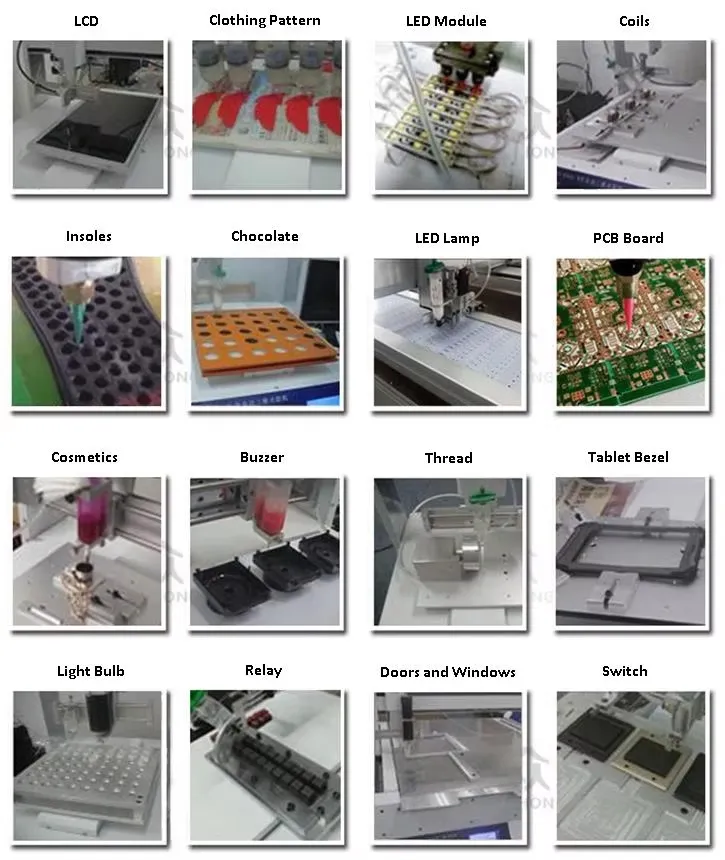

    The desktop CNC glue dispenser machine is designed for applications that require precise dispensing on complex and multi-angle surfaces. The machine are 5axis, R axis can rotate 360 degrees, the system With the interpolation function enables continuous dispensing on circular, curved, and irregular paths without repositioning the workpiece.The glue dispenser machine supports multiple dispensing patterns such as dots, lines, arcs, and full-circle trajectories, making it suitable for electronic components, PCB assembly, sensor sealing, and small to medium batch production where consistency and process control are required.And can be operated producers by teach pendant,the machine is quite easy to operate, one can learn and make program is a few minutes.
4X/Y/Z/R Working Area (mm) 400 / 400 / 100 / 360°
Load Worktable 11kg / 2.0kg
Speed PTP X&Y/Z (mm/sec) 0.1 ~ 500
Repeatability ±0.02mm / axis
Resolution 0.01mm / axis
Data Memory 100 programs, 4000 points/program
Data Storage CF card
Program Display Teach pendant LCD
Operation System PTP (Point to Point) & CP (Continuous Path)
Interpolation Function 5 axis
Program Method Teach pendant
External Interface RS232
I/O Signals 8 inputs / 8 outputs
Power Supply AC 90 ~ 260V 320W
Operating Temperature 0 ~ 40°C

Desktop 5 Axis CNC Adhesive Glue Dispenser Machine CNC glue dispenserCNC adhesive dispenserCNC glue dispenser machine
