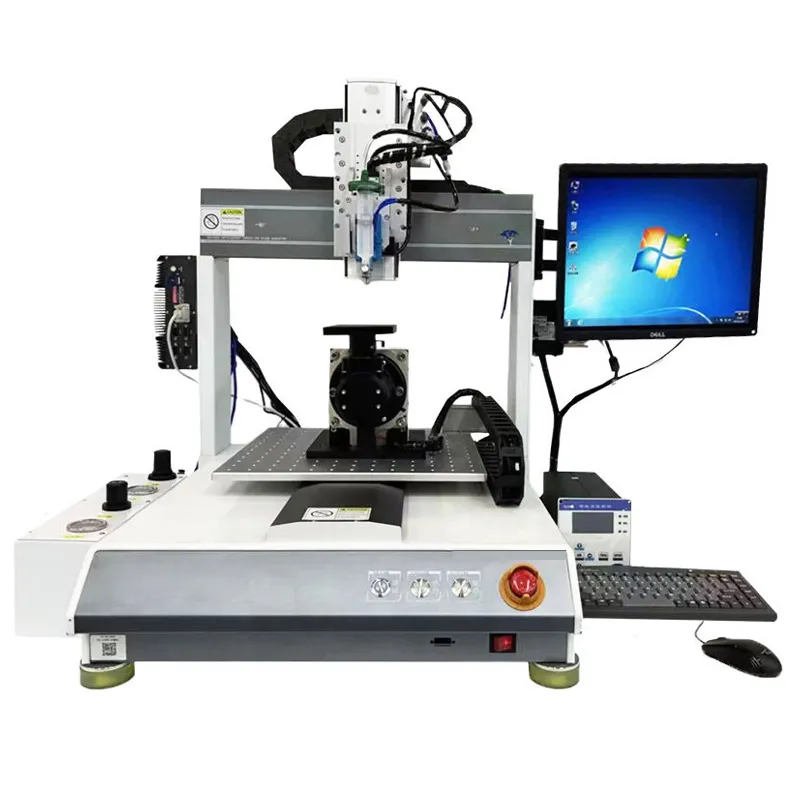

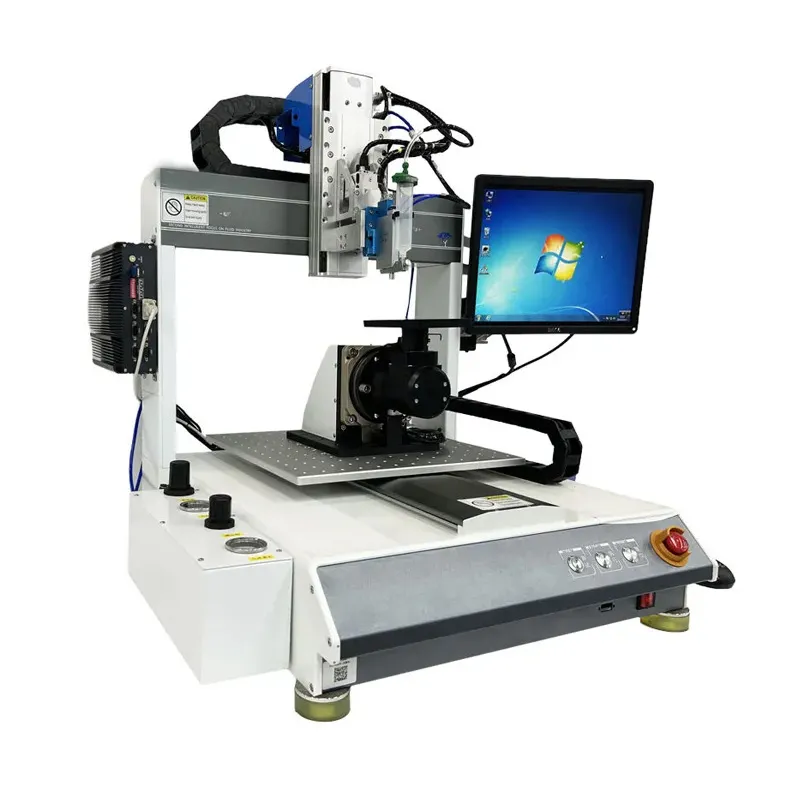

Features
1. Desktop type can be placed on the production line.
2. High-rigidity aluminum alloy multi-axis design ensures reliability and accuracy.
3. Glue automatic feeding, glue thickness, glue speed, dispensing time, stop time can be set parameters, the glue stability is high.
4. Flexibility: Standard universal fixtures are suitable for a wide range of production requirements.
5. More user-friendly touch screen or teaching pendant operation, easy to operate. External technical parameters and manual test functions can be directly adjusted by the technician.

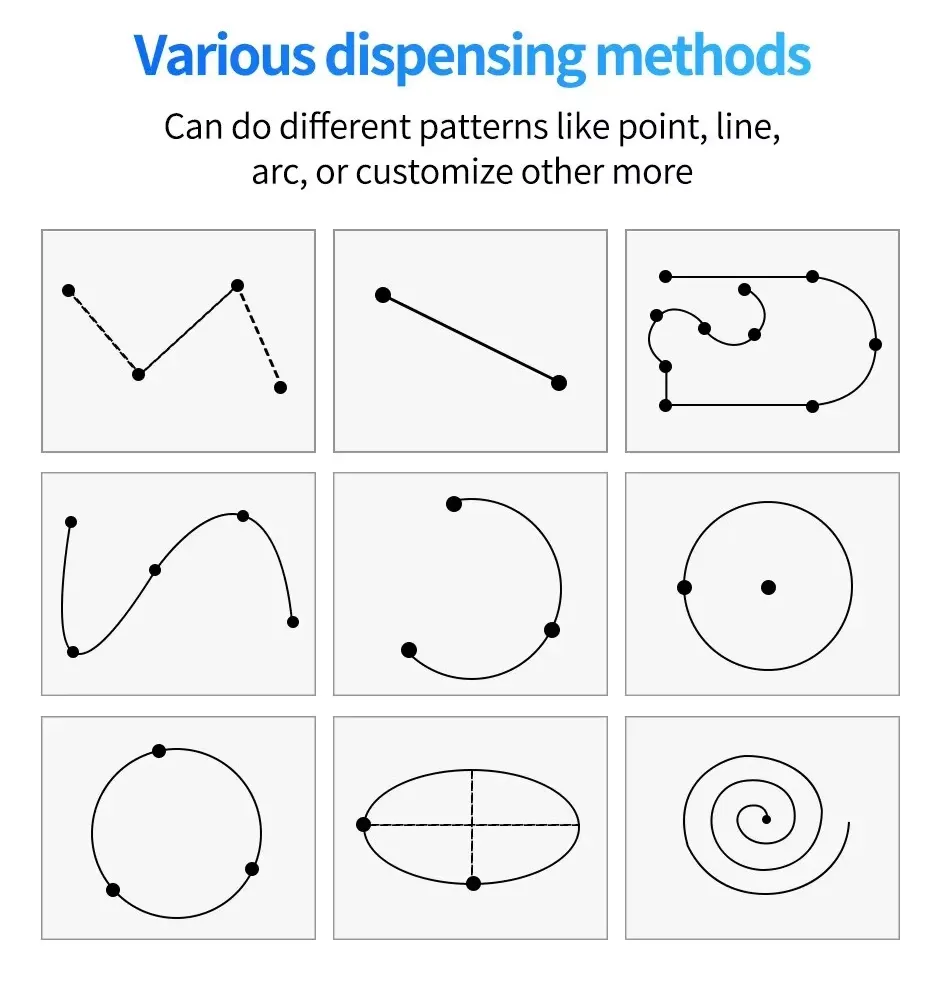

6. Has a variety of functions, such as drawing points, lines, polygons, arcs, circles, irregular curves, continuous tween and three-axis movement.
7. The adhesive dispenser machine can work without a teach pendant connection.

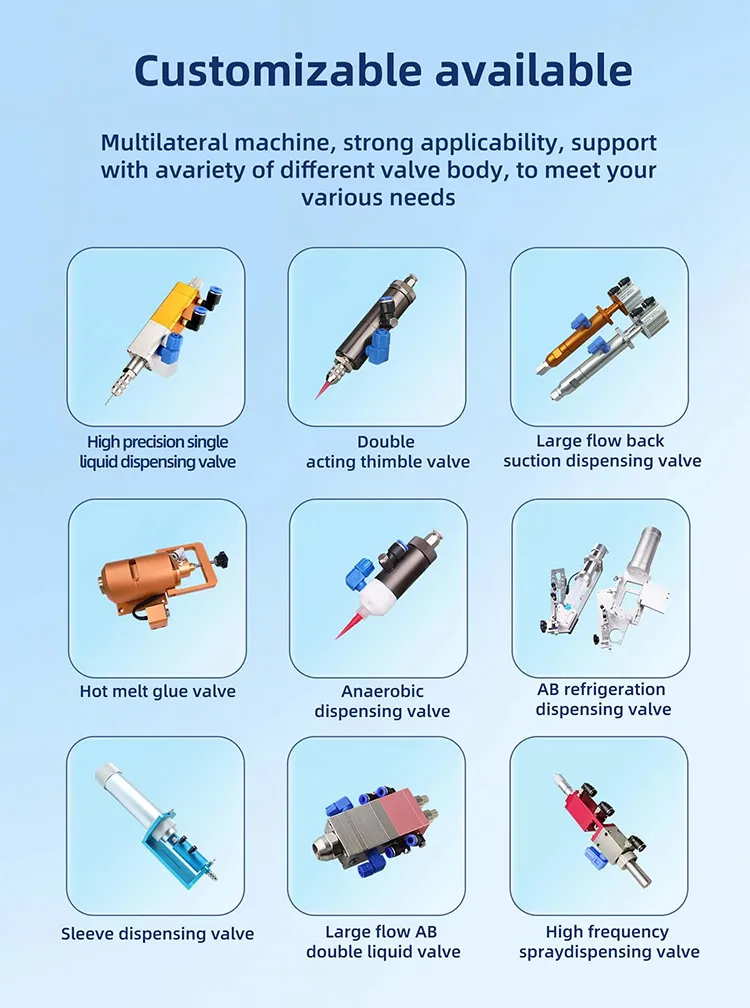

8. Various types of distribution valves are available, such as screw distribution valves, metering valves, and injection valves to meet different production requirements.
Specification
|
Model
|
XHD-380SV
|
XHD-480SV
|
XHD-580SV
|
|
Working range
|
380(X) × 380(Y) × 100(Z) mm
|
480(X) × 480(Y) × 100(Z) mm
|
580(X) × 480(Y) × 100(Z) mm
|
|
Max payload
|
20kg(Y) / 15kg(Z)
|
|
Max travel speed
|
500 mm/sec (XY) / 200 mm/sec (Z)
|
|
Driven mode
|
Servo motor, Ball-screw
|
|
XYZ position accuracy
|
±0.015 mm
|
|
Resolution
|
0.01 mm
|
|
Memory storage
|
120G
|
|
Operating method
|
Windows
|
|
Motor
|
Servo motor, Ball-screw
|
|
Movement patterns
|
3-axis spot to spot, continue line, arc
|
|
I/O
|
1 input, 4 output (support expansion)
|
|
Power supply
|
AC 220V 50/60 Hz, 1 KW
|
|
Working environment
|
Temperature 0~40℃, Humidity 20%~90%
|
|
Weight
|
Approx 48 kg
|
Approx 60 kg
|
Approx 75 kg
|
|
Machine dimension
|
520 × 583 × 645 mm
|
620 × 683 × 645 mm
|
720 × 783 × 645 mm
|
