Features
1.High cost performance.
2.Strong platform compatibility, contact and non-contact dispensing, to meet the dispensing operations of different products and processes.
3.Minimum width of excessive glue can be controlled in 0.2mm(related to the configuration and glue).
4.Powerful visual positioning system, can meet Mark point positioning, edge positioning, 3D scanning positioning.
5.ID identification, automatic program calling, fool-proofing and data statistics function helps to realize smart manufacturing.
6. Support the import function of computer graphics, which can import PLT files, TCF files and G code files.
7. The static eliminator can eliminate static electricity within ±100V.
Scope of application:Sensors, relays, power adapters, electronic toys, horns, electronic components, household appliances, electric vehicle controllers, computer digital products, handicrafts, mobile phone boards, coil products, key products, battery boxes, speakers Ring dispensing and bonding; speaker packaging and dispensing, optical semiconductor, mobile phone battery, notebook battery packaging, PCB board bonding and sealing,SMT, COB, IC, PDA, LCD sealing, IC packaging, IC bonding, chassis bonding, Optical device processing, metal parts packaging and gluing, quantitative liquid filling, chip bonding, automotive mechanical parts coating, mechanical sealing, etc.
|
Models
|

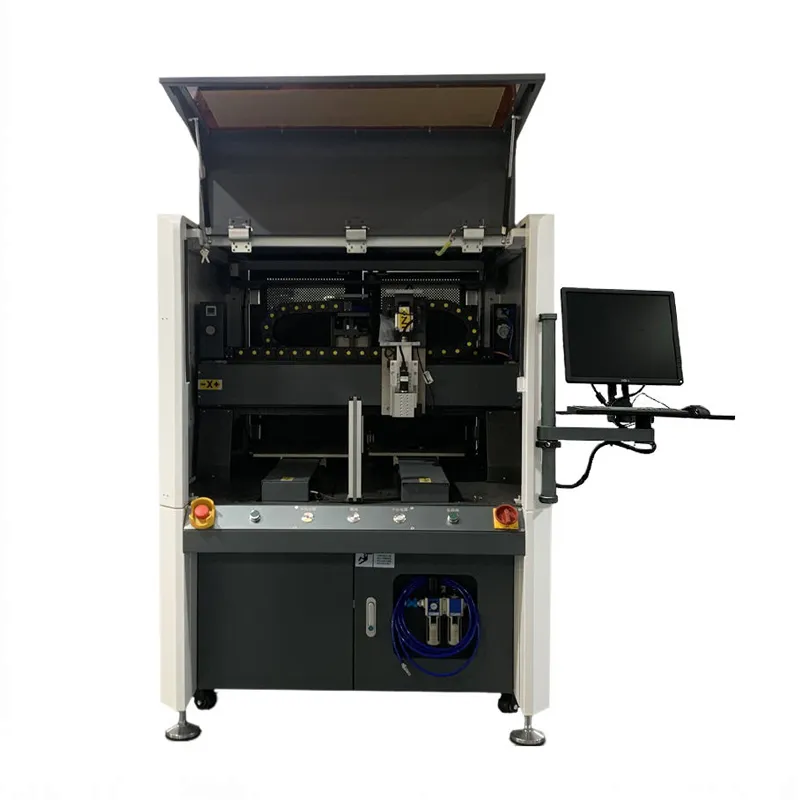

XHD-G550 / XHD-G1200
|
|
Working area
|
X550*Y800*Z110mm / X1200*Y800*Z110mm
|
|
Maximum load
|
XY: 30KG; Z: 8KG
|
|
Moving speed
|
X/Y: 1000mm/s; Z: ≤500mm/s
|
|
Screen showing
|
PC
|
|
Analytical accuracy
|
±0.01mm
|
|
Positioning mode
|
CCD visual positioning system
|
|
Automatic width adjustment range of conveying line
|
100–450mm Automatic width adjustment
|
|
Transmission mode
|
Anti static belt
|
|
Incoming induction
|
Optical fiber / photoelectric
|
|
Overall structure
|
Square steel / aluminum profile structure
|
|
Motor System
|
Servo motor / linear motor
|
|
Transmission module
|
Linear module / ball screw
|
|
Dispensing method
|
High frequency piezoelectric valve / screw
|
|
Motion interpolation function
|
Any route in 3D stereoscopic space is possible
|
|
Height measurement function
|
Laser displacement device
|
|
Automatic weighing function
|
Accuracy ± 0.01mg
|
|
Automatic cleaning function
|
are provided
|
|
Edit mode
|
PC
|
|
Operating temperature
|
10–40°C
|
|
Operating humidity
|
20–90% no condensation
|
|
External interface
|
IO+USB
|
|
Power / energy consumption
|
AC220V 50–60Hz 2500W
|
|
Overall dimension
|
Approximately L1200*W1500*H1660mm / W1950*L1600*H1660 (size for reference only, subject to actual product)
|
|
Weight
|
About 1000kg / 2000kg
|
