Features:
1.Computer control, Windows operating system, fault sound and light alarm and menu display.
2.CCD visual positioning system,5 million industrial camera recognition.

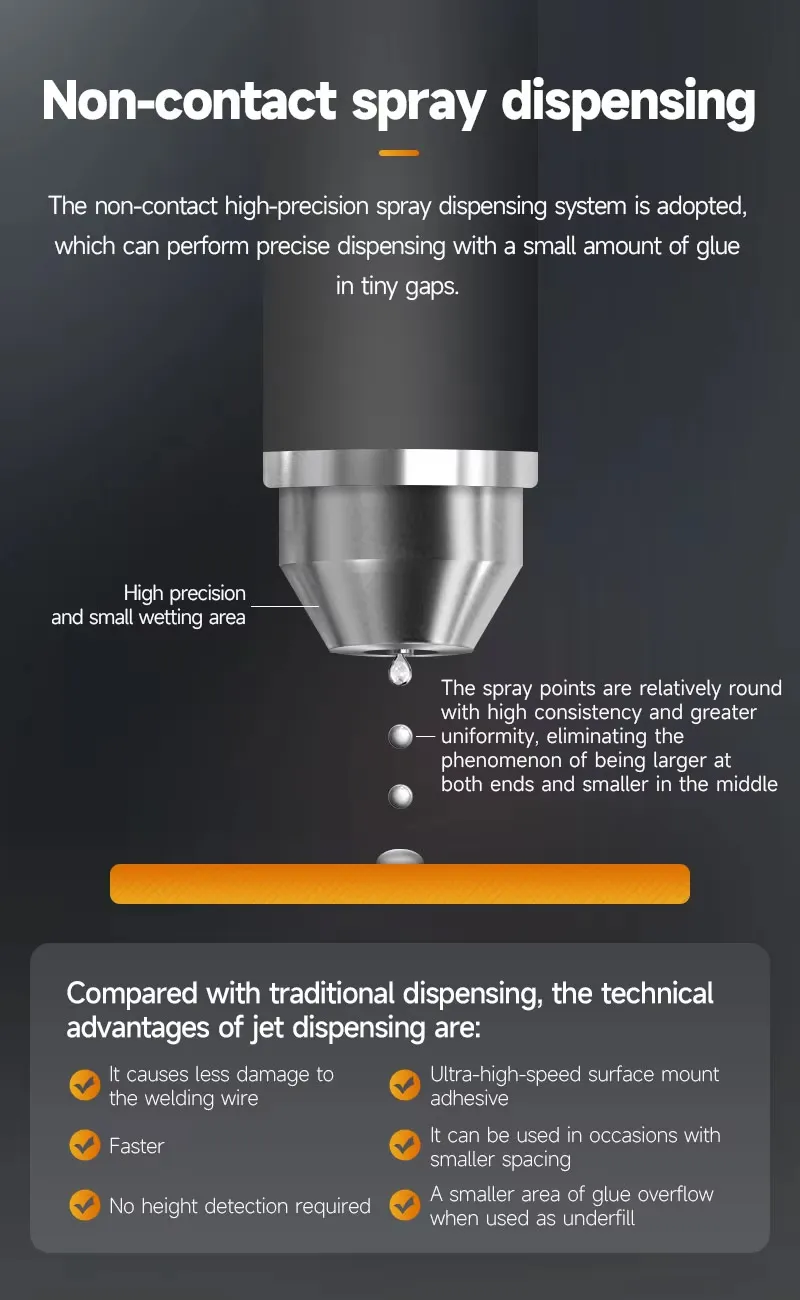

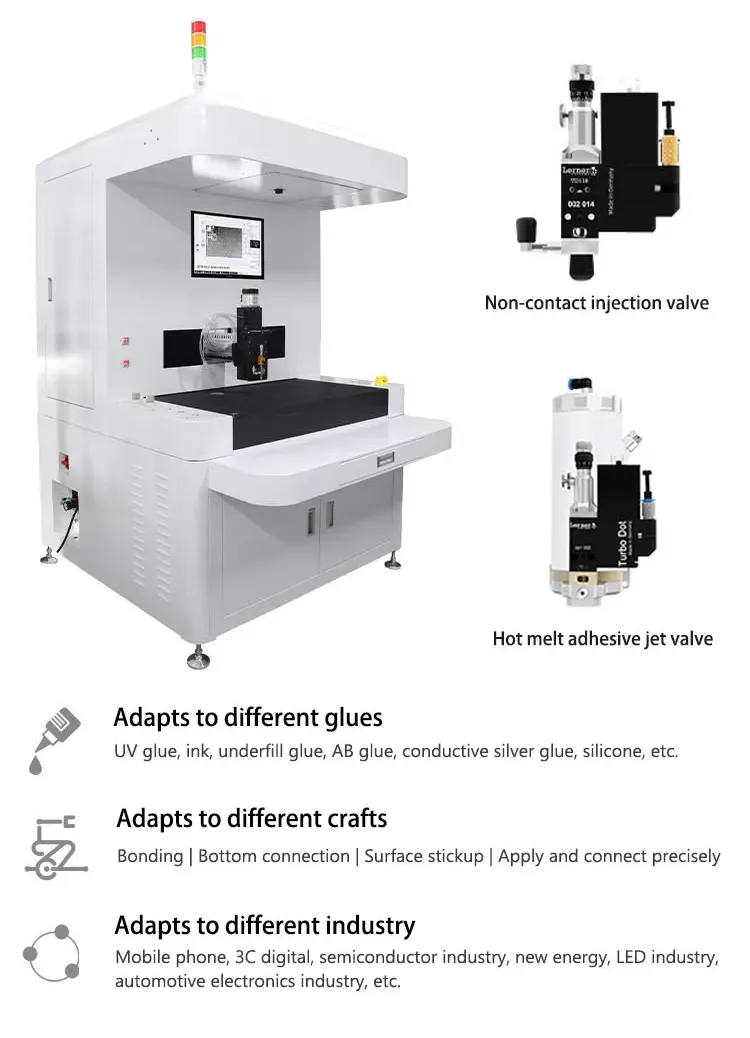

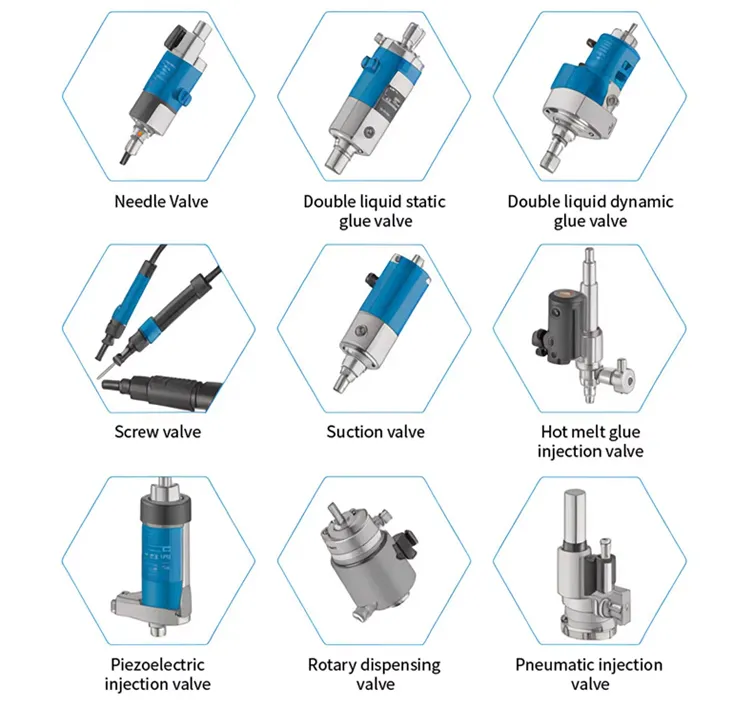

3.Linear motor + servo motor + screw drive.
4.Can be equipped with: pneumatic injection valve or other valves.
5.Automatic constant temperature system of valve body to ensure consistent fluidity of coating.
6.Optional laser height detection system, which can automatically calibrate Z-axis height after workpiece deformation.
7.Optional workpiece heating system to enhance the fluidity of coating during bottom filling.
8.The glue dispenser machine optional precision weighing system, intelligent control and detection of glue dispensing amount to ensure consistency of glue dispensing.
|
Equipment Model
|
XHD-S400
|
|
External Dimensions
|
L 750 mm × W 750 mm × H 650 mm
|
|
Equipment Weight
|
70 kg
|
|
Control Mode
|
Industrial computer + motion control card
|
|
Operation Software
|
Control software + Windows system
|
|
Programming Method
|

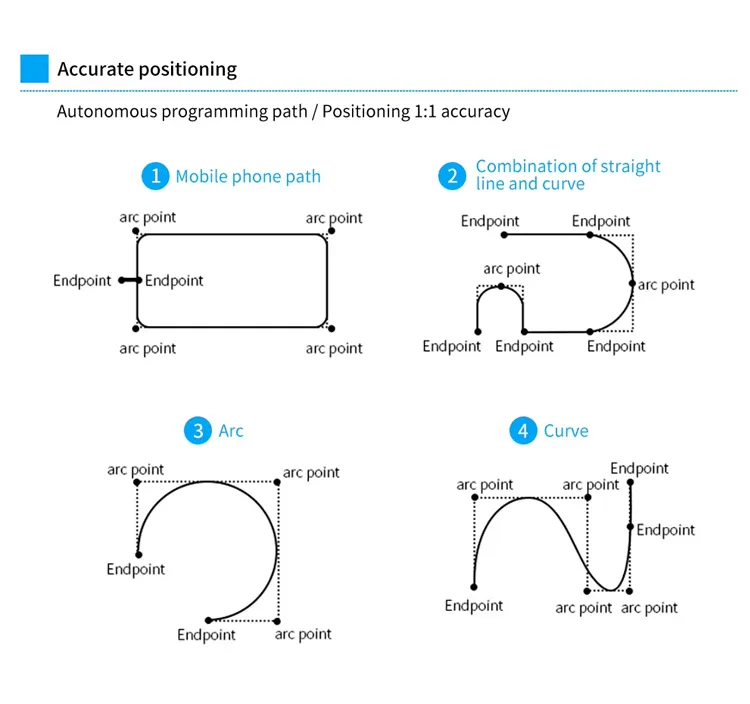

Visual programming
|
|
Axis Configuration
|
Three-Axis,X / Y / Z
|
|
Axis Drive
|
Servo motor + ball screw
|
|
Dispensing Stroke
|
X 400 mm / Y 400 mm / Z 80 mm
|
|
Number of Glue Valves
|
1 (standard)
|
|
Maximum Moving Speed
|
800 mm/s
|
|
Repeat Accuracy
|
±0.02 mm
|
|
Material Capacity
|
30 cc
|
|
Valve Nozzle Cleaning Device
|
Optional
|
|
Equipment Alarm
|
Menu + sound and light alarm
|
|
Material Detection
|
Automatic detection
|
|
Power Supply
|
220 V / 50–60 Hz
|
|
Air Pressure Requirement
|
≥ 0.65 MPa
|
|
Safety Standard
|
CE
|
|
Total Power
|
2.5 kW
|
|
Standard Function
|
CCD visual positioning
|
|
Visual Alignment Speed
|
0.1s
|
