Focused on common bottlenecks of industrial dispensing production, this solution addresses efficiency limitations under diverse working conditions. For unrestricted dot volume, it optimizes nozzles and material supply systems to increase single dispensing volume. For size-limited dispensing requirements, it improves jetting frequency to raise operating speed. Equipped with high-speed and high-acceleration motion platforms, the system cuts idle and settling time for complex multi-zone dispensing. The multi-valve parallel operation further realizes substantial efficiency growth (1.8x for dual valves, 3.2x for four valves). As the core product, the ZJ1500S system achieves ±2% glue weight tolerance, a CPK value upgrade from 4 to 9 in MiniLED underfill applications, ultra-low lag time and high piezoelectric valve precision via real-time closed-loop compensation, balancing high production efficiency and exceptional process stability for modern precision manufacturing.
As the manufacturing industry advances, manufacturers constantly strive to hit peak production throughput. Yet minor, targeted tweaks can unlock massive untapped performance potential.What simple yet powerful adjustments can revolutionize your production output? Let’s dive into the hidden details that drive game-changing productivity gains!
1. No Limits on Dot Size or Dispensed Volume — Prioritize Maximum Speed? Boost Per-Shot Output
Upgrade your needle and striker assembly to increase adhesive weight per single dispense dot. With higher per-shot volume, you cut total dispensing time while maintaining the overall required glue quantity.
We also provide customized material feeding systems and glue temperature control units to guarantee consistent high-volume dispensing. This eliminates inconsistent viscosity and unstable shot weight caused by overly fast glue flow.
2. Fixed Limits on Single Dot Volume & Diameter? Ramp Up Valve Jetting Frequency
For applications with strict constraints on per-dot glue output, deploy high-frequency jet dispensing modes. This solution raises production throughput by increasing the number of jet shots the valve delivers per unit time.
3. Break Through Production Bottlenecks With a High-Speed, High-Acceleration Motion Platform
Stability and speed often seem mutually exclusive in production workflows. Our high-speed, high-acceleration motion platform resolves this tradeoff to deliver both reliable operation and faster cycle times.
It drastically cuts idle travel and settling delays during dispensing, especially for complex jobs requiring dots across multiple zones. This optimization slashes overall cycle time, delivers consistent throughput, and creates a reliable foundation for high-volume manufacturing.
4. Large Quantities of Uniform Dispensing Zones — Single Unit Not Fast Enough? Parallel Multi-Station Dispensing Doubles Throughput
When handling high volumes of regular dispensing patterns, standalone equipment often fails to meet throughput targets. Our multi-valve parallel dispensing system delivers dramatic efficiency improvements:
-

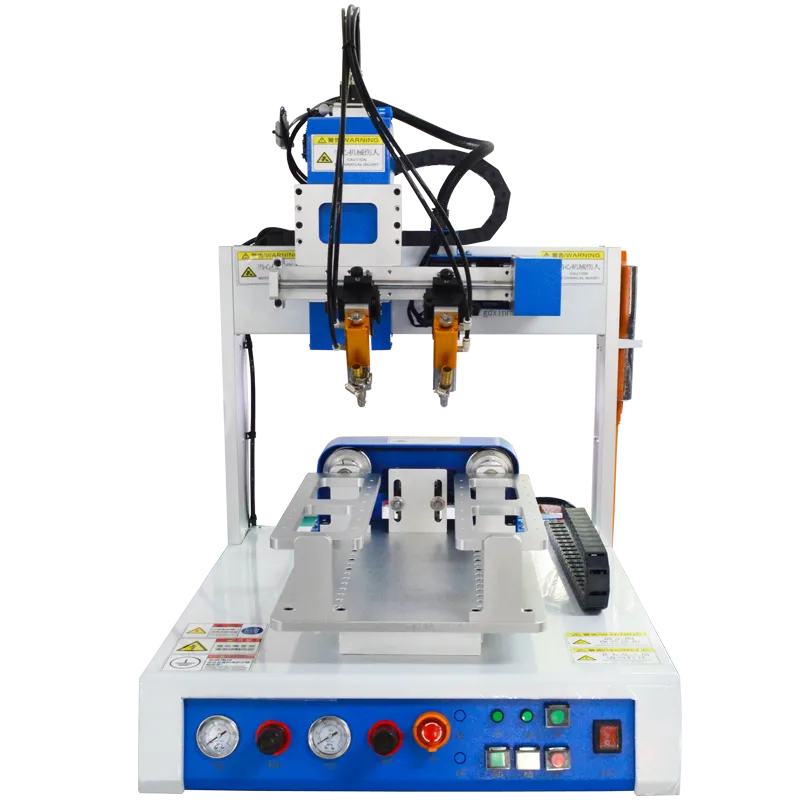

Dual synchronized valves deliver roughly 1.8x higher throughput
-
Four synchronized valves deliver roughly 3.2x higher throughput
-
We offer tailored upgrades for every production scenario. Achieve faster dispensing speeds and stable manufacturing without recurring headaches. Upgrade your production line with our throughput-boosting solutions for simpler, more efficient operations!
ZJ1500S: Closed-Loop Real-Time Compensation Solution for Stable High-Speed Jet Dispensing
Consistent glue jetting performance remains a critical pain point for high-speed production lines. To address this challenge, ZaiJin has launched the all-new ZJ1500S dispensing system, equipped with cutting-edge real-time output compensation and closed-loop control technology. It delivers industry-leading dispensing stability during continuous, high-volume production runs.
At the heart of the ZJ1500S lies its precision real-time compensation mechanism. The system continuously monitors jetting conditions and instantly adjusts glue output via closed-loop regulation, holding shot weight variation within ±2%. This core technology simultaneously lifts production efficiency and drastically reduces defective parts.
Take MiniLED underfill adhesive as a practical example: when dispensing an 800mg shot with a baseline 5% weight deviation, the ZJ1500S elevates the CPK value from 4 (without compensation) to 9 (with active compensation). This massive improvement delivers superior process stability and repeatability under identical operating conditions.
Additional standout advantages of the real-time compensation technology include average lag time under 0.5% and piezoelectric valve output precision within ±1%, further elevating production line accuracy and overall throughput.
